From CAD to Production Sample: Managing Custom Tooling with Indian Manufacturers

## From CAD to Production Sample: Managing Custom Tooling with Indian Manufacturers

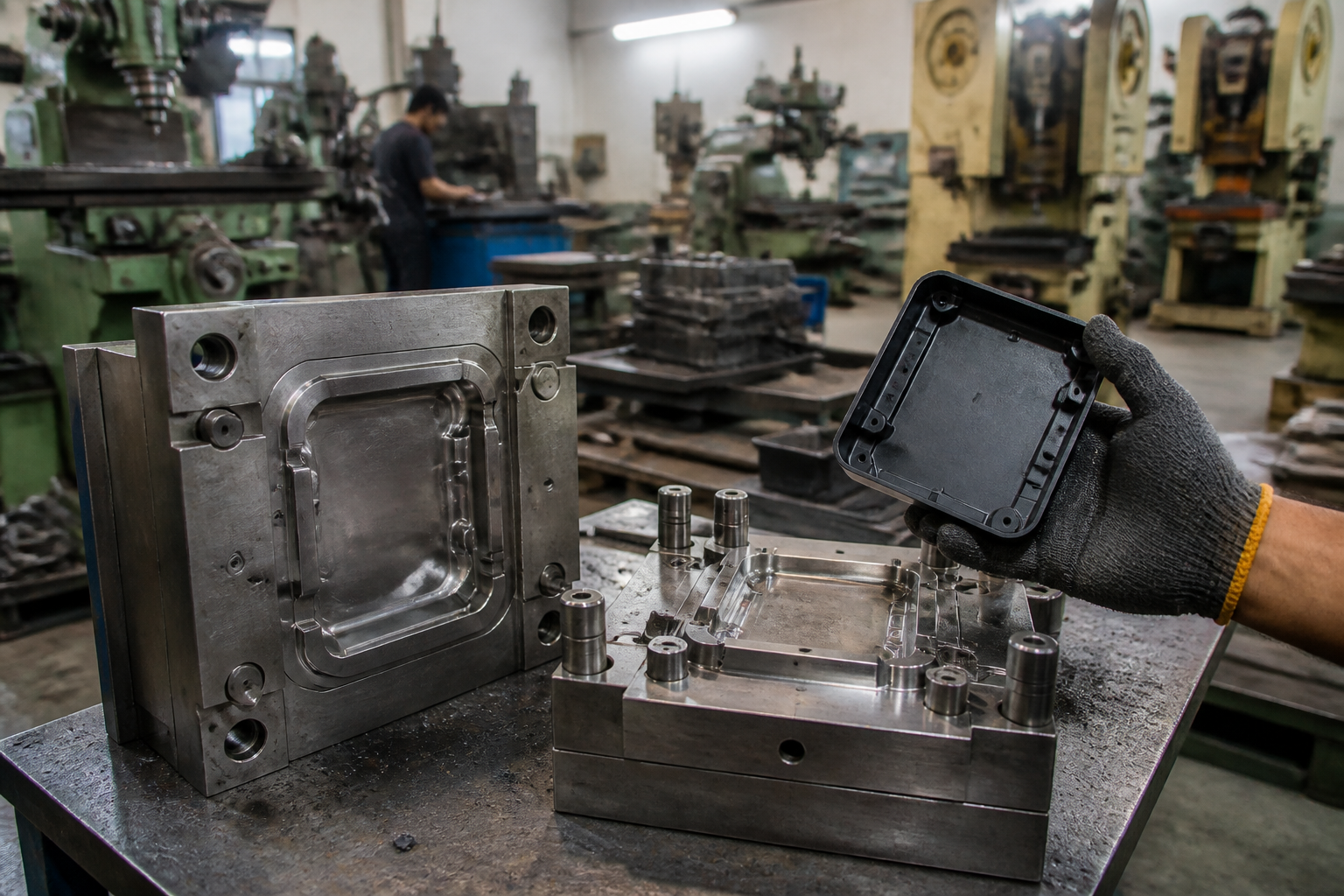

A CAD file is not a product. It is a set of instructions that only becomes real after a workshop in India cuts steel, mills a cavity, sets a jig, or builds a cutting die, then runs a sample you can hold. That gap, from screen to first physical piece, is where custom product sourcing either stays on schedule or quietly falls apart.

If you import into the US, UK, UAE, or other markets, you already know the pattern. The factory agrees to your drawing. Weeks later a sample arrives that is almost right. Wall thickness is off. The logo sits 2 mm too high. The thread does not match your insert. You are then told bulk is already booked. That is avoidable. Managing custom tooling with Indian manufacturers is a process you can run with the same discipline you would apply to a local supplier, provided you have buyer-side representation on the ground and you refuse to skip sample lock-in.

Netyex is a dedicated sourcing partner headquartered in Noida. We act as your procurement office in India, not as a broker who introduces a factory and steps away. This article walks through how you take a design from CAD to an approved production sample, how tooling should be specified and owned, and how quality control and export logistics fit around that sample so wholesale supply does not turn into a rewrite of the brief.

Why tooling sits at the center of India sourcing

India has the workshops, tool rooms, and production capacity to support private label manufacturing across plastics, metal, textiles, home goods, and mixed-material products. The rise of India as a global sourcing hub is not an abstract trend. It is a dense network of clusters: injection molding around Delhi NCR, Pune, and Chennai; brass and metalware in Moradabad; textiles in Tiruppur, Surat, and Panipat; wood and handicrafts in Jodhpur, Jaipur, and Saharanpur.

Tooling is the physical translation of your brand into that network. For injection molded parts it is the mold. For stamped metal it is the progressive die. For bags and textiles it is cutting dies, embroidery frames, and print screens. For furniture and home decor it can be CNC fixtures, jigs, and finishing templates. Until that tool exists and a sample from it is approved, you do not have a production standard. You have a hope.

A managed supply chain India program treats the tool as a controlled asset. You decide who pays for it, who stores it, who may use it, and what happens if you change factories. You also decide when bulk production is allowed to start. That last point matters more than most buyers admit.

Build a technical package factories can actually tool from

Indian tool rooms work from data, not from mood boards. Send a complete package on day one.

Your CAD should travel as a native file plus a neutral format. STEP or IGES for 3D. Dimensioned 2D drawings with tolerances, not just renders. Call out critical-to-quality dimensions, draft angles, wall thickness, rib design, undercuts, and any insert or overmold. If you use GD&T, keep it consistent and explain datum strategy in a short notes sheet. Factories will still ask questions. That is normal. Silence is the risk.

Add a bill of materials with material grades, not generic labels. ABS is not a spec. ABS, UL94 HB, natural, food-contact if required, with a named masterbatch is a spec. For metals, name the alloy and finish. For textiles, name GSM, weave, shrinkage allowance, color standard (Pantone or lab dip), and stitch type. For wood and bamboo, name species, moisture target, and any treatment. Humidity in north Indian summers and the monsoon will move wood if you do not set a moisture range. If you need sustainable materials or certified inputs, put those requirements in the same package, not in a later email.

Include:

• Target market and regulatory path (CPSIA, REACH, food contact, flammability, as applicable)
• Branding method: pad print, hot stamp, deboss, woven label, laser mark
• Packaging intent: retail box, ecommerce mailer, Amazon FBA prep, or export carton only
• Expected annual volume and first PO quantity, because cavity count and tool steel grade depend on both
• Finish standards: gloss level, texture (VDI or Mold-Tech if relevant), color tolerance (Delta E)

Do not send a sketch and ask the factory to make it look premium. Premium is a finish, a tolerance, and a test method. Write those down.

If your line mixes machine-made parts with artisan work, say so. Buyers often pay more for handmade character, and that premium for handmade products only holds when the tooled components fit the hand-finished ones. A hinge, a lid, or a glass insert that does not match the craft piece will kill the SKU.

Supplier verification before you cut steel

Never fund a mold, die, or fixture at a factory you have not verified. Cold contacts and unverified lists are how buyers fund tools that later cannot run, or that sit in a unit that is not even the legal exporter.

Global buyers prefer verified Indian suppliers for a reason. Verification is not a PDF on a website. At Netyex it includes:

• Legal and statutory checks: GST registration, Import Export Code (IEC), business registration, and bank details
• Physical factory confirmation: address validation and on-site presence
• Capacity and capability: machinery, tool room access, workforce, and realistic monthly output
• Export history and references from other international buyers
• Quality management systems and existing certifications
• Financial stability indicators and years in operation

Factory audits go further. Inspectors look at equipment condition, process control, incoming material storage, calibration of gauges, labor conditions, and whether the unit can actually pack and document an export shipment. A video call will not show you a cracked mold base or a missing CMM. In NCR, that often means confirming the tool room is in the same legal unit you contracted, not a job shop two industrial estates away with no export code.

Netyex works exclusively for you, never for the factory. Supplier identities, pricing, and your designs stay confidential. That is buyer-side representation. It is the opposite of a markup layered on a factory quote with the source hidden.

Match the factory to the tool. A home-decor unit that subcontracts every mold to an unnamed tool room is a different risk from a plant with an in-house tool shop and a named toolmaker. Ask who cuts the steel, who owns the EDM machines, and where the tool will live when it is not in the press.

How Indian manufacturers typically move from CAD to first steel

Once the factory is verified and the package is clear, the sequence is straightforward if someone local is watching it.

1. Design for manufacture review. The toolmaker flags undercuts, thin walls, impossible textures, and cost drivers. You accept changes in writing or you reject them. Informal comments on a call are not a change order.
2. Tool design. Core and cavity layout, gate type, ejection, cooling, electrode list, and steel grade (P20, H13, stainless, and so on) should come back as drawings you can comment on. For dies and fixtures, you should see strip layout or workholding design.
3. Commercial terms for the tool. Cost, cavity count, guaranteed shot life, lead time, payment milestones, and ownership. Pay for tooling against milestones, not 100 percent upfront without a design freeze.
4. Tool manufacture. CNC, EDM, fitting, and tryout. Photo and video updates help, but they do not replace a sample in your hands.
5. First samples from the actual tool. T0 or first-off parts are for the factory to debug. You should not treat a raw T0 as your approval sample unless you explicitly agree to.

For products that do not need heavy steel (many textile, leather, and handicraft SKUs), tooling still exists: cutting dies, print screens, embroidery programs, last molds for footwear, jigs for assembly. The same rule applies. Nothing is approved until a physical piece matches the spec.

Sample dispatch from Netyex's verified supplier network typically takes 5 to 10 days after specifications are locked. That covers production of the sample and dispatch by express courier (FedEx, DHL, Aramex, or UPS). For buyers in the US, UK, UAE, or Canada, express delivery usually runs 5 to 8 business days from India. Most custom development projects go through one to three sample rounds. Each revision is documented and taken to the factory by a sourcing specialist who is in direct contact with the unit, so feedback is not lost in translation.

From pre-production sample to golden sample

The pre-production sample is the most important checkpoint in custom product development. It is physical proof that the factory understood your specification, and it is the last practical moment to correct course before bulk production begins.

Review it the way a QC inspector would, not the way a marketer would.

• Measure critical dimensions against the drawing, not against memory
• Check material and finish in the light you will sell in, and against any agreed color standard
• Fit mating parts, including packaging inserts
• Test function: closures, load, hinge cycles, leak, electrical safety if relevant
• Confirm branding position, size, and adhesion
• Weigh the piece and compare it to the quote assumptions, because weight drives freight

Once a sample is reviewed, corrected if needed, and formally approved, it becomes the golden sample: the single physical reference that defines acceptable quality for the rest of the order. Keep one sealed unit in your office and one with the factory, labeled and photographed. Netyex documents that approval before production scheduling begins.

Do not let bulk start on a sample with a small change pending. That is how you get a production run that copies the wrong revision, with no inspection built in.

If you are building a private label line, lock packaging at the same time. Carton markings, barcodes, hang tags, polybag warnings, and FNSKU labels belong in the golden sample set. Changing a label after 5,000 units are packed is not a small change.

Quality control after the tool is approved

An approved sample does not run itself. The tool can wear. Operators can change a process parameter. A substitute resin can appear on a Friday night.

Netyex runs structured checks against the golden sample:

1. Pre-production check. Confirms that raw materials, components, and production setup match the approved specification before manufacturing begins.
2. During-production inspection (DUPRO). Conducted when about 20 to 30 percent of the order is complete. Catches systematic defects while correction is still practical.
3. Pre-shipment inspection (PSI). A third-party inspection when 100 percent of production is complete and at least 80 percent is packed. This is the final quality gate before goods leave the factory.

On-the-ground inspectors pull samples to an agreed AQL, measure against the golden sample, and report with photos and data. You approve shipment or you request rework before goods leave India. That is quality control as a process, not as a hope that the factory usually does a good job.

Buyers can track sample status, revisions, and milestone payments through a dedicated buyer portal. If a discrepancy appears, an internal dispute-resolution team can intervene before it becomes a shipping-day surprise.

Bulk manufacturing typically runs 20 to 45 days after sample approval, depending on category, quantity, and finishing. Anyone promising a full custom tool plus bulk in two weeks is not being honest about Indian production realities. Accurate lead times beat optimistic ones.

Tooling money: ownership, amortization, and quotes you can compare

Mid-range importers get hurt in two ways. They overpay because a broker buried the tool in a unit price. Or they under-specify the tool, then pay again when cavity steel pits after 8,000 shots.

Ask for the tool as a separate line. Then decide how to recover it.

Amortize tooling across a realistic first-year volume when you price products for international markets. If your first PO is 1,000 pieces and the mold costs a serious sum, either raise the first-run price, spread the cost over a contracted annual volume, or simplify the part. Do not hide the number. Your margin will find it later.

Netyex negotiates this as your buyer-side team. You see factory economics without extra layers on the price. You also avoid paying for a tool that legally still belongs to someone else.

Packaging, documents, and export logistics around the sample

The sample is not finished until the shippable unit is finished. Packaging is confirmed against the approved sample before bulk packing begins. For ecommerce sellers that can include Amazon FBA prep. For retail, shelf-ready packs with barcodes and hang tags. For wholesale and hospitality, export cartons with correct packing lists.

Netyex manages the export documentation package, including commercial invoice and packing list, Certificate of Origin where preferential duty applies, phytosanitary certificates for wood and bamboo, product compliance certificates and lab test reports where required, and bill of lading or airway bill. Use an export compliance checklist mindset even if you are the importer. Missing papers at ICD Tughlakabad or a gateway port cost more than the courier that would have prevented them.

Incoterms should be a decision, not a default. FOB vs CIF changes who controls the freight and who carries risk. Sea FCL or LCL for volume, air when the sample-to-launch calendar is tight. Insurance is not optional once a tooled product is on the water.

Your destination mix matters for documentation and duty. Many Indian lines move cleanly into markets covered in top export friendly countries for Indian products, and demand from the US and Europe continues to shape what factories are willing to tool. See the future of Indian exports in the US and Europe if you are planning a 12-month SKU calendar rather than a one-off container.

What on-the-ground representation actually does during tooling

Remote buyers lose days on every revision because comments sit in email, the factory interprets them loosely, and the next sample repeats the same error. A dedicated sourcing specialist in India shortens that loop.

Netyex assigns that specialist to your order. They coordinate each sample round, document revisions, and withhold production scheduling until you formally approve. They are physically present or in direct contact with the factory. That is how custom product sourcing stays aligned across time zones.

Technology helps when it is used for tracking, not as a substitute for plant visits. How technology is changing the export industry is relevant here: portals, photo reports, and shared spec sheets reduce ambiguity. They do not replace a caliper on the golden sample.

You get complete oversight from factory audits through final shipping, multi-stage quality control with transparent reporting, direct access to verified manufacturers, managed export logistics, and a single point of coordination. Netyex's role in bridging Indian suppliers with global buyers is this operating model: one team that works for you on the ground.

If your catalog includes textile products exported from India, the same discipline applies to screens, knives, and sewing jigs. If you work with artisans, the tooled parts still need a locked sample so the craft portion has a consistent interface. Either way, you are not juggling five chat threads and hoping the right revision went to the press.

A practical sequence you can copy

Use this as your internal gate list.

1. Freeze CAD, 2D, BOM, tests, and artwork. No parallel we might change the logo.
2. Complete supplier verification and a factory audit matched to the process.
3. Sign tooling commercial terms: cost, ownership, life, storage, transfer rights.
4. Approve tool design before steel is cut.
5. Review first-off parts for process debug (factory gate).
6. Review pre-production samples (your gate). One to three rounds is normal.
7. Sign the golden sample. Duplicate it. Photograph it. File the report.
8. Confirm packaging, labels, and compliance tests.
9. Release bulk. Pre-production check, DUPRO, then PSI.
10. Clear documents and ship under the Incoterm you actually chose.

Skip a gate and you will pay for it in air freight or in a customer return rate that wipes the savings you came to India for.

FAQ

How long does custom tooling take with Indian manufacturers?

It depends on the process. A simple cutting die or screen can be ready in days. A multi-cavity injection mold or a progressive metal die can take several weeks for design, steel cutting, and tryout, then 5 to 10 days for sample dispatch plus 5 to 8 business days in transit to the US, UK, UAE, or Canada. After you approve the golden sample, bulk production commonly runs 20 to 45 days. Ask for a dated plan, not a single optimistic number.

Do I need to visit India to approve a production sample?

No, but someone you trust should see the factory and the tool. You can approve samples received by courier if measurements, photos, and material certs are complete. Netyex provides that on-the-ground presence so you are not flying in for every revision.

Who should own the mold or die?

You should, after you have paid for it. Put ownership, storage, maintenance, and transfer rights in the purchase terms. If the factory owns the tool, you are renting your own product.

How many sample rounds should I budget?

Plan for one to three. True custom work rarely locks on the first piece. Budget courier cost and a specialist's time for each round. Stopping at a close enough sample is how defects get cloned across a container.

Can I start wholesale supply from a prototype that was 3D printed?

Not if the production process is molding, stamping, or die-cutting. Additive prototypes check form. They do not prove shrinkage, gate marks, grain, or tool finish. Your production sample must come from the production tool.

What if the bulk shipment does not match the golden sample?

Stop the shipment at PSI. Netyex inspectors report against the approved sample and AQL. Rework or sort in India. Do not bargain with a discrepancy after the goods are on the water.

Does Netyex work for factories as well as buyers?

No. Netyex works exclusively for buyers. That keeps pricing, supplier identity, and your CAD confidential, and it removes the incentive to push a factory that is convenient for someone else.

How do payments usually work on tooled orders?

Tooling is milestone-based. Production often follows a deposit and a balance against inspection or documents. Use clear milestones in your buyer portal rather than informal transfers. For broader context on payment rails used in India trade, see trade finance and payment solutions.

Move from CAD to an approved sample without losing the plot

You do not need a larger team in New York, London, or Dubai to run this well. You need a complete technical package, a verified factory, written tooling terms, a golden sample, and inspections that happen in India while you can still say no.

Netyex handles your entire Indian supply chain from factory audits to final shipping, so global procurement stays controlled rather than stressful. If you have CAD ready, or even a tight brief that still needs design-for-manufacture work, talk to us. We will put a dedicated sourcing specialist on the order, manage sample rounds until you approve, and only then schedule bulk, quality control, and export logistics.

Bring the drawing. We will help you leave with a production sample you can stand behind.
