## Vacuum Resin Impregnation in Brazilian Exotic Granites: Fixing Micro-Fissures Without Slab Discoloration

A polished exotic slab can look calm on a factory table and still fail you six months after install. Gray threads show up in raking light. A white field goes patchy. Resin lines yellow along a window wall. None of that means the geology was junk. It usually means the micro-fissures were filled with the wrong resin, the vacuum step never pulled that resin deep enough, or nobody checked the face before the crate was closed.

Vacuum resin impregnation is the plant process that fills those fine cracks without leaving a plastic skin on the polish. Done well, you get a stronger slab, a continuous gloss, and the stone's own color. Done poorly, you pay for a repair that becomes the defect.

If you wholesale slabs, vanities, or cut-to-size tops into the US, UK, UAE, or other markets, treat resin stability as a buying rule, not a factory courtesy. The same rule applies when the block is a Brazilian exotic and when the block is open-grained white granite processed in India.

Why exotic granite fissures before it reaches the yard

Natural stone carries internal fissures, micro-fractures, and pores that were already in the rock, or that opened during sawing. dynamicstonetools.com describes resin treatment as a manufacturing step at the processing facility, before the slab reaches a yard or a fabricator. Those internal weaknesses break slabs in transit, on the bridge saw, and during install. The resin is there to stop that break, not to fake a perfect quarry.

Brazilian processors treat filler and resin as routine practice, not as a confession of poor quality. slabwise.com notes that the treatment fills micro-pores, supports color, and improves polish. Hairline resin fills on the back are normal. Wide fills are the ones that signal structural risk. If a repair is broad enough to read as a glued crack, price it as a structural question, not as a cosmetic one.

A naming caution belongs here. Stones sold inside an exotic granite program are not all granite, and the invoice name does not always match the mineralogy. Super White and Fantasy Brown are commonly resin-treated because the stone is heavily fissured and the internal structure is weak. Geologically they are dolomitic marbles, often described in the trade as hard marble, not true quartzites. Yards and catalogs still mislabel them. Van Gogh and Crystal White travel in the same commercial exotic group and are also commonly resin-treated where fissures run through the block, so do not let a quartzite tag on the bundle decide the resin spec for you. Some Brazilian granites with heavy micro-fracturing are treated too. Dense, uniform granites such as Absolute Black or a standard Black Galaxy usually do not need a flooded face. If you spec resin on every slab without looking at the stone, you add cost and a discoloration risk the block never required.

Patagonia quartzite is a useful parallel, even when your order says granite. kaunited.com describes vacuum resination that injects low-viscosity, UV-stable resin into natural fissures and crystal boundaries. The goals are the same ones you want on a fissured granite: a stable slab, a better polish, and less water entry. Hardness does not cancel the need for that step. Quartzite can sit above steel on the Mohs scale and still open along crystal boundaries under a rough saw.

How the vacuum step works

The line is physical, not mysterious. You can audit it on a factory walk if you know the sequence.

The slab is dried first. Moisture left in the stone stops resin from bonding, and a weak bond is where haze and later lift start. Resin, usually an epoxy or a cheaper polyester, is spread across the face. The slab is not dunked in a tank. applyitalia.com describes systems that spread resin on the granite surface, then use vacuum so the resin penetrates deeper into fine cracks. That deeper fill is what restores the slab and supports the polish. Cracks that stay saturated also block moisture coming up from the laying bed, which matters once the slab is set on a wet mortar or a damp substrate.

mmgalleri.com walks through the same sequence on resined marble, and the mechanics transfer to granite and to true quartzite. Vacuum draws air out of the fissures. Resin is pulled inside. Cure often uses gentle heat. The slab is then calibrated and polished. Polishing removes resin from the surface. What remains should sit only in cracks and pores.

That last point is the discoloration argument in one sentence. A face film is not a finish. It is a coating that can yellow, scratch, and read as plastic once an edge is ripped. Vacuum depth plus a full polish is how you fill the crack and still show stone. If the line rushes the polish to hit a sailing date, the film stays, and you inherit the color problem.

After cure, many plants bond a fiberglass mesh to the back with epoxy. dynamicstonetools.com treats that mesh as structural backup and as a visible sign the slab was treated. Absence of mesh does not prove the face was left raw. Vacuum impregnation on the finish side can happen without a mesh back, especially when the plant only treats the upper face.

stonetrades.com makes a fabrication point worth copying into your handling notes. Epoxy fills along vein lines add strength, and the backing should stay intact until fabrication is finished. Peeling mesh in the yard to check the stone is how you create the break you were trying to avoid. Tell your warehouse the same thing you tell the plant: mesh stays on until the cut is done.

Where slab color actually goes wrong

Resin is not invisible by magic. Color holds when the fill matches the stone, stays stable in light and heat, and never forms a skin. These are the failures that show up after a container looks fine at the gate.

UV yellowing along fills. Lines that were hard to see under factory lamps turn amber in a sunlit kitchen or on cladding. A brochure line about UV resistance is not a result. You want color change measured by an accredited lab, not a sentence in a sales sheet. Ask for the number, the method, and the exposure, then file it with the golden sample.

Patchy white fields. Open-grain whites take more resin than a dense black. If the fill is uneven, the field looks cloudy in one zone and glassy in another. That is an application problem, not a vein. It shows up hardest on Brazilian whites and on Indian white granite that was flooded and then polished in a hurry.

Heat haze. The seam iron a fabricator uses, or a hot pan zone, can haze a cheap fill. A kitchen top is not cladding. Heat resistance has to match the end use, or you will argue about a stain that is actually softened resin. If the order is vanity only, say so. Do not let a cladding resin ride into a cooktop program.

Plastic skin on the edge. If polish did not clear the face film, a cut edge shows a shiny rind. Buyers read that as repaired stone, even when the body of the slab is sound. Rip a sample edge during inspection. If you only look at the face, you miss the skin.

Tint that misses the ground. Resin can be clear or tinted to match the stone, and pits can be filled in the same pass. A tint that is a shade too gray becomes a spider web under low-angle light. A tint that is too warm looks like rust once the slab is outdoors. Clear resin on a warm ground can also flash gray. Match the tint to the block, not to a catalog photo from last season.

Wide cosmetic repairs. slabwise.com flags color-matched epoxy fills larger than a quarter as a possible crack repair, not a routine pore fill. Excessive unfilled pinholes mean the resin never went in. Uneven polish across the face means the application itself was inconsistent. Any one of those is a reason to stop the bundle, not a note for the next container.

Polyester is the cheaper option on many lines. Epoxy generally holds up better where UV and heat matter, which is why serious exotic programs specify a UV-stable, low-viscosity epoxy and name the system in the order. Do not accept the words resin treated as a complete description. Surface-filled and fully vacuum-treated are different products. One slick coat on a wet slab is a third product, and it is the one that hazes.

What you fill, and what you leave alone

Plant impregnation and shop filling are not the same job. The plant stabilizes the slab. The fabricator decides whether a remaining fissure belongs in the finished top. If you blur those jobs, you either over-fill a character stone or ship a crack into a sink rail.

dynamicstonetools.net gives a practical split. Fill when the fissure sits in a high-visibility area, is wide enough to trap debris or cleaner, runs near a stress point such as a sink cutout, or when the client wants it addressed before delivery. Leave it when the fissure is narrow and only cosmetic, will be trimmed or covered, or when the client wants the natural character left visible. An extremely fine fissure can look worse once filled, because the fill line becomes the thing the eye finds.

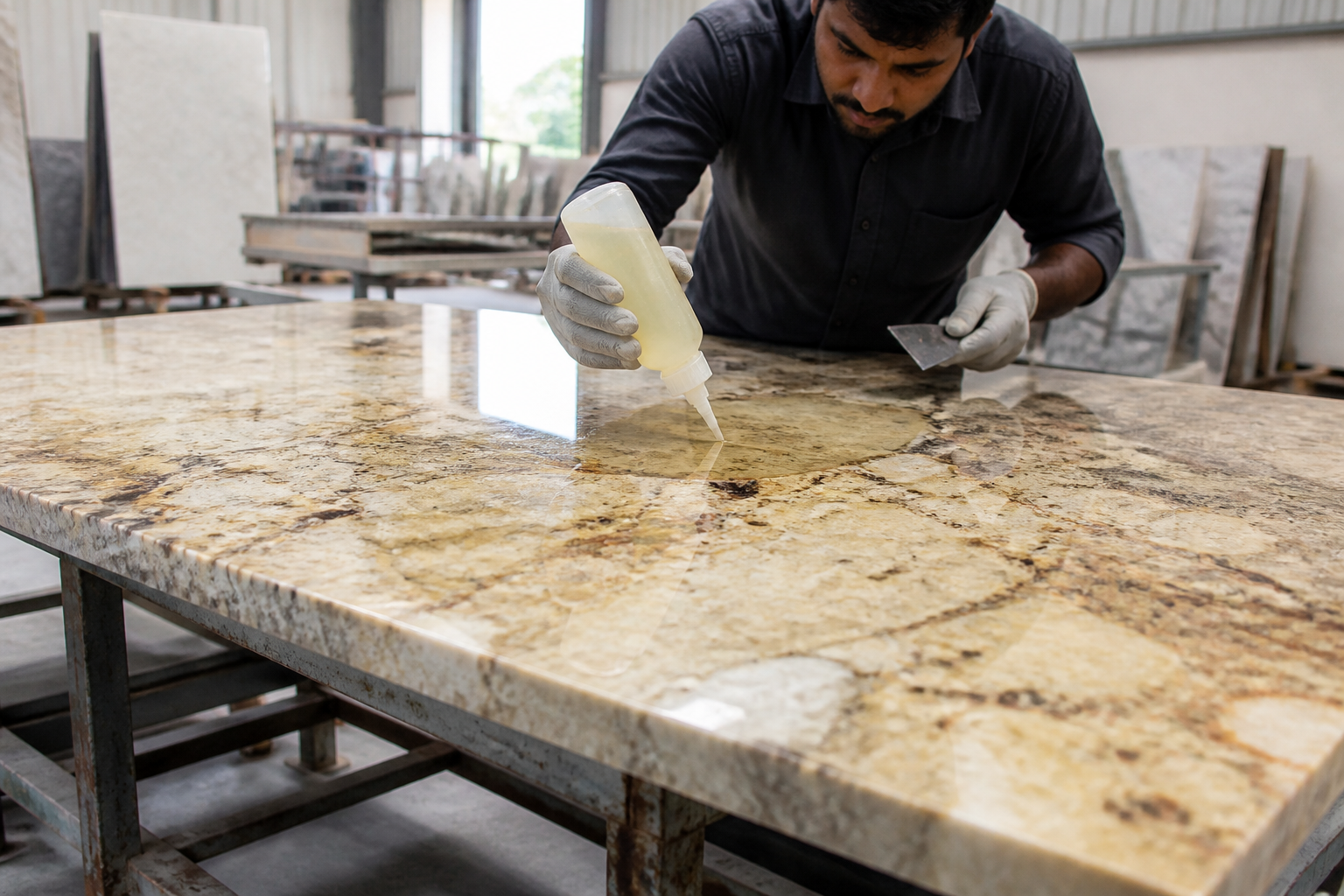

For pits that open during fabrication, the shop sequence is stabilizer first, cosmetic fill second. slabwise.com describes consolidants that wick into micro-fractures around a void and pin the surrounding crystals before the color fill goes on top. That is a fabricator step. It does not replace a vacuum line that should have been run at the plant. Your job as the importer is to stop structural problems upstream. A slab that needs wide crack fills to survive the bridge saw should not be in a wholesale bundle.

Write that rule into the client conversation too. Some hospitality buyers want every line gone. Some want the geology visible. Either choice is fine if it is made before cutting. A surprise fill, or a surprise open fissure, is what generates the claim.

A spec that keeps color and still uses the stone

Write the resin rules before you approve a block range. A useful buyer spec covers origin, finish, thickness, absorption limit, resin system, and mesh yes or no. Then you inspect against that spec, not against a chat photo taken under a roof light.

The pass rules below are practical wholesale checks, not a law of geology. The 85 GU gloss floor is a working bar for polished faces on a volume program. Adjust it if your finish is leathered or honed, and say so in the order.

Thickness notes from Brazilian supply practice: hold 2 cm (3/4 inch) or 3 cm (1 1/4 inch) across the full surface. Mesh-backed slabs are common on thinner stock and on exotics. That is normal. It is not a defect, and it is not proof the face color will stay stable.

Raking light is the check overhead lamps fail. Fills that vanish under a factory roof often show as gray threads, spider webs, or glossy rivers when light skims the surface. Mark every cluster. Photograph both faces and the edges. If your program promised a quiet face, hidden fills are a reject, not a surprise for the fabricator.

Gloss on day one is not gloss after aging. Ask for gloss retention after the aging protocol you care about, not only the number on the polishing line. A 16-head automatic line is a useful sign that a plant can hold volume polish. A shed with one bridge saw and a lot of hand grinding rarely holds gloss or thickness on a wholesale program. Multi-wire gang saws, bridge saws, and 5-axis CNC capacity matter if you need cut-to-size or shaped work. mqmarble.com points to the same production logic on hard quartzite: controlled cutting plus vacuum-sealed resin, because hard stone still micro-fractures under crude tooling.

A defect map that stays in your inbox is useless. The map has to travel with the bundle. Photograph the face in raking light, the back with mesh edges visible, and at least one long edge where fill meets stone. Put calipers in the frame at several points. If a fill cluster was approved, the photo should show that cluster, not a clean corner chosen for the catalog.

Indian white granite fails the same way

You cannot separate this topic from India if your book includes both origins. White granite processed in India often carries more open grain and more natural micro-fissures than the dense blacks buyers use as a comparison. Those denser stones have less open grain, so there is less reason to flood the face.

Do not file every Indian black under one state. Karnataka does produce notable dense blacks, including material from the Chamarajanagar and Kollegal belt that trade often sells as Absolute Black. Black Galaxy is a different stone. It is quarried at Chimakurthy, in Prakasam district, Andhra Pradesh, not in Karnataka. If your comparison sample is Galaxy and your spec says Karnataka black, you are standing in the wrong shed and judging the wrong grain. Either dense black can skip a heavy face flood when the structure is tight. Neither fact lets you skip a look at the block in front of you.

Processors of open white granite flood voids with epoxy, mesh many backs, then polish to a high gloss. You see a quiet face. You do not see how much resin is holding that face together, or how it will behave once it is cut, sealed, heated, or left in the sun.

Most export white granite is resin-treated. Done well, resin raises polish, cuts breakage in transit, and makes a fissured block usable. Done poorly, you get the same list you already know from Brazilian exotics: lines that yellow in UV, patchy fields, mesh that lifts after cutting, fills that haze under fabrication heat, and edges that show a plastic skin.

That is why porosity and resin-line stability decide whether a container is stock you can stand behind. A polished sample is not a weathering test. Pull the sample from the block range you intend to buy, not from a show piece that never enters the crate.

How buyer-side India sourcing stops the surprise

Directories and a chat photo will not tell you whether the vacuum pulled resin into the fissure or only slicked the face. Uninspected production runs are how a golden sample and the shipped bundle become two different stones. Middleman price inflation hides inside that gap. You pay a handling layer and still do not get a factory walk, a named resin system, or a crate that matches the packing list.

A supply chain India buyers can stand behind starts at the vacuum line, not at the port. Netyex works as a dedicated sourcing partner in India, on the buyer side. Supplier verification, quality control, and export logistics sit in one process. You are not left to invent a freight file after someone introduces a shed. That is India sourcing with someone on the ground, not a list of unverified contacts and a hopeful week count.

The sequence we run on stone, and on other wholesale supply, is plain:

1. Spec the material: origin, finish, thickness, absorption limit, resin rules, mesh yes or no.
2. Pull samples from the actual block range you intend to buy.
3. Approve in writing. Photograph the sample under the light you agreed. Keep a retained piece.
4. Lock that piece as the golden sample for production.
5. Run bulk only against that sample and the lab data.
6. Inspect before shipment, then load the stone that passed.

Final inspection should pull a statistically useful sample. Recognized sampling such as ANSI/ASQ Z1.4 is a better rule than glancing at the top slab. For granite, that inspection covers thickness, flatness, and gloss; tone batch identity; resin fill maps versus what you approved; chip, rust, and pit counts; mesh adhesion; crate quality, edge protection, and labeling; and quantity against the packing list.

Packing is part of color control. A chipped edge forces a recut that exposes fill. Confirm ISPM-15 wooden crating with visible fumigation marks, face protection suited to polished material, container weights that respect destination road limits in the UK and in several US states, cargo insurance active before the vessel leaves, and export documents that match the commercial invoice, packing list, and bill of lading. Misleading lead time promises usually collapse at this step, when fumigation, inspection, and a real sailing date replace a hopeful week count. We will not dress up a date the line cannot hold.

If you also need vanities, fittings, or a coordinated home line, the same oversight covers custom product sourcing and private label manufacturing. Stone is unforgiving, but a mismatched sink line or a poorly packed accessory crate can sink the job just as fast. How Netyex checks authenticity is the same habit: the goods that passed inspection are the goods that ship.

For market context, US demand for Indian home products is covered in our note on Indian products in the American market, and the wider pull for decor is in why Indian home decor is rising. Pricing the landed program, resin risk included, belongs with how to price products for international markets. Compliance paperwork is not optional once the stone crosses a border. Start with how to ensure compliance when buying Indian products.

Secured trading services keep payment and inspection in one lane, so you are not releasing funds against an unopened crate. If you want a starting map rather than a cold directory, use the product directory and then verify on the ground. Read about Netyex if you want the buyer-side model in short form. Export destinations and paperwork rhythm are outlined in export-friendly countries for Indian products and fast-growing export markets.

The work is a factory walk, a written resin rule, a retained sample, and a crate that matches the packing list. We handle that buyer-side oversight so your procurement does not depend on an unverified contact and a bright photo.

FAQ

Does resin treatment mean the granite is low quality?

No. On fissured Brazilian granites and on many exotics, resin treatment is standard plant practice. It fills micro-pores, supports the polish, and cuts breakage. Quality problems start with wide structural fills, unfilled pinholes, uneven gloss, mesh that lifts, and resin that yellows or hazes. Hairline fills are normal. A plastic skin on the edge is not.

Commercial names add a second trap. Super White and Fantasy Brown are often filed as quartzite, yet they are dolomitic marbles. They are commonly resin-treated because they fissure, not because a quartzite label makes resin mandatory. Ask what the stone actually is, then ask what the line did to it.

Will vacuum impregnation change the color of the slab?

It should not, if the resin is clear or correctly tinted, UV-stable, and polished off the face. Color shifts come from a surface film, a bad tint, polyester that yellows, moisture trapped before cure, or heat the resin was never rated for. Ask whether the face is surface-filled or fully vacuum-treated, and ask for measured color change, not a slogan.

How do I know a slab was vacuum-treated if there is no mesh?

Mesh on the back is a strong sign, especially on thinner stock and exotics. Some slabs are vacuum-impregnated on the finish side without mesh. The only reliable check is the process record plus your own raking-light map, edge photos, and a named resin system. Do not guess from the polish alone. A high gloss can hide a surface film until the first cut.

Should every granite be resin treated?

No. Dense, tight-grained blacks often need little or no face flood. Absolute Black from Karnataka belts such as Chamarajanagar and Kollegal is one example. Black Galaxy from Chimakurthy in Andhra Pradesh is another. Open whites, heavily micro-fractured Brazilian granites, and fissured marbles sold under exotic names usually do need a controlled vacuum fill. Spec the stone in front of you. A blanket resin line on every block adds cost and a yellowing risk you did not need.

What fails a bundle even if the face looks quiet in the yard?

Wide fills larger than a quarter that were not approved as crack repair, unfilled pinholes, gloss that swings across the slab, mesh lifting at the edges, a plastic rind on a ripped edge, and tone lots mixed in one crate. Add a resin system you cannot name, or a lab sheet that only says UV resistant. Any of those should stop the load. A pretty overhead photo is not quality control.

How does Netyex keep India sourcing from turning into a surprise crate?

We stay on the buyer side in India. Supplier verification, a written spec, a retained golden sample, in-process quality control, and pre-shipment inspection sit in one file with export logistics. You see the vacuum claim against the slab that will actually ship. We do not hand you an unverified directory, inflate the price with an unnamed middle layer, or promise a lead time the line cannot hit. If the stone fails, it does not get a hopeful sailing date.
