Ultrasonic Pulse Velocity Testing for Sourced Stone Blocks: Preventing Internal Crack Surprises at the Gangsaw

## Ultrasonic pulse velocity testing for sourced stone blocks

You can walk a Rajasthan yard, like the colour, sign off a block, and still lose the lot the moment a gangsaw opens it. Internal micro-fissures do not always show on a weathered face. They show as a plane that splits a slab, a resin map you never approved, or a crate of material that will not take structural load.

That is why ultrasonic pulse velocity (UPV) testing belongs in India sourcing for marble and granite, not as a lab curiosity after the fact. It is a non-destructive check you run while the stone is still a block. You find hidden fractures, density changes, and voids before you spend saw time, resin, polish, packing, and freight on material that may never reach the grade you sold.

If you import stone for wholesale supply, hospitality projects, or a private label manufacturing program, the gangsaw is a late place to discover a crack. This article explains how UPV works, what it can and cannot tell you, and how to fold it into supplier verification, quality control, and export logistics so you are not guessing from catalogue photos.

Why internal cracks show up at the gangsaw, not in the yard

Extracting a block already costs equipment time, labour, and fuel. If that block holds hidden fractures or inconsistent mineral composition, every later step spends money on material that may never reach its intended grade. usmarble.com puts the economics plainly: the pit is the cheapest place to reject a bad block.

A gangsaw does not create every crack you see. It reveals them. The blade follows the path of least resistance. A tension zone from blasting, a closed micro-fissure, or a density change that looked like sound stone on the face can open into a plane you cannot sell as A-grade. Wire-cut origin usually treats the block more gently than blasting, but origin alone is not a test. You still need a method that looks inside.

Serious quarries use non-destructive testing before a block leaves the pit. Ultrasonic pulse velocity, ground-penetrating radar, and related methods exist specifically to find hidden fractures, density changes, and voids without destroying the stone. You should treat that as part of custom product sourcing, not as an optional extra the factory mentions if you ask twice.

The true cost of sourcing products from India is not the yard price of the block. It is the block plus sawing, filling, polishing, crating, freight, and the claim you handle if a hairline opens in a US kitchen or a UAE lobby. Catching that hairline in Rajasthan is cheaper than catching it at destination.

How ultrasonic pulse velocity testing works on stone

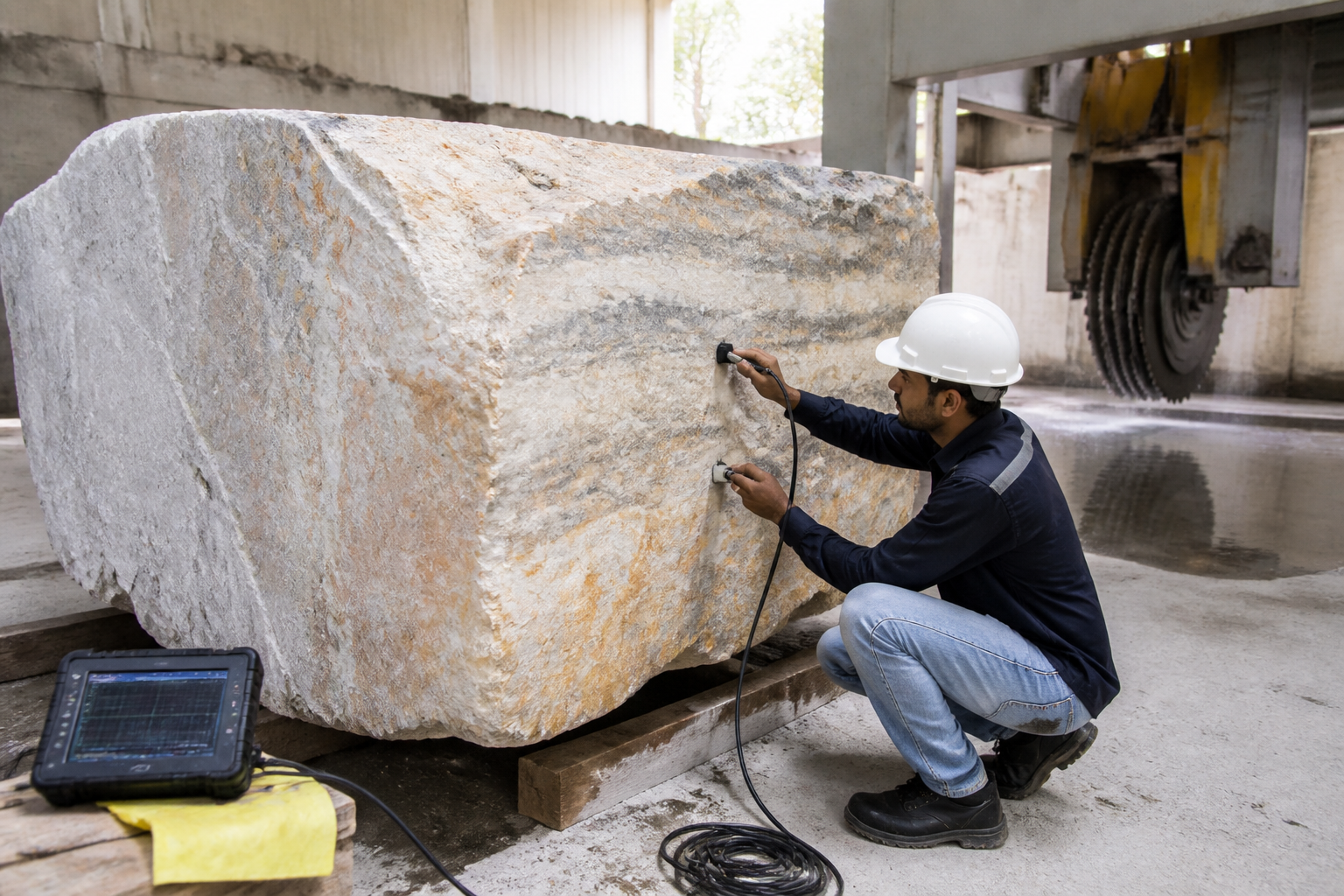

Ultrasonic testing sends high-frequency sound through the stone. Waves travel at predictable speeds in sound marble and granite. When they hit voids, cracks, or density changes, they slow, scatter, or reflect. Inspectors use that change to locate micro-cracks that freeze-thaw cycles or structural loads would later open, a point covered in quarry NDT overviews from usmarble.com.

The calculation is straightforward. You measure the time a pulse takes to travel between two points. Velocity equals path length divided by transit time. Intact rock transmits sound faster than fractured or weathered rock. That is why UPV is a practical index of rock quality, not only a laboratory trick. globallabindia.com notes that measuring P-wave (and, where equipped, S-wave) transit times through a prepared core yields velocities that, combined with density, give the dynamic Young's modulus and Poisson's ratio, and correlate with strength, weathering grade, and micro-crack density.

Indian lab practice follows the ISRM Suggested Method for laboratory sonic velocity. IS 13311 Part 1 is the concrete analogue many technicians already know. In the field, you will not always have a prepared core. You still use the same physics: calibrated transducers, controlled coupling, and a recorded path. rtulgroup.com describes the same core idea for UPV in general. Transit time between points gives you insight into density, homogeneity, and defects such as cracks, voids, or poor bonding.

Frequency matters more than many buyers realise. Research on soft stone published via ndt.net found that load application had little influence on UPV until cracking began, with velocity reductions under 10 percent before that point. Once cracks opened, behaviour changed with frequency. A 1 MHz signal behaved like an on/off indicator in the presence of opened cracks. Lower frequencies around 120 kHz and 55 kHz still travelled, but they recorded reduced velocities tied to damage rather than to the intact material. The practical takeaway for you is simple. Use more than one frequency when the lot is valuable. A high frequency can flag whether the stone is already damaged. Lower frequencies help you characterise how bad the damage is.

UPV is not magic. Coupling gel, surface roughness, moisture, and operator path choice all affect the number. A single ping on one face is not a block certificate. A grid of readings, compared against a sound reference from the same quarry bench, is what you want in the file.

What UPV finds, and what still needs your eyes

UPV is strong at internal discontinuities you cannot see. It is weaker at telling you whether a faint colour vein will bother a designer, or whether a resin fill will yellow under a certain finish. You still walk the face. You still look at the sawn slab under angled light.

Treat the methods as a stack:

• Visual grading for colour, movement, pits, and stylolite.
• Origin notes: wire-cut versus blasting, bench position, tension zones.
• UPV as a baseline for hidden fractures and density change.
• Ground-penetrating radar where fractures are suspected or resin injection is planned.
• Gangsaw witness on the first passes of an approved lot.
• Slab-back inspection under LED before resin.
• Post-polish and crate checks, especially at edges.

Exporters who take gangsaw slabs seriously already inspect for dimensional accuracy, surface cracks, pits, resin defects, edge calibration, colour consistency within lots, and structural stability for transport and installation. aravalimarbles.com sets that out as a commercial baseline, not as a luxury add-on. Your spec should demand the same, in writing, against named blocks.

If resin is part of the program, UPV before filling tells you whether you are buying stone or buying a repair. Vacuum cycle data after filling tells you whether the repair was actually done. A glossy face after polish can hide a mesh-backed weakness you will meet again at fabrication.

A field sequence you can require before the gangsaw

You do not need a research lab in the pit. You need a repeatable sequence, recorded against block tags, while rejection is still cheap.

1. Confirm quarry identity, block tags, and extraction method. No anonymous mixed-lot blocks for graded orders.
2. Walk the face or the yard with the grader. Note tension zones and blasting versus wire-cut origin.
3. Run or review NDT on candidate blocks. Use UPV as a baseline, and GPR where fractures are suspected or resin injection is planned.
4. Accept, downgrade, or reject while the stone is still a block.
5. Witness the first gangsaw passes on the approved lot. Stop the run if new planes open.
6. Inspect slab backs under angled LED before resin. Mark hairlines.
7. If resin is specified, record vacuum cycle data and, where the value of the lot justifies it, a post-fill check.
8. Recheck after polish and again at crating. Micro-fissures that survived the saw often show at edges in the crate.

That sequence is how you keep quality control attached to the actual lot, not to a forwarded photo. It also protects typical lead times. A rejected block in the yard costs days. A rejected container at destination costs a season, and it is one of the common reasons production programs slip once stone is already sawn, packed, and booked.

Spec the test the way you spec thickness

Buyers who only write "good quality marble, no cracks" get whatever the yard wants to ship. Write the test into the purchase order the same way you write thickness and finish.

A usable stone spec for international importers usually includes:

• Origin quarry and commercial name, not a catalogue nickname.
• Block range or bench, with tags you can photograph.
• Finish, thickness, and tolerance.
• Absorption limit and whether mesh is allowed.
• Resin rules: none, limited fill, or full face, with vacuum documentation if fill is allowed.
• NDT: UPV required on candidate blocks, with frequency band and a simple pass, review, or reject rule.
• Sampling at slab stage against a written AQL, using a recognised plan such as ANSI/ASQ Z1.4.
• Packing: ISPM-15 certified timber, edge protection for polished material, moisture protection, and labels that match the packing list.

Pull samples from the actual block range you intend to buy. Approve in writing. Photograph the sample under agreed light. Keep a retained piece. Lock that piece as the golden sample for production. Why pre-production samples matter when sourcing from India is the same logic, applied to stone: bulk only runs against the sample and the lab data, not against memory.

If you are building a line for interior designers or hospitality, the sample is also how you scale bespoke work without letting every project become a new guess. That is the same discipline described for custom product sourcing in India for interior designers. Colour and movement still matter. Structure has to pass first.

For brands that private label a stone collection, the golden sample plus UPV records become part of the product file. You are not only buying slabs. You are buying a repeatable claim you can stand behind in the US, UK, UAE, and other destination markets. The same file helps e-commerce brands build a product line from India without resetting quality rules every season.

Where laboratory UPV sits next to quarry UPV

Field UPV on a block is a screening tool. Laboratory sonic velocity on cores is a characterisation tool. You may need both.

On the quarry or factory floor, you are asking a yes, no, or downgrade question. Is this block sound enough to saw for this order? In a lab, you may need Vp and Vs, dynamic moduli, and a dynamic-to-static ratio that a designer can use in a fractured rock mass. globallabindia.com describes reporting transit times with calibrated transducers under controlled coupling and axial seating pressure, then pairing those results with static modulus testing.

If your order is decorative wall cladding with no structural claim, a documented field grid plus gangsaw witness may be enough. If the stone will take load, span, or freeze-thaw, send cores. Schedule lab testing in parallel with sampling, not after the vessel is booked. The same holds for product compliance testing when destination rules, slip resistance, or absorption limits sit next to the structural check.

Do not wait for a destination complaint to discover that "sound block" was a sales phrase. Ask for the velocity readings, the path sketch, and the operator name. If a supplier cannot produce that file, you do not have NDT. You have a promise.

Gangsaw control after the block passes

A clean UPV result is permission to saw, not permission to stop watching.

Stay for the first gangsaw passes on the approved lot. If new planes open, stop. That is cheaper than finishing a run you will later argue about. After sawing, inspect slab backs under angled LED before resin. Hairlines that were closed in the block often print as faint lines on the reverse. Mark them. Decide, in writing, whether they are within the resin rule or whether the slab drops a grade.

During production, you want the same habit you would use on any other India order: someone on your side is looking at the line, not waiting for a WhatsApp album. A during production inspection on stone should cover thickness, flatness, tone batch identity, resin fill versus what you approved, chip and pit counts, mesh adhesion if used, and whether the sawn lot still matches the golden sample.

You should also be able to track production status from Indian factories against the tagged blocks you approved. If the factory swaps in a mixed lot because the original bench ran short, UPV on the first blocks does not protect you. The test follows the stone, not the order number.

After polish, check again. After crating, check edges. Micro-fissures that survived the saw often show there. Packing specs, moisture protection, and document sets have to match the lot you actually approved. ISPM-15 certified wooden crating, visible fumigation marks, edge and face protection for polished material, container weight allocation for destination road limits, and cargo insurance that is active before the vessel leaves are part of the same job as the NDT file.

Buyer-side representation, not a forwarded catalogue

Stone programs fail in predictable ways. Unverified contacts. Uninspected production runs. Mixed lots sold under a famous name. Middleman markups that hide a weaker bench. Lead times that assume every block will saw clean.

Netyex is a dedicated sourcing partner and procurement office in India for international importers, wholesalers, retailers, and brands. We work on your side of the table. Supplier verification is done against the actual producer, not against a forwarded catalogue. Quality control is written into the job, including the unglamorous work of turning slabs and arguing over a hairline someone hoped you would not see. Export logistics are coordinated from that same thread, so packing specs, moisture protection, and document sets match the lot you approved.

You get on-the-ground people who can attend quarry selection, factory audits, and loading. That is how we run the supply chain India for stone and for other categories: named factory, named block range, a price you can audit, and checks you can see. If you need cut-to-size or a shaped program, we treat that as custom product development, not as a last-minute instruction to a shed that only has a bridge saw and hand grinding.

We stay with you from quarry identity through gangsaw witness, pre-shipment inspection, and shipping. You are not introduced to a factory and then left to invent a freight file. For US, UK, UAE, and other global buyers, that buyer-side oversight is the difference between a stone lot you can sell and a stone lot you have to explain.

FAQ

What is ultrasonic pulse velocity testing on a sourced stone block?

It is a non-destructive test that times high-frequency sound through marble or granite. Intact stone transmits the pulse at a predictable speed. Cracks, voids, and density changes slow, scatter, or reflect the wave. You use the velocity pattern to accept, downgrade, or reject the block before the gangsaw.

Can UPV replace visual grading and slab inspection?

No. UPV finds internal problems your eye misses. It does not grade colour, movement, or finish. You still walk the face, witness early saw passes, inspect slab backs under angled light, and recheck after polish and crating.

Should you test at the quarry, the factory, or both?

Test candidate blocks before they leave the pit or the yard whenever you can. That is the cheapest reject point. Re-check if the block is moved, recut, or held long enough for new handling damage. Witness the gangsaw even after a clean UPV result.

Which frequency should you ask for?

Ask for more than one when the lot value justifies it. Higher frequencies, around 1 MHz in published stone work, can act as a clear damaged or not damaged signal on opened cracks. Lower frequencies still travel through damaged stone and help you judge how severe the damage is. Record the frequency with the velocity, or the number is hard to interpret later. See the discussion in ndt.net.

Does resin make a failed UPV block acceptable?

Only if your written spec allows fill, and only after you have seen the damage map. Resin can stabilise some fissures for certain decorative uses. It does not turn a structural reject into a structural pass. If vacuum fill is allowed, keep cycle data in the lot file.

How does UPV fit wholesale supply and private label programs?

It is how you keep lots consistent when you repeat an order. The golden sample governs appearance. UPV and gangsaw records govern structure. Together they support wholesale supply and private label manufacturing without relying on a new verbal promise every container.

What documents should you refuse to ship without?

Block tags and quarry identity, UPV grid or lab sonic report, golden sample photos, resin and mesh notes if used, inspection records against your spec, packing list that matches crate marks, ISPM-15 evidence, and insurance that is active before sailing. If those pieces are missing, pause loading.

Put UPV in the order, then put someone on the ground

Hidden cracks are not a mystery of Indian stone. They are a predictable risk you can price and control. Specify ultrasonic pulse velocity testing on candidate blocks. Walk the yard. Witness the first gangsaw passes. Inspect slabs before resin and again at the crate. Keep the paper with the lot.
