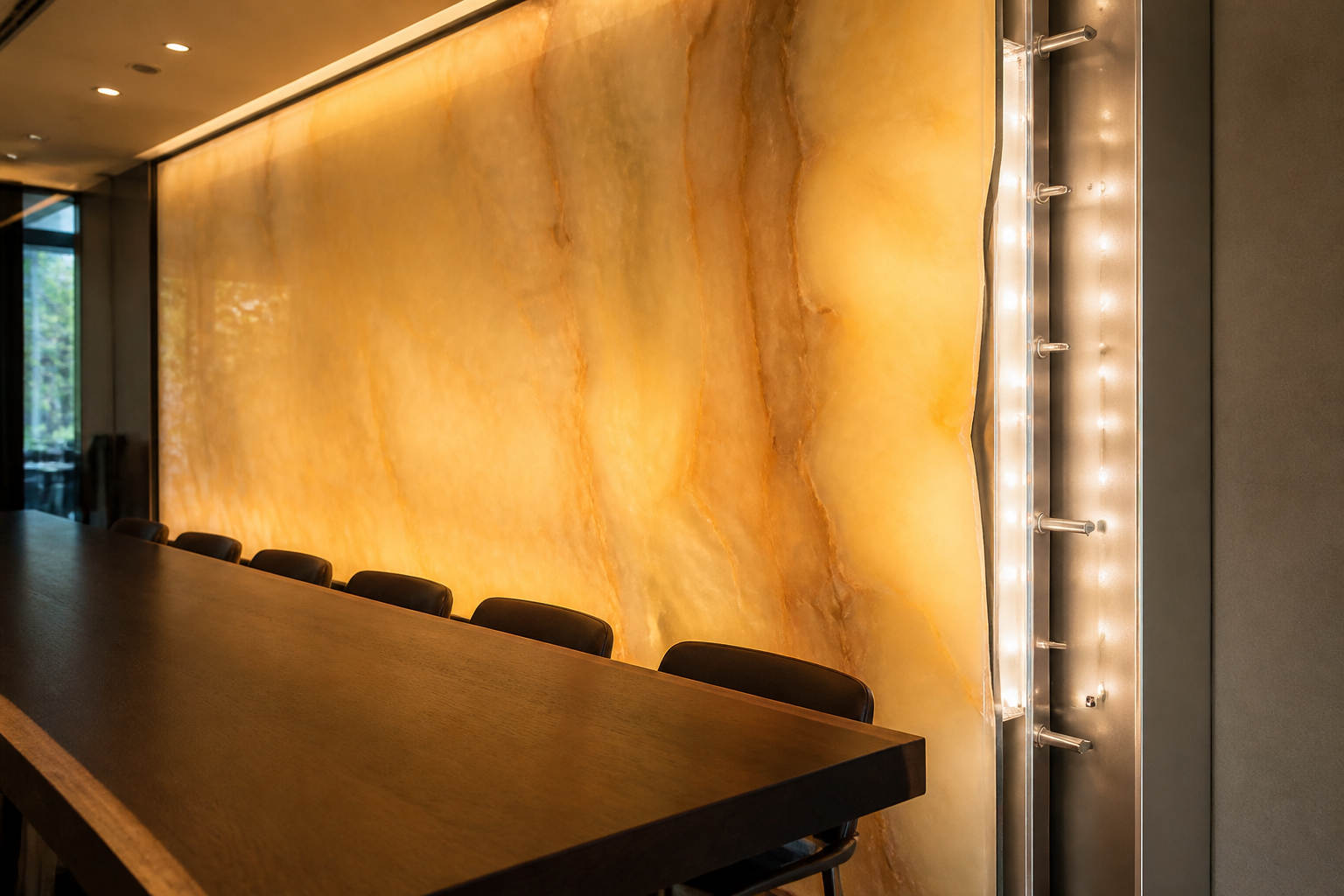

Specifying LED Diffusion and Thermal Dissipation for Backlit Onyx and Translucent Marble Features

## Specifying LED Diffusion and Thermal Dissipation for Backlit Onyx and Translucent Marble Features

Backlit onyx and translucent marble look effortless in a hotel lobby or a private dining room. They are not. The glow you want is a lighting problem first and a stone problem second. If you get diffusion, cavity depth, and heat wrong, veins turn into bright stripes, resin backing yellows, and the panel that looked rich in a showroom reads cheap at night.

This guide is for importers, hospitality buyers, interior designers, and brands who specify these features and then have them made. It covers the optical cavity, LED density, CRI, color temperature, and thermal dissipation you should write into drawings and purchase orders. It also covers how to source complete assemblies through India sourcing partners who actually inspect production, because a backlit slab is a custom product, not a catalog SKU you can buy from a list.

Netyex is a dedicated sourcing partner in India. We represent you on the factory floor, from supplier verification through quality control and export logistics, so your supply chain India work does not rest on uninspected production runs or inflated middleman pricing.

How light actually moves through the stone

Backlighting works because some natural stones are translucent. Light enters the back face, scatters through the crystal structure, and exits the front. Thinner slabs and a more open lattice pass more light. Dense calcite, heavy veining, and resin layers all change that path. ledstore.volkalighting.com.au describes the basic setup as a flat, evenly lit LED panel in a shallow cavity, with an air gap so the light can spread into a uniform field before it hits the slab.

Marble does not behave like engineered acrylic. Grain orientation and mineral mix send light in preferred directions, so two slabs of the same name can need different spacing. signliteled.com notes that marble is directional. You cannot copy a cavity depth from one project and assume it will hold on the next block.

Onyx is usually more forgiving than pale marble, but you still cannot thin it without a cost. A white paper from avanbrite.com points out that translucency often comes from reducing thickness toward 4mm to 5mm, yet onyx should not be cut that far if you want veins, depth, and color to survive. Flatten the stone too much and the feature looks like a lit sheet, not a mineral.

If you do not know the transmission of a given slab, test a sample. addlux.com treats that test as the starting point for depth, extra diffusion, and LED type. Guessing from a photo is how hotspots get specified into a wall.

The optical cavity and the 50mm rule

The single number that decides most of the look is cavity depth: the air gap between the face of the LED layer and the back of the stone.

For Volka-style 480 x 240mm LED sheets, ledstore.volkalighting.com.au targets 50mm. Less than 35mm and thinner veins start to show hotspots. More than 80mm and brightness falls off in a way you will notice in a dim restaurant. A typical working band for many marble builds is 50mm to 100mm, with deeper cavities blending better at the cost of wall thickness, as signliteled.com outlines for hotel and retail work.

Hospitality designers often write 2 to 4 inches of optical cavity plus a frosted acrylic diffuser, which is the same idea in imperial units. raritymarble.com is blunt: do not put LED elements directly against the stone.

There is no universal gap. linearlux.com.au makes that clear. A highly translucent acrylic face can need more separation than dense stone. Pale onyx diffuses differently from a dark, strongly veined slab. Countertops have less room than feature walls, so they need a true area source rather than spaced points. luxx.com argues that even glow at shallow clearances comes from high diode density (they cite 324 LEDs per square foot) and a consistent gap held with spacers, not from turning the driver up.

Write the cavity as a controlled dimension, not a leftover void. Use a timber or aluminium perimeter frame. On large slabs, add clear acrylic spacers so depth stays even and the stone is not hanging on adhesive alone. Clean mounting surfaces with isopropyl alcohol before you stick factory 3M-backed sheets. Those construction notes from ledstore.volkalighting.com.au sound small. They are how you keep a 2.4m panel from developing a bright ridge down the middle.

Diffusion layers, LED pitch, and source type

Diffusion is the work of three things together: stone thickness, air gap, and any extra sheet you put between the diodes and the slab.

For LED tape, buildmatinsight.com sets a practical floor: at least 120 LEDs per metre, plus a 3mm to 5mm opal acrylic or polycarbonate sheet between the tape and the stone. That physical layer is what turns a grid of points into a field. Skip it on a thin, open stone and you will see dots, especially in lighter veins.

Thicker, more opaque materials with strong colour and pattern are more forgiving. Onyx, quartzite, engineered agate, and laminated glass hide structure better. Thin, highly translucent faces do the opposite. addlux.com recommends increasing distance first, then adding a made-to-measure opal film or sheet if the material is close to transparent. RGB and RGBW work on these surfaces if the diffusion is already even. Colour-changing will not hide a hotspot. It will advertise it.

Choose the source to match depth and panel size:

• Matrix LED light sheets give uniform flux on large slabs and can be cut to shape. Some 3mm sheets are flexible enough for gentle curves. Depth can be very small on engineered faces, though stone still wants air.
• LED tape in a white cavity is cheaper and easier to service, but only if pitch, diffuser, and gap are specified together.
• Edge lighting suits framed panels with enough depth (often 60mm and up) and a designed light guide. It is a poor default for a book-matched onyx wall.
• Borderless sheets matter at joints. avanbrite.com warns that framed lamps create a halo at panel pairs. If you want a gapless field, the lamp itself cannot have a dark border.

A white, reflective cavity back helps mixing. A dark or unfinished ply box wastes lumens and can print the frame onto the stone. linearlux.com.au flags reflective backing as part of the blend, not decoration.

Photometrics: CRI, colour temperature, and lumen density

Pretty LEDs with a weak spectrum will grey out gold and red calcite. Specify photometrics the same way you specify stone thickness.

buildmatinsight.com points to Illuminating Engineering Society practice and a minimum CRI of 92. Below that, complex mineral colour goes muddy. For natural onyx, 3000K warm white is the usual target because it supports amber and gold. 4000K suits engineered white alabaster if you want a cooler, gallery look. Do not mix those on adjacent panels unless the design asks for it.

Lumen density is not a single number. signliteled.com cites a working range of about 4,000 to 8,000 lumens per square metre, scaled to translucency and thickness. Darker, thicker marble sits at the high end. Very open onyx can look over-lit at the same density, especially in a dark dining room. Dim the circuit. Do not under-specify the array and then hope a bigger driver will fix blending. Blending is geometry. Brightness is load.

Always size the driver to roughly 80 percent of rated capacity. A 96W driver running 72W stays cooler and lasts longer than the same driver at full load, which ledstore.volkalighting.com.au treats as basic practice. Put drivers in an accessible, ventilated location, not sealed behind the slab. raritymarble.com calls this out for long-term maintenance, and it is the difference between a 20-minute lamp swap and opening a finished wall.

Spec ranges you can put on a drawing

Hotspots, shadows, and why mockups beat drawings

Hotspots are not a mystery. marbre-import.fr lists the usual causes: LED spacing, distance from stone, diffuser depth, optics, and cavity reflectance. Shallow cavities raise the risk. So do low-pitch strips, dark cavity walls, and stone that is thinner in the white veins than in the body.

dynamicstonetools.com frames the goal as uniform brightness across the panel, with an even array behind a diffusing layer at a depth that lets light spread. Too shallow and you see sources. Too little diffusion and the glow looks blotchy rather than continuous.

Book-matching makes this harder. A vein that is open on one leaf and dense on the other will read as a brightness step if the lighting is perfectly even. You may need local masking, a second diffuser, or a slight layout shift of the LED sheet. That decision belongs in a lit mockup of the actual slab, not in a generic detail.

luxx.com is right to insist on testing the specific stone. Density and veining change the diffusion distance. If your Indian fabricator will not light a sample on the same LED type you will ship, you do not have a specification. You have a hope.

Thermal dissipation behind stone

LEDs run cooler than old sources. They still make heat, and a closed box behind stone traps it.

dynamicstonetools.com treats heat as a durability issue for both the lighting and resin-backed stone. Plan the light box so heat does not build, especially on features that stay on for long hours. buildmatinsight.com is more specific: trapped heat can pass 120°F and degrade clear epoxy backing, which then yellows. Specify tape on aluminium heat-sink channels, not stuck to painted MDF.

signliteled.com adds aluminium backing plates or other conductive mounts to pull heat off the diodes. Perimeter ventilation matters. So does refusing an airtight cavity. luxx.com calls a sealed box behind stone a common detail and a poor one. Adhesives and sealants in the joinery have temperature limits. Thermal clearance protects those materials as well as the LEDs.

For you as a specifier, that means three lines on the drawing:

1. LED layer mounted to aluminium, not to timber alone.
2. Cavity vented at the perimeter or to a plenum, never fully sealed.
3. Drivers remote, accessible, and in free air, loaded to about 80 percent.

If a factory offers a thinner wall by omitting vents and sinks, you are buying a yellowing date, not a slim detail.

What to write into a sourcing brief

A backlit onyx wall is custom product sourcing. The stone, the resin, the LED sheet, the diffuser, the frame, and the crate all have to match one assembly. That is why unverified supplier directories fail you here. You cannot auction a photometric cavity on a chat thread.

When you brief an Indian workshop, include:

• Slab identity, thickness, resin system, and whether the back is ground or left irregular.
• Target cavity depth, diffuser type and thickness, LED product (sheet or tape), pitch, CRI, CCT, and lumen density.
• Driver brand class, load percentage, dimming protocol, and access path.
• Heat path: aluminium channel or plate, vent locations, maximum cavity temperature you will accept in a 12-hour on test.
• Joint treatment: book-match, borderless light field, no frame shadow at seams.
• Sample protocol: a lit offcut of the actual block, photographed in a dark room at the specified gap.
• Packing for export: edge protection, moisture barrier, and orientation so the LED layer is not the sacrificial face.

Netyex handles that brief as buyer-side representation in India. We verify the fabricator and the lighting subcontractor, watch the mockup, and keep quality control on the line rather than after the container is sealed. That is how you avoid misleading lead time promises. A resin cure, a driver shipment, and a crate for a 30mm stone sandwich do not follow the same clock as a side table.

India is a strong base for this work if you treat it as a managed supply chain. Rajasthan and other stone belts already cut, resin, and polish translucent material for export. Lighting plants can supply sheets and drivers if you specify them, rather than accepting whatever is in the storeroom. Private label manufacturing is realistic for hospitality groups that want a repeated wall system across properties, as long as the first unit is a tested assembly, not a verbal match to a mood board.

Wholesale supply of finished backlit panels is possible. It is still not a commodity. Every block is a new optical test. Our job is complete oversight: factory audits, in-process checks, and export logistics that match the weight and fragility of stone, not a general cargo guess.

Pairing the glow with the rest of the room

A backlit stone wall will dominate. The furniture and textiles around it should hold still, not compete with the mineral pattern.

In a lounge, a simple timber top keeps the light on the wall. A round coffee table or a Sheesham indian rosewood wood round coffee table gives you mass and grain without another light source. Guest-room corners work with a natural wood side table wooden stool or a round coffee table wood end side table. For tight suites, a wooden foldable side table or a side table oak tray small round end table keeps circulation clear. A wooden end table antique wooden round shape legged stool can sit under a backlit niche if you want a darker, older wood against the glow.

On adjacent walls, textile is safer than a second stone. Luxury hanging rugs, woven wall art rugs, and traditional wall hanging rugs absorb light instead of bouncing it back into the onyx. If the stone is warm, timeless wall hanging rugs or a luxury wool wall hanging rug keep the palette in the same family. Cooler schemes can take modern wall hanging rugs or premium woven wall decor. Heritage rooms often want heritage wall hanging rugs, handwoven wall hanging rugs, or classic wall hanging rugs. For a quieter field, look at elegant woven wall decor rugs, designer woven wall hanging rugs, decorative wall loom rugs, and crafted wall tapestry rugs. Stronger pattern can live on a wall that the onyx does not light, using authentic handwoven wall rugs, artisanal wall fabric rugs, an artisanal handwoven wall hanging rug, an artisan wall hanging rug, or an abstract patterned wall hanging rug.

Netyex can run the stone assembly and these furnishings in one India sourcing program, with the same supplier verification and quality control standard on both. That is useful when a hotel group wants one export logistics plan, not five vendors and five packing stories.

How Netyex runs the work

You get dedicated buyer-side representation in India, not a forwarded email to a factory you have never seen. We audit, we sample, we stand in the shop when the first cavity is built, and we coordinate shipping. The point is transparent sourcing and full on-the-ground checks, without the markups that appear when too many hands sit between you and the maker.

That model fits mid-range hospitality and retail programs that need reliable quality more than a race to the lowest quote. A correctly specified LED cavity is cheaper than a callback on a feature wall in Dubai, London, or New York.

If you already have a lighting designer, we work to their photometric sheet. If you do not, we still will not let a workshop invent a 20mm gap and call it done. Diffusion and heat are part of quality control, not extras.

FAQ

What cavity depth should I specify behind backlit onyx?

Start at 50mm for sheet lighting on typical slabs, and treat 35mm as a risk line for hotspots in thin veins. Go toward 80mm to 100mm when the stone is open, pale, or thin, or when you are blending marble rather than onyx. Confirm on a lit sample of the actual block. Depth is not interchangeable between materials.

Do I always need an acrylic diffuser?

If you use LED tape, yes: a 3mm to 5mm opal acrylic or polycarbonate sheet is the reliable way to kill dots. Dense matrix sheets behind thicker, patterned onyx can sometimes work without an extra sheet, but only after a mockup. Highly translucent faces almost always need more distance, more diffusion, or both.

Which CRI and colour temperature should I put on the purchase order?

Specify CRI 92 or higher. Use 3000K for natural onyx if you want the gold and amber to stay rich. Use 4000K for white engineered alabaster if the interior is cooler. Write both values on the PO with the LED part number. "Warm white" is not a spec.

How do I stop heat from yellowing the resin?

Mount LEDs on aluminium, vent the cavity, keep drivers remote, and load drivers to about 80 percent. Do not seal the box airtight. Epoxy backing can yellow if cavity air climbs past about 120°F. Ask for a temperature reading in a 12-hour on test before you approve mass production.

Can I source a complete backlit assembly in India?

Yes, if you treat it as custom product development with supplier verification, not as a search result. Stone shops and lighting shops must work to one drawing. Netyex coordinates that, including private label manufacturing and wholesale supply for repeated hospitality units, plus export logistics for heavy, fragile panels.

What should a factory mockup include?

The real stone offcut, the specified LED type, the specified gap, the diffuser (or proof it is omitted), a white cavity back, and photos plus a brightness check in a dark room. If the factory lights a different stone with a different strip, the mockup is theatre.

How do joints stay invisible when two panels meet?

Use borderless light fields, matched cavity depth, and even reflectance behind both slabs. Frames and dark edges print as bands. Book-matched veins still need a lighting check, because transmission can differ across the cut.
