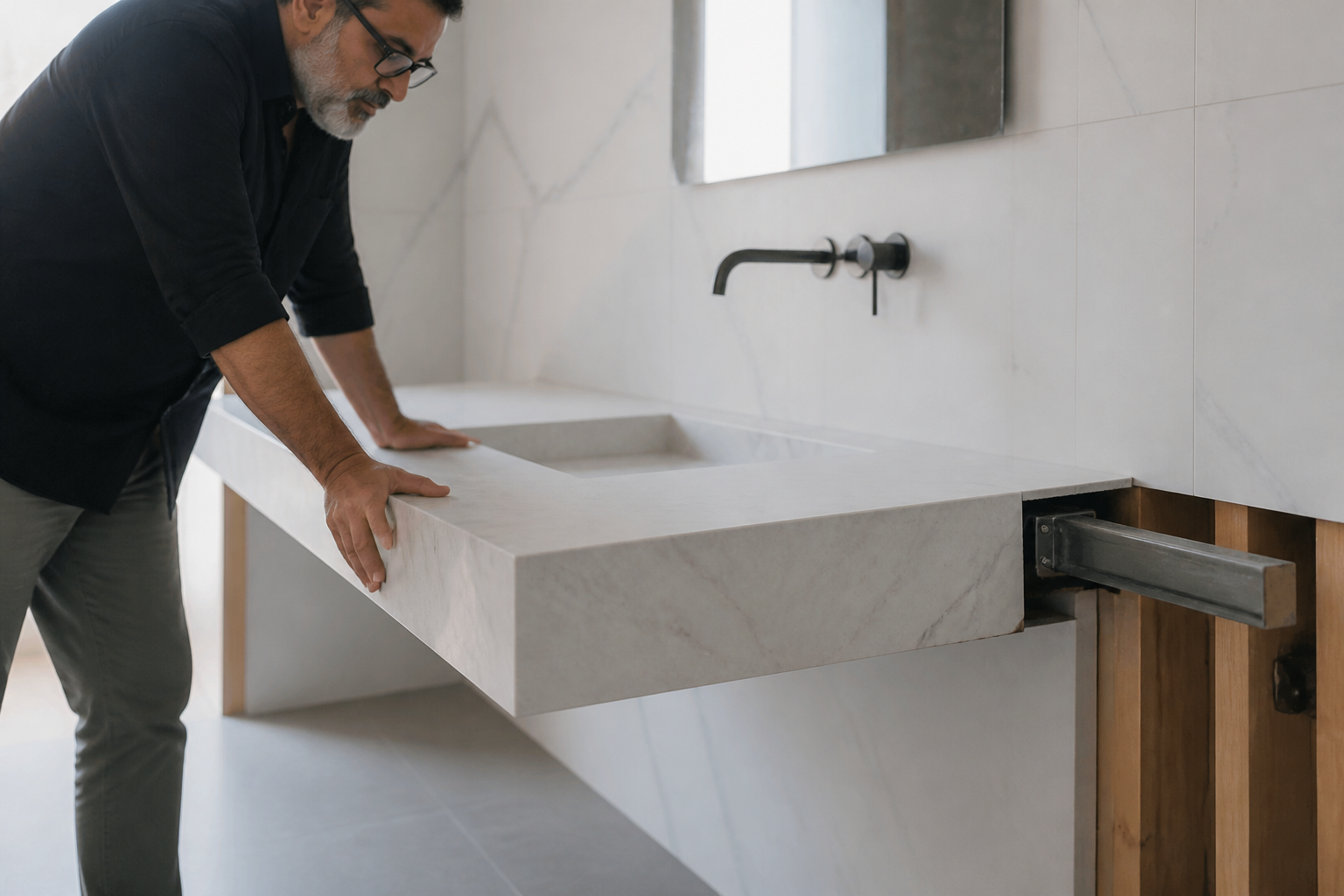

Specifying Concealed Steel Brackets for Floating Marble Vanities: Load Calculations and Stud Anchoring

Specifying a concealed steel bracket for a floating marble vanity is a load problem first and a finish problem second. The stone looks light on a mood board. On site it is a cantilever with a sink cutout, a wet wall behind it, and a guest who will lean on the front edge. If you import the vanity, the brackets, or both from India, the drawing has to travel with the same clarity as the stone sample. A shop in Gujarat can cut an arm to the millimeter. It cannot guess the stud layout in a London flat or a Dubai hotel bathroom.

This guide is for importers, retailers, interior designers, and hospitality buyers who need the numbers, the anchoring checks, and an India sourcing path that does not depend on an unverified contact list.

What the bracket is actually holding

A floating vanity sends the combined dead load of the marble, any built-up basin, the cabinet, drawers, and hardware, plus foreseeable service loads, into the wall. landiviewstone.com is clear on that point. The hidden support has to be coordinated with wall construction, structural backing, mounting height, the plumbing zone, access, and the installation sequence. ASTM guidance on dimension-stone attachment treats stone, attachment, support, interfacing work, and the real material condition as one system, not as separate purchase orders.

That matters when you split the buy. Marble from Rajasthan and steel from a fabrication shop in Maharashtra can be the right pair. They only work if one specification covers both, and if someone on the ground checks that the pair still matches after cutting.

Do not size the hanger from an empty-cabinet brochure figure. focuscabinet.com warns that the loaded case includes the cabinet, the stone top, the basins, the contents, and a margin. If the maker cannot give a rated capacity for that loaded case, treat the hanger as unverified and add support, or change the bracket. A number printed for an empty box is not a number you can hang marble on.

A planning load check before you order steel

This is a buyer's planning check, not a stamped calculation. A structural or project professional still has to verify the load path, allowable deflection, wall capacity, bracket design, fasteners, and anchorage into real backing. Factory engineering can reserve an interface. It cannot confirm a wall it has never seen. landiviewstone.com states that limit directly, and it is the limit you should write into your own purchase terms.

Use this sequence on the drawing set you send to India:

1. Measure the top: width, depth, and thickness. Note every cutout, including the sink and any faucet holes.
2. Estimate stone weight from volume and a density your fabricator confirms for that block. Ask for the figure in writing with the sample. Do not borrow a generic web average and call it a spec.
3. Add the basin. A built-up marble basin is stone on stone. An undermount ceramic bowl is lighter, but the rim still bears on a narrow strip of marble.
4. Add the carcass, drawer boxes, slides, and a filled-drawer allowance. Toiletries are light. A drawer full of them, pulled open, still moves the center of gravity forward.
5. Add a service case for someone leaning or sitting on the front edge. If your market is hospitality, assume that case will happen during the first month.
6. Compare the total with the published rating of the bracket type you intend to use. Then derate for the anchor and for any bracket that does not land on solid framing.

A thin concealed shelf bracket is the wrong default for this job. dynamicstonetools.com lists concealed floating shelf brackets at about 50 to 75 pounds each, with a max span around 18 inches, suited to open shelves. Visible angle brackets in that same note sit nearer 100 to 150 pounds each. A custom engineered steel frame is rated per the engineer. That is the column you want once the top is marble and the unit truly floats.

Cabinetmakers working on floating vanities often start from heavy-duty steel brackets rated at least 330 pounds per pair, anchored into framing, sometimes with angle iron at the base to resist shear. build-construct.com describes that approach for cabinetry. Marble on top of the cabinet raises the demand again. Two light arms and a hope are not a specification.

A worked example you can adapt

Take a 48 inch by 22 inch top, 3 cm thick, with a built-up marble basin and a small wall-hung carcass. The weights below are a method, not a quarry certificate. Replace every figure with the one on your sample sheet.

• Convert thickness. 3 cm is about 1.18 inches, or 0.098 feet.
• Volume of the slab: 4 feet wide by 1.83 feet deep by 0.098 feet is about 0.72 cubic feet.
• If your quarry sheet lists 170 pounds per cubic foot, the slab alone is about 122 pounds. Your stone may be lighter or heavier. Use the sheet.
• A built-up basin can add a few dozen pounds, depending on wall thickness and whether the fabricator leaves the core solid. Weigh a sample, or ask for a calculated weight from the CAD model.
• A plywood or hardwood carcass with two drawers and slides might add roughly 40 to 80 pounds. Confirm it on a prototype, not from a catalog photo.
• Contents and a lean at the front edge are extra demand. Treat them as extra, not as zero.

On that sketch you are already past 200 pounds before anyone sits on the front lip. Four shelf brackets at 50 to 75 pounds each only work if every rating is genuine, every anchor is in solid wood or designed steel backing, and the load is shared evenly. Miss one stud and those ratings become a story the wall cannot support. That is why heavy marble jobs move to a ledger, a set of engineer-rated arms, or a custom frame.

Write the total on the drawing as planning weight, subject to engineer confirmation. Send that number to the steel shop with the arm length. Do not send a photo of a vanity and ask them to make it strong.

Arm length, spacing, and the sink cutout

Most floating bathroom tops sit 32 to 36 inches off the floor and project 20 to 22 inches from the wall. dgfloors.com notes that stone needs more support than wood, and that the support should be planned before drywall goes back up. Retrofitting a bracket into a tiled wall is how projects lose a week.

For a stone top, space heavy-duty steel brackets so each one lands on a stud, and keep them no more than about 16 to 24 inches apart. The arm should extend at least two-thirds of the countertop depth. On a 22 inch top, that means a 16 to 18 inch arm. The same install note flags the sink cutout. The narrow strips of stone in front of and behind the hole are the weak points, so support has to sit close to that opening, not only at the outer ends.

Do not copy a kitchen-island overhang rule onto a wall-hung vanity without reading what it assumes. On an island, many shops keep at least two-thirds of the slab depth and weight on a cabinet or knee wall, so the true cantilever is at most one-third. The fixed back span of the bracket is then checked against that shorter overhang. A 15 inch overhang wants about 10 inches or more of bracket under the supported side, and marble seating should stay near 24 inch support spacing rather than stretching toward 36.

A floating vanity has no floor cabinet. The wall is the only support. The arm itself is the cantilever. Size it with the two-thirds depth rule from the vanity installers, keep a support near the cutout, and have an engineer check deflection at the front edge for your thickness and span. A common end condition is a bracket no more than about 6 inches from each unsupported end. Long hospitality vanities, 72 inches and up, need that end condition drawn. An unsupported corner next to a vessel bowl is where the first crack shows.

State units on the drawing. A 16 inch arm cut as 16 mm, or a 400 mm arm read as 400 inches, is an expensive mistake. India fabrication shops work fluently in both systems when the file says which one you mean.

Stud anchoring that actually holds

Drywall is a finish, not a structure. Hollow-wall anchors, including heavy toggle bolts, are not a substitute for fastening into wood or metal framing designed for the load. inspectandtest.net states the standard approach: solid blocking, typically horizontal 2x lumber between the studs.

Where the wall is still open, this is the reliable build:

• Studs at 16 inches on center, 2×4 or 2×6, give you a place for 3-inch construction screws or 3/8-inch lag bolts to develop shear and withdrawal. dynamicstonetools.com treats that framing as the baseline for a stone floating top.
• Add horizontal blocking at the mounting height before the board goes on. A 2×6 or 2×8 running across three or more studs spreads the load. Two isolated studs can loosen under daily use.
• Set the block so its face is flush with the framing. vatero.com makes the point that the rail or brackets then screw through the finished wall into continuous wood, not into one lucky stud and a hollow bay.

Metal stud walls, common in UAE hotels and many US commercial bathrooms, need a different fastener and often a steel backing plate or a designed subframe. Do not send a wood-lag specification to a site that has light-gauge studs and tile on cement board. Ask what the wall is before the factory drills the vertical leg.

Ask the installer to show the load path on the drawing: basin or top to carcass, carcass to bracket or rail, fixings into the identified wall. The same drawing should show which holes cut the waterproofing and who seals them. woodage.in treats that as a pre-install check, not a punch-list surprise. A powder-coated arm that punches an unsealed hole through a shower-side membrane will cost more than the bracket.

Coordinate bracket locations with the plumbing zone before production. A 16 inch arm that collides with the trap adapter is a remake. Reserve clearance for the P-trap, the supplies, and a shutoff. If the vanity is an integrated marble shell, the drainage geometry and the visible joints belong in the same review as the steel. Digital checks and factory assembly reduce surprises, but site anchorage, leveling, and plumbing still need approval from the responsible parties.

Bracket types worth specifying

dgfloors.com groups the hardware most shops actually use. Match the type to the wall you will really have, not to the wall in the rendering.

• Concealed flat-bar brackets. Solid steel, often 1/4 inch thick by 1 1/2 or 2 inches wide, with a vertical leg screwed to the stud face and a horizontal arm under the top. The leg is let into a drywall notch, or it is mounted before board. This is the usual vanity choice. For heavy marble, 1/4 inch is a starting description, not a promise. Thickness, grade, and weld size follow the load and the engineer.
• In-wall brackets. The vertical portion sits in the stud cavity and only the arm comes through the board. This is the cleanest look, and it requires an open wall. You cannot fake it on a finished tile job.
• L-brackets with a front lip. Visible, powder-coated, strong, and easy on a finished wall. You will see them. Some hospitality specs accept that in staff bathrooms and reject it in guest rooms.
• French cleat or ledger plus brackets. A hardwood or steel ledger lagged along the back edge carries part of the load. Two or more arms hold the front. This is useful on long tops, and it is easier to level than four independent arms drilled a millimeter off.

A steel ledger channel across the full cabinet width spreads load instead of dumping it into two points. If your SKU is a 60 inch marble vanity for repeat wholesale supply, a ledger plus two or three arms is often easier to install in the field than a one-off sculpture of hidden plates.

Put the confirmation column on the purchase order. A shop can powder-coat anything. It cannot invent a rating you forgot to request.

Published planning ranges from install guides are a filter, not a stamp. Use them to reject hardware that is obviously too light, then get a project-specific check.

Those ranges come from field guidance at dynamicstonetools.com, not from your wall. If the site backing is unknown, the table does not apply yet.

Writing a factory specification shops in India can build

Rajasthan still supplies a large share of commercial marble. Fabrication shops in Gujarat, Maharashtra, and Tamil Nadu cut hidden plates, L-brackets, and corbels to drawing lengths every week. The gap is not skill. The gap is a supply chain India buyers can actually audit, instead of a spreadsheet of contacts nobody has walked.

Your specification should name:

• Steel type. Mild steel with a documented coating, or stainless if the bathroom is coastal or the spec calls for it. Do not write "steel" and hope.
• Section. Thickness, width, arm length, vertical leg length, and any gusset. Call out the bend radius if the arm has to sit flat under a 2 cm or 3 cm top.
• Welds. Fillet size, both sides or one, and whether the weld is ground before coating. A proud weld under a stone top becomes a rocker.
• Holes. Diameter, slot length for leveling, and edge distance. Slots save installers. They also reduce section if they are cut too close to the bend.
• Finish. Powder coat color, cure, and an adhesion or corrosion check if the buyer's market asks for it. Matte black hides less than people think once a weld blister shows.
• Marking. Part number stamped or labeled so a 16 inch arm is not packed with an 18 inch arm.
• Rating. The load the shop will stand behind, in writing, for the loaded vanity. Not for an empty bar.

If you sell under your own brand, this is private label manufacturing, not a catalog grab. The hole pattern, the coat color, and the install sheet should match your SKU, not the factory's last hospitality job. Custom product sourcing is the right frame when the vanity is not a catalog item and the steel has to match a US or UK drawing.

Netyex works as the buyer-side team on the ground: factory checks, supplier verification, and export logistics in one brief. You are not paying a chain of middlemen to forward a photo, and you are not left with a directory of plants nobody has audited. That is the difference between India sourcing you can defend to a hotel client and a quote that only looks cheap on day one.

Mid-range is the honest fit. You do not need a vanity markup on every plate. You do need the thickness on the drawing, marble that matches the approved sample, and a crate that arrives without a bent arm. That costs more than the lowest quote on a run nobody inspected, and less than a failed install in a mock-up room.

Quality control that matches the drawing

A single approved sample tells you what the factory can do on its best day. It does not tell you what happens on piece 40. Split checks into three passes, and do not skip the middle one because the sample looked right.

• Raw material. Mill certificate or a shop measurement for thickness and grade. Measure the bar before it is cut. A 1/4 inch callout that arrives thinner will not carry the same load, even if the powder coat color matches.
• In process. Arm length, hole position, weld size, and squareness of the bend. A bracket that is a couple of degrees out of square makes the top rock. Installers shim it, the shim slips, and the stone sees a point load at the cutout.
• Pre-shipment. Finish consistency, hole gauge, and packing. Count against the packing list. Open at least one crate in the lot, not only the sample crate.

That is the quality control a buyer should expect on metal hardware, and it is the same discipline described in how Netyex checks that supplier products match what was approved. Compliance paperwork for the destination market belongs in the same file. If your buyer needs coating declarations, material traceability, or packing marks for US, UK, or UAE entry, set that before production, not when the container is at the port. How to keep compliance in view when you buy from India belongs next to the bracket drawing, not in a separate panic later.

Two habits create bad steel. One is buying from an unverified supplier directory and discovering the "factory" is a trader with no weld bay. The other is accepting a lead time that was never tied to steel availability, a powder-coat queue, or a holiday shutdown. Ask for a milestone plan: material in house, first-article approval, batch complete, inspection, vessel. If a date is not tied to a milestone, treat it as a guess. Misleading lead times are more expensive than a frank two-week slip you can plan around.

Export packing for arms, plates, and stone

Export preparation has to follow geometry, weight, openings, weak sections, handling gear, the route, and how the crate will be unloaded. landiviewstone.com lists film, foam, plywood separation, edge guards, temporary supports, positioning blocks, or a purpose-built crate, depending on the product. A marble shell with a built-up basin is not packed like a box of flat bars.

For concealed brackets, the failure in transit is usually a bent arm or a chipped coat, not a broken weld. Pack arms so they cannot lever against each other. Separate coated faces with foam. Do not throw loose lag bolts into the same bay as a powder-coated leg. If stone and steel ship together, keep the steel off a polished edge. Corner damage on marble is a remake. A bent 18 inch arm is also a remake, and it often shows up only when the installer tries to level the top.

Secured trading services help when you want payment and shipment structured with more protection than a wire to a new contact. Destination paperwork is not identical for every buyer. A bracket spec that is fine for a US residential importer may need different packing marks and document sets for the UAE or the UK. Export-friendly markets for Indian products is a useful map before you lock a first container. Price the landed unit with freight, duty, inspection, and a realistic damage allowance, not with the ex-works plate cost alone. Pricing for international markets is where that math usually goes wrong for first-time hardware importers.

The material story only works if the steel does

Home and bath goods from India keep finding buyers because the material story is specific, not generic. A named block, a fabricator who will put a calculated weight on the sample sheet, and a shop that cuts the arm to the length on your file are what make a floating vanity defensible in a US showroom, a UK fit-out, or a UAE hotel mock-up. Demand for Indian home decor follows the same logic. Buyers pay for a piece that looks considered. They do not pay a second time for a cracked lip and a bent arm.

That story holds only if the bracket travels with the stone. Write the planning weight on the drawing and mark it as subject to an engineer. Name the section, the welds, the holes, and the coating. Confirm the wall before anyone drills the vertical leg. Run quality control on the raw bar, the bend, and a crate from the production lot, not only the sample that looked right on day one. Tie the ship date to milestones: material in house, first-article approval, batch complete, inspection, vessel. A date with no milestone is a guess.

If the vanity is a repeat wholesale supply SKU, treat the hardware as private label manufacturing. The hole pattern, the coat, and the install sheet should be yours. Netyex stays on that file in India, from supplier verification through export logistics, so you are not paying middleman markups for a forwarded photo. You keep the specification. We keep the shop matched to it, from the weld check through final shipping.

FAQ

Can a concealed shelf bracket hold a marble vanity?

Usually no. Field notes put many concealed floating shelf brackets at about 50 to 75 pounds each, with spans near 18 inches. A marble top, basin, carcass, contents, and someone leaning on the front edge can pass 200 pounds on a modest 48 inch unit before you add a margin. Use those ranges only to reject hardware that is obviously too light. Then get a project-specific check against the loaded weight and the real wall.

Is drywall anchoring acceptable if I use heavy toggles?

No. Drywall is a finish. The reliable path is into wood framing with solid blocking, or, on metal-stud walls, into a designed steel backing or subframe. Hollow-wall anchors, including heavy toggles, are not a substitute for that load path. Ask what the wall is before the factory drills the vertical leg.

What should I send a fabrication shop in India?

Send units, arm length, section, hole pattern, weld size, coating, part marking, and the loaded weight you want the shop to stand behind in writing. State inches or millimeters on the drawing. A 16 inch arm cut as 16 mm is an expensive mistake. Do not send a photo and ask the shop to make it strong.

Who confirms the wall can take the load?

A structural or project professional who can see the real backing. Factory engineering can reserve an interface. It cannot confirm a wall it has never seen. Write that limit into the purchase terms, and have the installer show the path from stone to bracket to identified framing, including who seals any hole through the waterproofing.

How do I avoid a cheap quote that fails on site?

Skip unverified supplier directories, uninspected production runs, and lead times that are not tied to steel in house, coating, inspection, and the vessel. Open a crate from the lot. Price the landed unit with freight, duty, inspection, and a damage allowance, not the ex-works plate cost alone. A frank slip you can plan around costs less than a date that was never real.

Send the drawing before you ask for a price

If the file is still a sketch, do not book steel. Send the width, depth, thickness, cutouts, planning weight, destination, and a note on whether the wall is wood, metal stud, or still open. Contact Netyex and we will tell you whether the brief is ready for a first article or whether the wall detail has to come first. That is the whole point of a buyer-side team on the ground: the arm that ships is the arm on your drawing, and the crate arrives ready to level, not ready to argue about.
