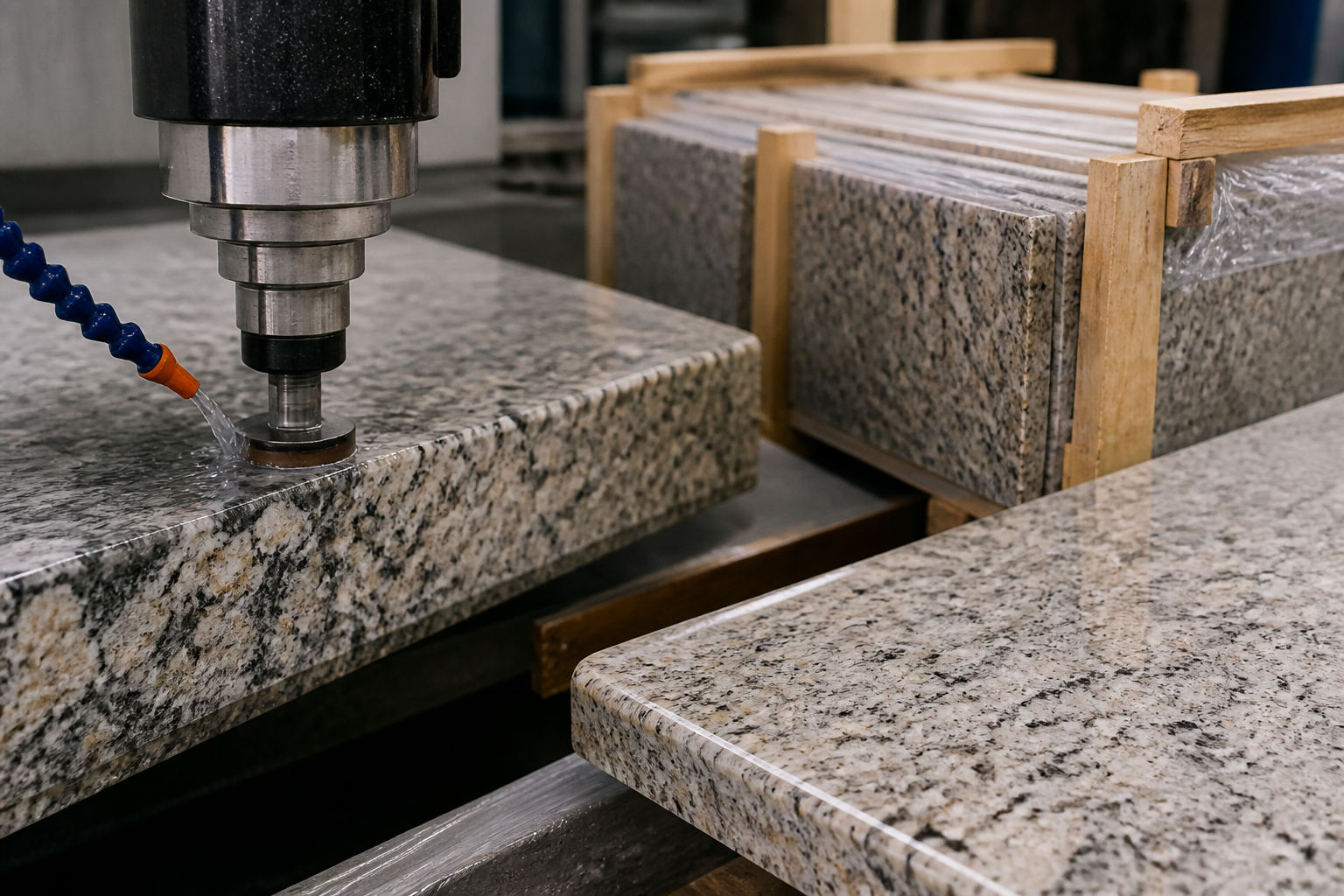

Preventing Edge Chipping on Coarse-Grained Granite: CNC Tooling and Bevel Selection

## Preventing Edge Chipping on Coarse-Grained Granite: CNC Tooling and Bevel Selection

You can approve a perfect granite sample in Jaipur or Bangalore and still open a crate in Houston, Manchester, or Dubai with white bite marks along every arris. On coarse-grained stone, those chips are not random handling damage. They start at the crystal boundary on the saw, grow on the first profile pass, and survive polish if nobody wrote a feed, a bevel, and a grit sequence into the job.

If you run India sourcing for stone tops, cladding, or mixed stone-and-wood furniture, edge quality is a procurement problem, not only a shop-floor one. Recuts, rejected lots, and late containers cost more than a slower first pass. This article gives you the tooling logic, bevel choices, and written checks that keep coarse granite intact from the CNC to the crate.

Why coarse grain chips when fine grain does not

Granite is not one material. Crystal size decides how the edge fails.

In coarse-grained granite, feldspar and quartz crystals can be large enough to see from across the room. When a diamond tool hits a crystal boundary, the stress can pop out a whole crystal instead of cutting through it. The chip follows that boundary. It is roughly the size of one crystal, so it is visible, deep, and hard to hide with polish. dynamicstonetools.net describes this as a predictable structural effect, not operator luck.

Fine-grained stones behave differently. Tightly locked small crystals share the load. The cut tends to pass through many grains at once, so you get micro-chipping rather than missing chunks. Absolute Black (Zimbabwe diabase), Nero Impala, and many Indian black granites sit in this camp. Coarse lots such as Volga Blue, Blue Eyes, and many exotic blue or brown granites with large feldspar crystals sit in the other. dynamicstonetools.com notes that the first grinding pass on a coarse edge often exists only to remove micro-chips left by the saw. Plan for that pass. Do not treat it as waste.

For you as a buyer, that means the stone lot is part of the process. A leftover offcut from a fine black slab will not prove an edge on a coarse brown lot from Rajasthan. Sample approval has to use the actual block you will ship.

What the first saw cut already did to the edge

Most chipping you see after profiling started earlier. A fast rip with a glazed blade, a dry entry, or a hard shock at the corner leaves a damaged band a few millimetres deep. Profiling then opens that band instead of cutting clean stone.

On hard granite and quartzite, a shallow scoring pass of 3 to 5 mm before full depth gives the tool a path and limits entry chips. Miter and waterfall work needs that discipline more than a straight eased edge. If your factory skips scoring because the operator is chasing minutes, you pay for it in the destination warehouse.

Volume loss from chipped edges is measurable. Hungarian milling research treated chipped material as product volume you never get to sell. That is a useful way to talk to a plant manager: chips are yield, not cosmetics. See the method discussion at pp4.omikk.bme.hu.

CNC tooling: geometry before grit

Grit size matters, but the shape of the wheel decides how force hits the stone. Concave and chamfered profiles load the edge in different ways. Studies summarised by diamondtoolstore.com show that profile geometry changes machining behaviour, not only the look of the finished arris.

A controlled experiment on edge finishing compared chamfered and concave tools, each in G150 and G600, across spindle speeds of 1500, 2500, and 3500 rpm, feeds of 500, 1000, and 1500 mm/min, and wet versus dry cutting. That matrix is reported in mdpi.com. You do not need to copy every cell. You do need to stop treating “granite bit” as a single SKU.

Practical rules that hold up on Indian CNC lines:

• Use a bond rated for hard granite or quartzite, not a general marble or soft-granite wheel. Dense stone glazes segments, then the glazed face rubs, heats, and tears crystals out of the edge.
• Keep finishing-pass lateral engagement under about 40 percent of tool diameter so the tool does not deflect and the arris does not break away.
• On coarse grain, start finer than you would on Absolute Black. A brutal G45 hogging pass that is acceptable on fine black stone will dislodge crystals on Volga Blue.
• Never take an ogee, cove, or full bullnose to full depth in one pass. Multiple light passes cost minutes and save slabs.

Wet finishing work with eased concave, eased chamfered, half-beveled, and ogee tools across G45, G150, G300, and G600 shows that geometry, grit, and cutting conditions move polishing forces together, not one at a time. Force data of that kind is laid out in the wet-edge study indexed at exa.ai.

Bevel and profile selection that reduces chip risk

Bevel choice is a quality decision. Sharp arrises concentrate stress. A small radius or a true eased edge spreads it.

Use this as a working order when the stone is coarse:

1. Eased or small-radius straight edge. Light contact. Safest starting profile for large-crystal granite. Typical CNC feed 800 to 1,200 mm/min once the saw damage is gone.
2. Half-beveled. A good compromise when the design needs a visible break but you still want a stable polish. Combined with fine grit (G600), half-beveled tools have also shown lower ultrafine particle counts on black granite in wet finishing work, around 6,400 particles per cm3 in the conditions reported by espace2.etsmtl.ca. That is an air-quality finding, but it tracks with less violent micro-fracture at the edge.
3. Chamfered profiles. Useful, yet they put a sharp line into coarse crystal. A tiny radius at the chamfer corners reduces local stress. Do not run them like a flat polish pad.
4. Concave eased profiles. Different force path than a chamfer. Confirm on the actual lot. Do not assume the program that worked on Nero Impala will behave on a brown granite with 20 mm feldspar.
5. Bullnose (half or full). Large radius contact. Slow down on hard or coarse stone. 500 to 900 mm/min is a realistic band.
6. Ogee and double ogee. Multiple passes only. 400 to 700 mm/min. Full-depth ogee on coarse grain is how you generate matching chips on both shoulders.
7. Cove. Inner radius traps heat. Raise water flow. 450 to 750 mm/min.
8. Bevel at 22.5 or 45 degrees. Entry chips are common. Use a tangential lead-in. 700 to 1,100 mm/min after a scoring pass.
9. Waterfall and miter edges. 300 to 600 mm/min with 2 to 3 mm depth per pass. Treat these as a different operation from a kitchen eased edge.

If the design insists on a crisp, almost sharp bevel on coarse granite, budget extra finish passes and a higher reject allowance. Do not pretend geometry is free.

Speeds, feeds, and water: numbers you can put on a PO

RPM on the HMI is not the number that matters most. Peripheral speed is. For diamond routing bits, a practical band is about 20 to 40 metres per second. Go higher and you burn diamonds and bond. Go lower and you glaze. Larger diameter bits must run slower so the diamond surface stays in that band.

Edge-finishing research on granite found that raising cutting speed reduced average edge chipping up to a borderline speed, after which quality stopped improving or reversed. That pattern is reported in journals.sagepub.com. Faster is not always better. It is better until the tool starts pounding or overheating the crystal.

For wet granite edge finishing with an eye on both finish and airborne particles, response-surface work points to spindle speeds between 2000 and 2800 rpm with feeds between 800 and 1200 mm/min (2500 rpm and 1000 mm/min as a representative pair) as a low-emission region that still holds surface quality. Speeds above 3500 rpm, especially on white granite and sharp geometries such as half-bevel, raised ultrafine particle counts through heavier micro-fracturing. Those recommendations come from espace2.etsmtl.ca.

Lubrication is not optional cosmetics. Wet edge finishing of granite improved surface finish and reduced fine particle emissions, though ultrafine particles did not drop in the same way. The authors of that work, at pmc.ncbi.nlm.nih.gov, suggest further work with minimum quantity lubrication. On a commercial line in India, flooded water at the bit of at least 2 to 3 L/min, with nozzles that actually hit the contact zone, is the baseline you should require. A dry “quick pass” on coarse grain is how crystals leave the slab.

Granite profile routing often starts at 800 to 1,200 mm/min for roughing and 400 to 600 mm/min for finish passes. Marble can run faster. Hard quartzite and coarse exotic granite need slower feeds and more frequent tool checks.

Write those numbers into the order. A verbal “go easy on the blue stone” will not survive a Friday shift in a busy Rajasthan plant.

What you should put in the spec when you buy from India

India is a strong place to make stone products if the process is locked. Karnataka and Rajasthan shops can hold a 45-degree miter on dense material. They can also ship a gapped, chipped joint if the only instruction was a drawing and a price.

For custom product sourcing of tops, cladding, or mixed stone-and-wood pieces, ask for all of the following in writing:

1. Blade or bit type and bond rated for quartzite or hard granite, not a general granite tool.
2. A spindle RPM or peripheral speed target, plus feed in mm/min for miter and profile passes.
3. Scoring pass depth on hard or coarse materials (3 to 5 mm).
4. Water flow at the bit of at least 2 to 3 L/min, with nozzle positions confirmed.
5. Tool geometry and grit sequence (for example G150 then G300 then G600), named by profile, not “polish until nice.”
6. Angle checks with a precision gauge every 3 to 5 pieces, plus photos of the gauge on the part.
7. Runout check before a miter job starts.
8. Sample approval on the actual stone lot, not a leftover offcut from a different block.
9. Edge protection in the pack: foam or edge guards on every mitered arris, crate blocking that does not rest on the finished face, photos of packed units before sealing.

That list is quality control, not paperwork for its own sake. If you sell online, treat the first production lot as a process lock. Private label manufacturing from India holds together when tooling, feeds, and inspection are written down before the purchase order, not debated after the crate lands.

The same discipline applies when granite is only one part of a collection. A stone top on a wood base fails in the customer’s eye as one product. If you pair Indian granite with a round coffee table wood end side table or a wooden foldable side table, the wood finish cannot rescue a chipped stone arris. Hospitality packages that add luxury hanging rugs or woven wall art rugs still live or die on the stone edge the guest can touch.

Supplier verification on the floor, not on a website

A CNC photo on a factory site does not prove a shop can hold an edge on coarse granite. Supplier verification means someone on your side sees the machine, the blade rack, the water delivery, and a live cut.

We handle your entire Indian supply chain from factory audits to final shipping. On the shop floor we look at the same items this article covers: whether the operator slowed the feed for a coarse lot, whether water is actually hitting the bit, whether someone is checking miter angle with a real gauge. That is how wholesale supply stays consistent across cartons, not only on the hero sample.

Track the job in language a fabricator cannot dodge. Production delays in India often start as a blade that glazed on a hard lot, a machine waiting for a quartzite-rated tool, or a recut after a gapped miter. Tracking production status should include tool condition and first-article photos of the joint, not only a note that cutting started.

Netyex is a dedicated sourcing partner in India. We sit on your side of the table. You get buyer-side representation, in-process checks, and export logistics that protect finished edges. You do not get a marked-up quote from someone who never walked the saw line.

That is the difference that matters for mid-range programs that have to hit a price and still install clean in the US, UK, UAE, and other markets. You are not paying for prestige language. You are paying to avoid a container of chipped arrises.

How Netyex runs this work inside your supply chain India program

• Factory audits focused on CNC capability, blade inventory, cooling, and calibration, not only floor space.
• Sample development and process notes locked before bulk, including grit sequence and bevel drawing.
• In-process quality control on miter angle, chip, and finish, with photos you can use in a retailer QC file.
• Packing checks so a tight joint does not chip in transit.
• Clear status so retailers, e-commerce brands, interior designers, and hospitality groups can plan inventory without guessing.

A supply chain India program built this way replaces risky factory contacts with plants you can actually hold to a feed rate. If your assortment also includes wood and textile SKUs, the same on-the-ground team can keep stone, a wooden end table program, and wall textiles on one timeline instead of three unverified conversations.

FAQ

Why does coarse-grained granite chip more at the edge than black Indian granite?

Large crystals can dislodge at grain boundaries when the tool load hits a single mineral instead of a tight mass of small grains. Fine Indian blacks and stones such as Nero Impala share cutting stress across many crystals, so chips stay small. Coarse blue and brown granites need slower feeds, a finer starting grit, and a bevel that is not knife-sharp.

Which bevel should I specify if I want fewer chips without changing the design too much?

Start with an eased edge or a half-bevel that has a small radius at the corners. Save crisp 45-degree bevels, deep ogees, and thin miters for lots you have already proven on the actual block. If the design is fixed, add passes and drop the finish feed rather than hoping polish will hide a missing crystal.

What CNC numbers should I put in a purchase order to an Indian factory?

Name the bond, the profile, peripheral speed or RPM, feed in mm/min, scoring depth, water flow, and grit steps. For many granite profiles, roughing at 800 to 1,200 mm/min and finishing at 400 to 600 mm/min is a sane starting band. Miters and waterfalls belong closer to 300 to 600 mm/min with 2 to 3 mm passes. Adjust down for coarse, hard lots.

Does wet cutting stop chipping?

Wet cutting improves surface finish and cuts fine dust compared with dry work, and it keeps the bond cooler so the tool is less likely to glaze and tear the edge. It is not a substitute for geometry and feed. Ultrafine particles may still be present, so water at the bit is necessary and not the whole program.

Can I approve a sample from a different granite colour and still trust the edge?

No. Crystal size and mineral mix change how the edge fails. Approve the production lot. If the factory offers a leftover black offcut for a coarse brown job, that sample does not represent your risk.

How do I keep edges intact after they leave the factory?

Specify foam or edge guards on every finished arris, blocking that does not rest on the face, and photos of packed units before the crate is sealed. A shop-floor measurement that never survives the port is not a delivered product.
