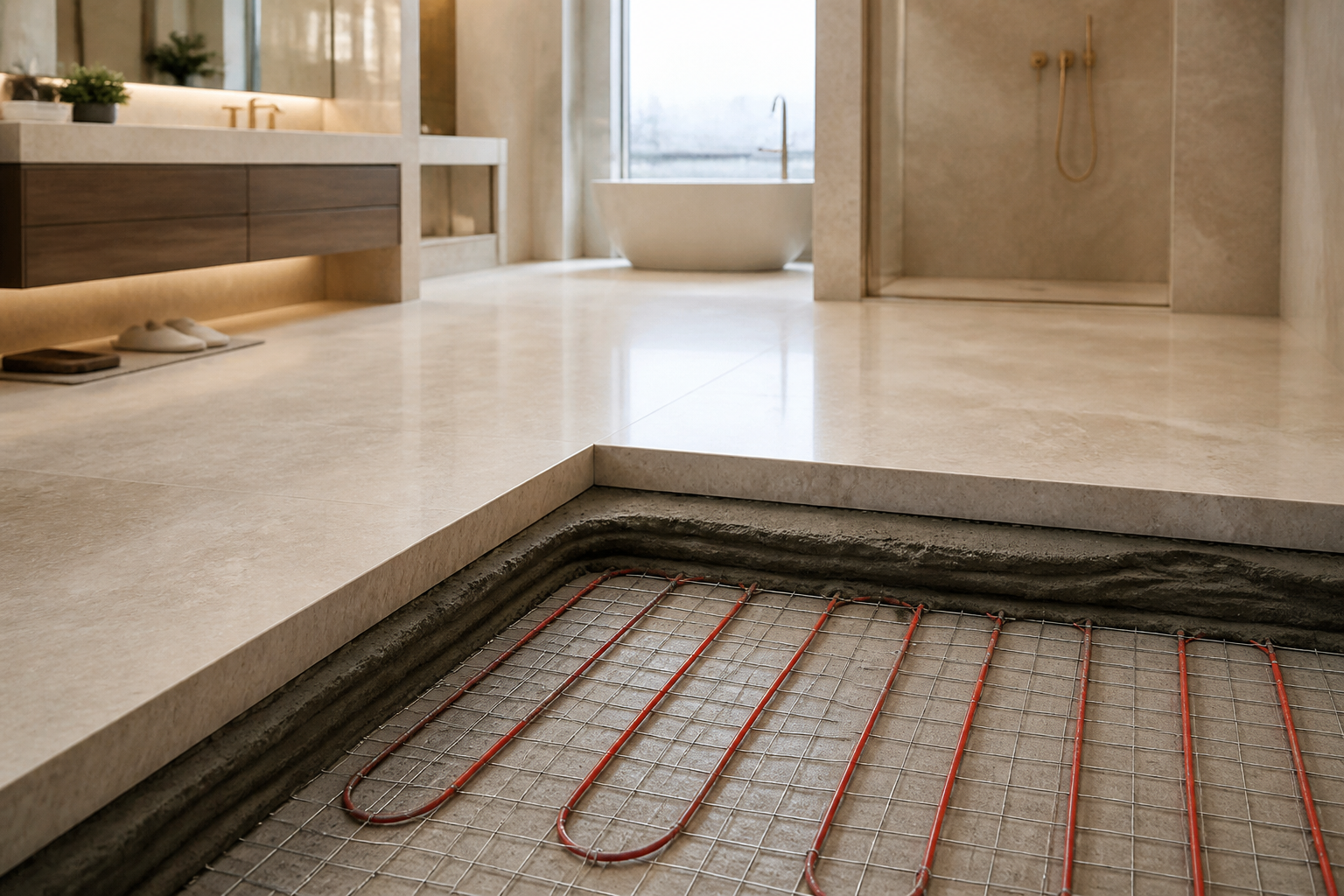

Installing Hydronic Radiant Heating Under Thick Marble Flooring: Mortar Bed Deflection and Thermal Expansion

## Installing Hydronic Radiant Heating Under Thick Marble Flooring: Mortar Bed Deflection and Thermal Expansion

Thick marble over a hydronic floor looks calm in a rendering. On a job it is a heavy, rigid finish sitting on a heat source that cycles every day. If you get the mortar bed, the substrate stiffness, or the water temperature wrong, you do not get a cozy luxury floor. You get cracked grout, open joints, and tiles that sound hollow when you tap them.

This guide is for importers, hospitality buyers, interior designers, and distributors who specify Indian marble into the US, UK, UAE, and similar markets, then expect that stone to sit over warm-water tubing. You will see how deflection and thermal expansion actually show up on site, how thick marble changes the heat path, and how custom product sourcing in India has to match the heating spec, not just the look of the slab.

Netyex is a dedicated sourcing partner on the ground in India. We work on your side of the table, from factory checks through export logistics, so the marble you ship is calibrated, documented, and fit for a heated assembly.

Why hydronic heat and marble work well together

Hydronic radiant systems move warm water through PEX tubing. The loops connect to a boiler, a water heater, or a heat pump. For large rooms or whole-home work, that setup usually costs more to install than electric mats, yet it runs cheaper over time and stores heat in the mass of the floor. Industry hydronic guides note that hydronic loops are the practical choice when you are heating big marble areas rather than a single powder room.

Marble itself is a strong heat conductor. Polished marble typically sits around 2.0 to 3.5 W/m·K, which is well above wood or laminate, so the surface warms evenly once the assembly is right. That conductivity is exactly why designers like marble bathrooms over radiant heat. The warmth also deepens the stone’s translucency. That visual payoff is real. It is also the reason you cannot treat marble like a floating vinyl plank.

Stone installers still have to protect the tubing, keep mortar in full contact, and line expansion joints up with the heating layout. The tile crew and the heating crew have to share one plan, or the floor fails at the interface.

Thick marble is not the same as standard tile

“Thick” in this context usually means calibrated tile or slab in the 18 to 30 mm range, or even heavier feature pieces. Many stone suppliers recommend keeping natural stone at or under 30 mm if you want efficient heat transfer. Go thicker and you gain thermal mass, which can feel luxurious once the floor is up to temperature, but you also slow the response and raise the load on every layer below.

That extra mass matters for two reasons.

First, weight. Marble is dense. A mortar bed that would pass under ceramic can sag under stone. Any bounce in the substrate travels through the thinset and into the tile. Stone does not flex. It cracks.

Second, thermal gradient. Heat has farther to travel through a thick piece. If the water is too hot, or if the thermostat slams on and off, the bottom of the marble expands before the face does. That is thermal shock. Large-format thin tiles are the most sensitive, but thick pieces still fail when the temperature swing is abrupt. Slow ramp rates, smaller modules where the stone is marble, and a hard cap on floor temperature inside the adhesive maker’s range are the usual controls.

If you are buying from India, thickness is not a brochure word. It is a measured number. Export buyers commonly hold calibrated Indian marble to a tight tolerance, often ±1 mm, because a 2 mm step between tiles becomes a stress riser once the floor starts cycling. Makrana White, Ambaji White, and similar export grades can meet luxury specs at a mid-range project cost when you buy to those numbers, not to a photo of a stacked pile.

Mortar bed deflection: the failure you feel before you see

Deflection is how much the floor assembly bends under load. Industry standards from the Tile Council of North America and the Natural Stone Institute treat ceramic and natural stone differently. For standard ceramic tile, L/360 of the span is the usual minimum. Natural stone needs a much stiffer substructure. The maximum deflection limit for stone tile is L/720 of the span. For marble over radiant heat, that means a concrete slab or a backer-board system designed to stay within L/720, not the ceramic number. If a wood-framed floor already bounces when you walk it, it is not a marble floor yet. Deflection that ceramic might tolerate will open grout and then crack stone, because stone tiles are rigid.

Hydronic heat adds a second movement source. The floor is not only carrying people and furniture. It is warming and cooling. A mortar bed that is too thin, too wet, or full of voids will crush locally over tubing or over the high points of a panel. Those voids become cold spots. Cold spots become stress concentrations. Stress concentrations become cracks that follow the grout lines, then jump into the stone.

A few rules keep the mortar bed honest:

• Design the structure first. Sister joists, add plywood, or pour a proper slab before anyone talks about marble selection.
• Keep the mortar in full contact. Large-format stone (over about 15 inches in any direction) needs a large-format, polymer-modified, medium-bed mortar so the back of the piece is fully supported.
• Use mortars rated for radiant service. Standard unmodified thinset can go brittle after repeated heat cycles.
• Do not let the heating layout dictate a skinny mortar path over a tube. If the tube crowns, the marble sits on a ridge.

Traditional hydronic jobs bury PEX in concrete or gypcrete. Panel systems have become common under marble because they cut the pour and still spread heat. Pre-grooved panels with aluminum faces conduct across the stone above, and once the tubing is pressure-tested, the tile crew sets marble in thinset or mortar on that surface. The risk is the same as a mud bed if the panel is springy or if the marble only bonds on the high spots.

Height is a site problem, not a catalog problem. Tubing, slab or panels, mortar, and thick marble can add 3 to 5 inches compared with a thin finish. That shift hits door undercuts, accessible thresholds, and transitions into wood or carpet. New construction absorbs it. Retrofits often cannot. Plan the stack before you lock the marble thickness in a purchase order.

Thermal expansion: marble, mortar, and the heat source do not grow at the same rate

Every layer expands when it warms. They do not expand equally. In mild weather the floor may sit only a few degrees above room temperature, yet in peak heating it can run about 15°F warmer. The board, the mortar, and the stone have different coefficients of thermal expansion. Without a membrane or a joint plan between them, tile eventually cracks.

Marble needs even more care than ceramic. It is heavier, it can telegraph thermal stress, and polished faces show hairline cracks that a textured porcelain would hide. Best practice from hydronic marble work includes:

• Uniform coverage. Panels and tubing should run under every marble field. A cold border next to a hot field is a crack waiting for winter.
• Low-temperature water. Hydronic loops around 100 to 120°F are the usual range for marble. Hotter water speeds comfort on paper and grows expansion cracks over years.
• Slow control, not aggressive on-off cycling.
• Flexible thinset made for radiant floors, so the bond can move a little as the floor expands and contracts.
• Expansion joints that match the heating layout, not joints placed after the loops are already in.
• Manufacturer limits for thin marble and large slabs. Follow those sheets even when the stone looks stout in the crate.

An uncoupling membrane is often the layer that saves a panel system. The radiant board and the marble will not grow as twins. The membrane lets them move without shearing the bond. Skip it to save a day, and you may spend a year arguing about who cracked the floor.

A practical assembly checklist

Use this as a field brief, not as a substitute for local code and the heating engineer’s calcs.

Pressure-test the tubing before any marble goes down. Finished flooring sits on panels only after that test passes. Ceramic and porcelain set in thinset on the panel face. Marble follows the same logic, with more attention to bed thickness and joint layout.

Spacing, tube material, manifold location, and heat source choice belong in the design package before anyone orders stone. Your marble PO should wait until loop spacing and water temperature are known, because those numbers decide module size, thickness, and whether a book-matched slab is even a responsible choice over heat.

Specify Indian marble as a heated-floor product, not as a pretty crate

Hospitality groups and distributors often want Indian marble because the look is luxury and the landed cost can stay mid-range when the process is tight. That only holds if you treat “export quality” as numbers, not as a slogan.

For heated floors, ask for:

• Calibrated thickness, measured at multiple points, recorded against the PO.
• ASTM or equivalent test data when the contract ships into North America or Europe.
• A real dry-lay. Slabs on the factory floor, vein match and thickness steps checked, not photos of random stacks.
• Module sizes that suit radiant work. Huge book-matched faces look stunning. They also concentrate stress. Many heated marble floors are safer in smaller, consistent tiles.
• Edge profiles and crate marks locked in writing if you need private label manufacturing for a hotel brand or a retail line.

This is India sourcing with a technical filter. Interior designers who need cut-to-size stone for heated suites can scale that work through custom product sourcing in India rather than hoping a catalog tile happens to sit well over PEX.

E-commerce and trade brands comparing plants should read how OEM production in India versus China is shifting for custom runs. Marble is not a phone accessory, yet the same lesson applies: you buy a process, including calibration, packing, and documents, or you buy a delay.

Quality control that actually protects a radiant floor

A heated marble floor fails in millimeters. A proud edge, a hollow bed, a batch that wandered past the thickness tolerance, all of that shows up after the boiler is live. That is why supplier verification and on-floor quality control have to happen in India, before the container is sealed.

Netyex stays on the buyer’s side. We do not hand you a factory number and walk away. Factory identities and pricing stay confidential so your supply chain India setup is not copied by the next bidder. What you get is oversight you can audit:

• Factory-side verification before you commit.
• Sample approval against the heated-floor spec, including thickness and finish.
• Checks at production milestones, not only at dispatch.
• Pre-shipment inspection of stone and packing. Thickness measured, recorded, compared with the order.
• Wholesale supply coordination when you need volume without mixing unmatched batches.
• Export documents, loading supervision, and a clean handoff.

If a batch misses the tolerance you wrote, it should not load as standard grade. That single rule prevents more site breakage than any after-the-fact claim. It also keeps your export logistics honest, because rejected stone is cheaper to catch in Jaipur or Kishangarh than on a tower floor in Dubai or London.

You can track production status from Indian factories instead of waiting for a surprise photo the week of sailing. Heated-floor marble is a poor candidate for vague dates. The tile crew, the hydronic crew, and the GC are already stacked. Late stone does not sit in a warehouse as a minor nuisance. It sits as an open, unheated slab with tubing you cannot cover.

How Netyex fits a mid-range luxury spec

You do not need a theatrical premium-at-any-cost story to put Indian marble over hydronic heat. You need calibrated stone, a stiff assembly, low-temperature water, and a partner who represents you in the plant.

That is the difference we build into every marble program. Complete oversight. Strict quality control. Managed shipping. Buyer-side representation, not a broker chain. About Netyex is the short version: we connect importers, wholesalers, retailers, and brands with verified Indian manufacturers, and we stay on your side from audit to dispatch.

If your project also needs complementary wood pieces from the same India program, such as a round coffee table or a natural wood side table, start from the homepage and brief the stone first. Heat and thickness set the critical path. Everything else can follow.

FAQ

Can you put hydronic radiant heating under thick marble?

Yes, when the structure is stiff, the water stays in a moderate range, and the mortar is made for radiant cycling. Marble conducts heat well. The risk is movement and shock, not the idea of warmth under stone.

What water temperature should you run under marble?

Most hydronic marble floors are happiest around 100 to 120°F. Hotter loops raise the chance of expansion cracks. Use a floor sensor and a slow ramp, not a thermostat that hunts.

How thick can the marble be over underfloor heating?

For efficient heat, many specifiers keep natural stone at or under 30 mm. Thicker pieces store more heat and need a stronger structure. Confirm both the heating design and the stone data before you freeze the PO.

What deflection limit should the mortar bed and substrate meet?

Plan for a maximum deflection of L/720 of the span under natural stone. L/360 is the ceramic-tile minimum, not the stone standard. If the wood floor already moves underfoot, reinforce it before you add heat and marble. Radiant cycling on a live floor is a reliable way to crack rigid tile.

Do you need a special mortar over hydronic panels or slabs?

Yes. Use polymer-modified, radiant-rated thinset or medium-bed mortar with full coverage. Unmodified thinset can turn brittle. Voids under large marble create cold spots and stress points.

Should hospitality brands private-label heated-floor marble from India?

They can, if module size, thickness tolerance, crate marks, and edge profiles are locked before production. Private label manufacturing only helps when quality control travels with the brand mark.

How do you keep Indian marble batches consistent enough for a heated floor?

Measure thickness, dry-lay for color and veins, and reject out-of-tolerance pieces before loading. Supplier verification and in-plant checks beat a directory listing every time.

Is hydronic better than electric under a large marble field?

For large areas and whole-home systems, hydronic usually wins on running cost and heat mass, especially when tubing sits in a slab. Electric mats can still suit small rooms. The marble rules on temperature and deflection do not change.

Plan the stone and the heat as one order

If you are specifying thick marble over hydronic loops for a hotel, a showroom, or a residential program, do not split the stone buy from the heating spec. Send us the thickness target, the module size, the destination market, and the floor assembly. We will run custom product sourcing, factory checks, and shipping as a single supply chain India job.

Contact us with the project brief. Netyex will represent you in India, keep the calibration honest, and get the marble to your site in a condition your heating contractor can actually set.
