## Identifying Bowing and Camber in Polished Granite Slabs During Pre-Shipment Audits

If you import polished granite from India, bowing is the defect that looks harmless in a warehouse photo and expensive on a fabrication table. A slab can photograph well under factory lights, pass a quick walk-by, and still refuse to sit flat on a CNC bed. That gap shows up later as uneven joints, extra adhesive, rejected countertops, or a cladding panel that will not plane with its neighbour.

This guide shows you how to identify bowing and camber during a pre-shipment audit, which numbers Indian export units actually work to, and how Netyex runs the checks on the factory floor so you are not relying on a stamp from an unverified contact.

Why flatness is a commercial issue, not a cosmetic one

Flatness is not a visual attribute. It is a measurable structural condition. As bbvimpex.com notes, surface plane accuracy affects installation performance, fabrication precision, and commercial acceptance. A few millimetres of bow across a 3 metre slab can force costly adjustments at destination, especially on large-format work and tight joint alignment.

Fabricators using CNC bridge saws need the slab to rest flat on the cutting table. Surface deviation throws off edge squareness and finished dimensions. Kitchen programs, book-matched vanities, and façade cladding are unforgiving. If you are buying through custom product sourcing or a hospitality rollout, treat plane accuracy as a go/no-go parameter.

Calibration of thickness and plane also cuts adhesive and levelling issues during install. flodeal.com lists warped slabs as non-acceptable because they cannot be fabricated or installed properly. That risk sits with you if the check happens after the container is already at sea.

Bowing versus camber: what you are actually looking for

Buyers often use warp, bow, and camber as if they mean the same thing. In a pre-shipment audit you should separate them.

Bowing is a curve along the long axis of the slab. The face is concave or convex relative to a true plane. On polished granite you often see a gentle banana shape: the centre sits high or low compared with the ends. Bowing can run along the length, across the width, or both (a dish or a saddle).

Camber is an arch, typically convex along the length, like a very shallow bridge. In structural steel, camber is sometimes designed in. In polished granite slabs it is a defect. A cambered slab will rock, leave a gap under a straight edge, and print through as an uneven joint line.

Twist (sometimes called wind) is a related condition. Opposite corners sit out of plane. A slab can stay within bow limits along the centreline and still twist enough to fail a diagonal check.

None of these show reliably in a phone photo taken from above. Overhead lighting can hide a bow because the polish still looks uniform. You need a straight edge, a feeler gauge, and a written method.

What export markets actually accept

For export-grade polished granite slabs at 18-20 mm thickness, typical commercial expectations reported by Indian exporters include:

• ±0.5 to ±1.0 mm over 1 metre of length
• No more than 2-3 mm total bow across the full slab length, generally 2800-3200 mm

Project specs can be tighter, particularly for façade cladding or book-matched installations. bbvimpex.com also points out that minimum values in published standards are often not enough for architectural work. Buyers frequently demand tighter control than the baseline.

Flatness is commonly referenced under:

• ASTM International, particularly ASTM C615 for granite dimension stone
• European standards including EN 1469 (slabs for cladding) and EN 12058 (slabs for floors and stairs)

Treat those as the floor, not the ceiling. Write the numbers you need into the purchase order: deviation per metre, maximum total bow, and the measurement method. If it is not in the PO, you will argue about it on the loading bay.

A simple table helps your inspector and the factory agree before production starts.

Those thickness and warping checks sit alongside size, diagonal difference, gloss, and surface defects in importer-facing QC tables such as the one on flodeal.com. Flatness is one line item. It is the line item that most often gets skipped when someone only walks the pile with a torch.

How to measure bowing and camber on the factory floor

Visual assessment is not enough for export shipments. A structured procedure in Indian export units typically includes:

1. Place the slab on a level, well-supported inspection stand, or on the A-frame in a way that does not add extra bend.

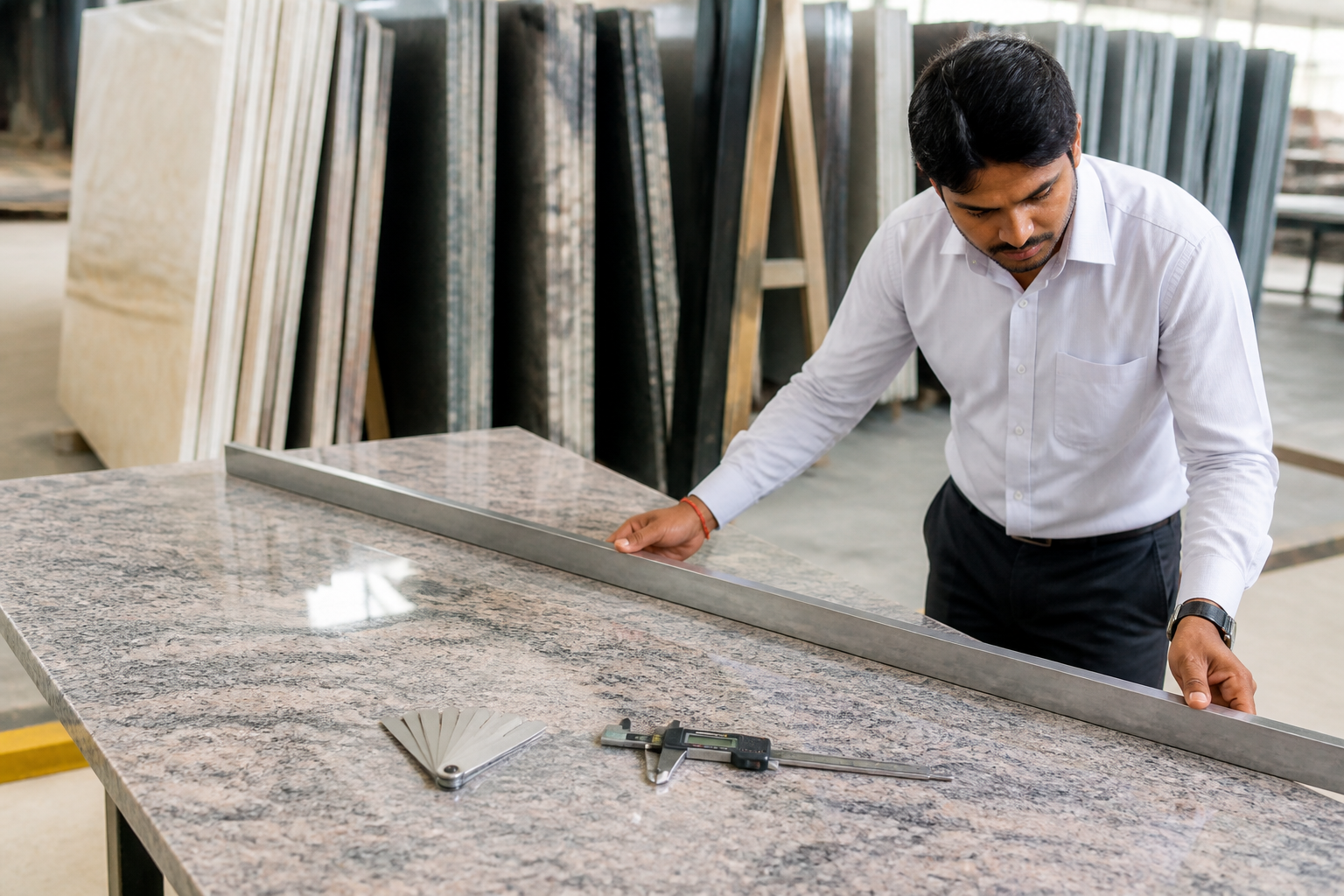

2. Use a 2-metre precision straight edge along the length, across the width, and on both diagonals.
3. Measure the maximum gap with a feeler gauge at several reference points, not only at the centre.
4. Record the worst reading per direction, not an average.
5. Cross-check thickness at corners and centre with a calibrated digital gauge so a thin edge is not mistaken for a plane error.

bbvimpex.com describes this mix of straight-edge testing, feeler gauges, diagonal plane verification, and digital thickness cross-checking. Inspection must happen before packing. Once slabs are in a crate, you cannot reconstruct a true plane reading without unpacking.

Polish quality is a separate check, but it can mislead you. A properly polished face shows a sharp reflection of overhead lighting. dynamicstonetools.com recommends holding a straight fluorescent tube reflection as a practical test for waves. Wavy or blurred reflections can signal polish issues and surface irregularity. Do not confuse a polish wave with structural bow. Confirm with the straight edge.

For honed, flamed, leathered, or bush-hammered finishes, reflection tests are weaker. Texture should still be even, as cssstone.com notes, but plane accuracy still needs the mechanical check.

If you are buying precision granite (machine bases, surface plates) rather than architectural slabs, metrology goes further: laser interferometers, electronic levels, and coordinate measuring machines, with calibration against international standards. unparalleled-group.com treats an in-house metrology lab and sample inspection reports with actual measured values as proof of capability. For commercial slab programs you rarely need micron-level gear. You do need calibrated straight edges, feeler gauges that are not worn, and records that show numbers rather than a stamp.

Where bowing starts in Indian granite production

Bowing is not always a packing accident. It can enter at several stages.

Block stress and sawing. Residual stress in the block, aggressive gang-saw settings, or uneven support during sawing can leave a slab with a built-in curve.

Resin and mesh backing. Uneven resin coats or mesh applied while the slab is not fully supported can pull the face as the resin cures.

Polishing pressure. Uneven head pressure on a polishing line can dish the centre relative to the edges, especially on thinner 18 mm material.

Storage. Slabs stored leaning at a poor angle, or stacked with uneven dunnage, take a set over days or weeks in a hot Indian yard.

Calibration skipped or rushed. Calibration (gauging) is what brings thickness and plane into a consistent band. Skipping it to hit a sailing date is a common source of mixed lots.

A factory visit should cover the flow from block selection through cutting, polishing, dimensional inspection, and dispatch. qualconn.in is right that early inspection catches shade variation, surface defects, thickness deviation, and workmanship issues before they compound. The same logic applies to plane error. Catch it after sawing or after polish, not after the crate is closed.

Indian exporters who run a multi-stage system typically sort for colour and natural defects first, then check thickness after sawing, gloss after polish, and structure at final QC. regattagranitesindia.com outlines that sequence. Your audit should confirm the sequence is real, not a poster on the wall. Ask to see the last batch's measurement sheets.

This is also where supplier verification and quality control stop being slogans. You want evidence at each gate: photos of the straight-edge check, marked drawings, finish close-ups, and packing photos. hrststone.com describes inspection before cutting, before secondary fabrication, dry lay before packing, and packing before shipment, with evidence the buyer can review. That staged record is what you should demand in any supply chain India granite program.

What a pre-shipment audit should actually cover

A useful audit is not a walk-through with a camera. Define the scope in writing.

Sampling. For mixed commercial lots, agree an AQL and a sampling plan. Third-party inspectors commonly use ISO 2859-1. unparalleled-group.com recommends specialist stone inspectors or global PSI firms for random sampling of finished goods, dimensions, surface quality, and packaging. If the lot is a project set (book-matched pairs, numbered façade sequence), you may need 100% plane checks on the visible faces, not a random draw.

On each sampled slab:

• Straight-edge bow and camber in length, width, and both diagonals
• Thickness at five points (four corners plus centre)
• Edge chips that could hide a true reading or fail in transit
• Face defects: pits, resin patches, cracks, dull zones
• Gloss uniformity on polished stock
• Mesh and resin condition on the back, because a pulling mesh can increase bow after the slab leaves the yard

Lighting and handling. nakulinternational.com stresses good lighting for polish, colour, and resin, plus checks for hidden cracks at edges and corners. Combine that with thickness and flatness. Do not let the factory choose only the best-lit bay.

Records. A pass/fail stamp is not enough. You want actual millimetre readings against the PO tolerances, slab IDs, and photos of the gauge in place. If a factory cannot produce that, they are not ready for your wholesale supply program.

Track the lot while it is still in process. Waiting until stuffing day is how bowed slabs get mixed into a crate marked ready. Use the same discipline you would for any other Indian factory: how to track production status from Indian factories and how to track production status with an India supplier apply here as much as they do for furniture or private label goods.

Packing that can create bowing after a clean audit

A slab can leave the polishing line within tolerance and arrive bowed because of the crate. Export packing is part of the quality system.

Watch for:

• Level crate base construction. A twisted wooden base will load the slab in a curve.
• Uniform support along the full bottom edge. Point supports create a hinge.
• Correct A-frame angle. Too upright or too shallow concentrates weight wrongly.
• Controlled steel strap tension. Over-tight straps can bow thinner slabs.
• Shock-absorbing separation materials so polish faces do not telegraph pressure points.

bbvimpex.com lists those packing controls explicitly. Indian ocean-freight practice also relies on ISPM-15 wooden crates, foam or plastic wrap, thermocol corner protection, steel strapping, and a container stuffing plan, as summarised by regattagranitesindia.com. Moisture, vibration, and stacked weight over a multi-week voyage will find any weak support.

Photograph open crates, closed crates, and loading. If a claim arises, those images are the difference between a productive discussion and a stalemate.

Write the numbers into the order, then audit against them

Your commercial documents should state:

• Defined flatness tolerance per metre
• Maximum allowable total bow and twist
• Inspection records required before shipment
• Reference standards (ASTM C615, EN 1469, or EN 12058, plus your tighter project values)
• Packing method and A-frame specification
• Sampling plan and who attends the pre-shipment inspection

Do not accept vague lead-time promises that skip calibration or final plane checks. Rushed finishing is a known cause of production delays and of quality escapes. A sailing date that depends on skipping gauging is not a sailing date you want.

ISO 9001 is a useful baseline for documented processes. It does not guarantee a flat slab. Ask for certificates, then verify the measurement tools and a sample inspection report with real values. That is supplier verification in practice, not a directory listing.

How Netyex handles granite QC for international buyers

Netyex is a dedicated sourcing partner in India. We represent you on the ground, not the factory. That distinction matters when a millimetre of bow will cost you a fabrication day in the US, UK, or UAE.

For granite and other hard goods we:

• Verify the manufacturer before you commit, including process flow, calibration practice, and whether inspection reports contain measurements
• Build your spec into the order: plane tolerance, thickness band, finish, packing
• Run in-process and pre-shipment quality control with straight-edge and thickness records, not photos alone
• Coordinate export logistics so crates, stuffing, and documents match the inspected lot
• Keep you informed while production is running, so a bowed batch is rejected in India, not after discharge

If you are an interior designer scaling stone tops or cladding through custom product sourcing in India, or a brand using private label manufacturing alongside stone programs, the same buyer-side model applies. We do not send you into unverified supplier directories. We do not add a silent middleman markup and disappear at stuffing. You get dedicated representation, a transparent process, and full export coordination.

Some buyers compare India with China for custom work. Capacity, finish control, and communication still decide the outcome. Our view on OEM production in India versus China is simple: the factory only works if someone accountable is checking the lot before it ships.

FAQ

What is an acceptable bow on a polished granite slab for export?

For 18-20 mm polished export slabs, many buyers work to ±0.5 to ±1.0 mm over 1 metre and a total bow of 2-3 mm over a 2800-3200 mm length. Architectural cladding and book-matched work often need tighter numbers. Put the limit in the purchase order and measure it with a straight edge and feeler gauge, not by eye.

Can I see bowing in slab photos?

Usually not. Overhead polish can look even on a bowed face. You need physical plane checks. Ask for photos of the straight edge in place with the feeler gauge reading visible, plus the recorded millimetre values.

Is ASTM C615 enough on its own?

ASTM C615 and the EN cladding and flooring slab standards define dimensional and surface regularity tolerances. Experienced exporters know that project buyers often require tighter control than the minimum. Use the standard as a reference, then specify your own per-metre and total-bow limits.

When should flatness be checked?

After polishing and calibration, before packing, and again if slabs are stored for a long period. Packing itself can introduce bow, so crate construction and strap tension belong in the same audit. Staged inspection, as outlined in stone QC practice, prevents a defect from moving downstream.

Do I need a third-party inspector as well as a sourcing partner?

For large or high-risk lots, a specialist stone inspector or a global PSI firm adds an independent sample against an agreed AQL. Netyex still represents you throughout India sourcing, so factory access, spec enforcement, and logistics stay coordinated. The inspector is extra eyes. You still need someone on your side managing the supply chain.

What packing details should I freeze before production?

ISPM-15 crates, level bases, full-edge support, agreed A-frame angle, strap tension limits, face protection, and corner guards. Require open-crate and loading photos tied to slab IDs.
