Fiberglass vs Steel Rodding: Preventing Stress Cracks at Undermount Sink Cutouts

## Fiberglass vs Steel Rodding: Preventing Stress Cracks at Undermount Sink Cutouts

If you import stone tops or kitchen assemblies from India, the undermount sink cutout is where a sound slab can fail. The fabricator removes a large block of material, then hangs a sink from what is left. The front and back rails get thin. Corners take the load. Without reinforcement, those rails crack.

Rodding is the standard fix: steel or fiberglass bars set into the underside of the slab, fully bedded in adhesive, so stress does not sit in a few inches of unsupported stone. Getting that right is a shop skill. It is also a quality control problem when you run India sourcing and wholesale supply at container scale. A polished face can look perfect while the rail under the bowl is a future claim.

This article compares steel and fiberglass rods, shows how a competent shop should install them, and lays out what you should demand before a crate leaves the factory.

Why the sink opening is the weak point

A typical kitchen sink opening is about 30 inches by 18 inches. That is roughly 540 square inches of stone taken out of a slab that may only be 36 inches from front to back. The bridges left on either side of the bowl are often only 3 to 6 inches wide. dynamicstonetools.com notes that stress concentrates at the corners and along the cutout perimeter. A knock during install, the weight of the bowl and plumbing, or daily vibration can start microcracks. Those cracks grow. Weeks or months later you see a split at a corner or a fracture that runs across the rail.

Heavier undermount bowls make this worse. Fireclay, thick composite, and large farmhouse sinks put more shear on the adhesive and more bending on the remaining stone. buildmatinsight.com is clear that the countertop needs high flexural strength. Quartz and granite can take that load. Laminate and thin marble often cannot, especially under a loaded fireclay basin.

If you buy finished tops from Indian granite and quartz shops, this is structural, not cosmetic. Uninspected production runs that skip rodding to save a few minutes per slab are a common reason importers get calls after install in the US, UK, or UAE.

What support rods are supposed to do

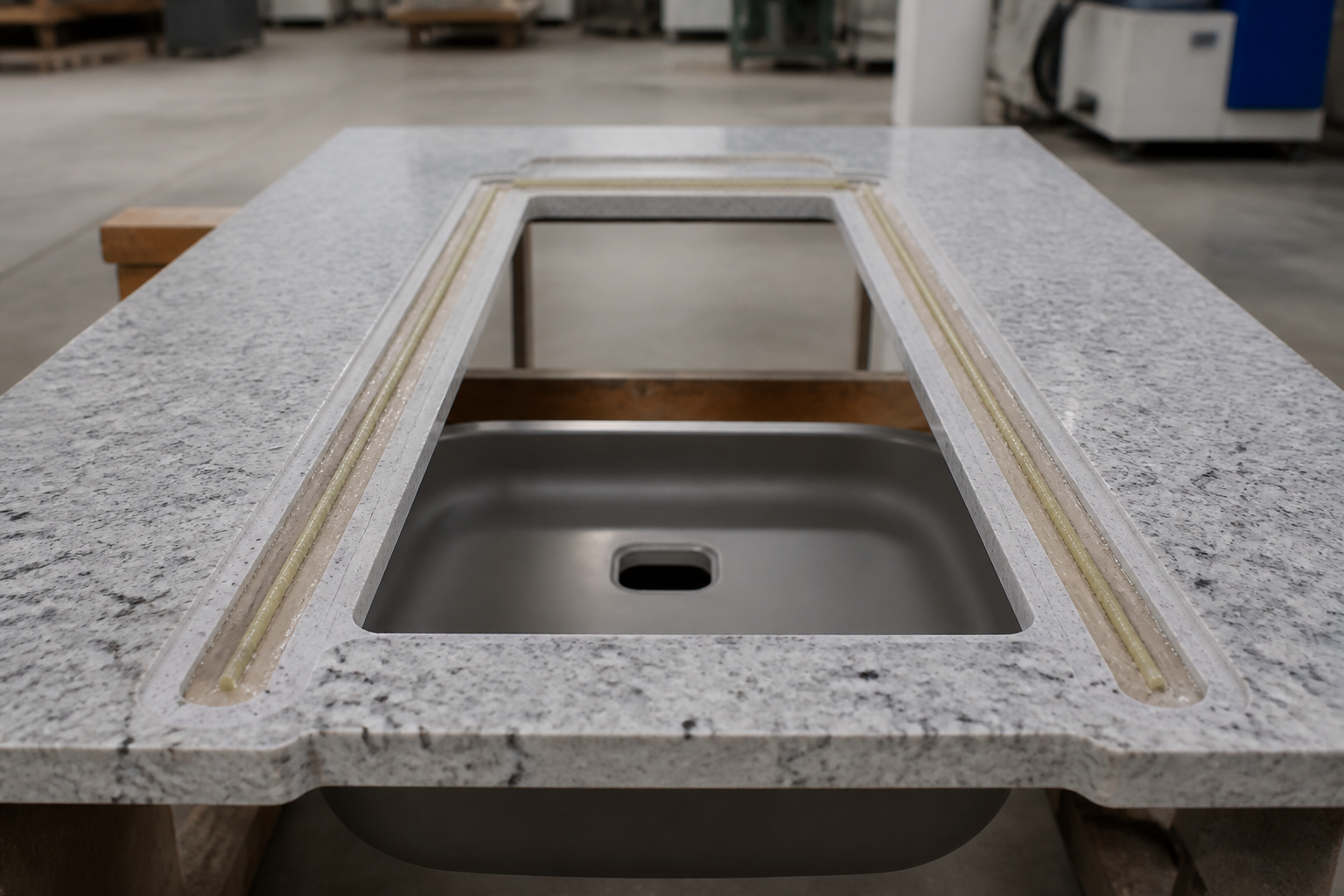

Support rods sit in grooves routed into the underside of the slab around the sink opening, then get fully bedded in epoxy or a two-part stone adhesive. floform.com describes the job in plain terms: the rods spread weight and stress, keep the weakest area from cracking, help the top last, and keep the job inside manufacturer warranty and code expectations.

Standard practice is to run rods perpendicular to the main stress, usually one rod on each long side of the opening, about 2 inches in from the cutout edge. Large farmhouse or double-bowl sinks often need a third rod along one of the bridges. Some shops also set rods parallel to the front and back edges of the opening. The layout should match the sink template, the remaining rail width, and the stone type.

Carbon fiber shows up on some premium jobs. It is light and strong. For most mid-range wholesale supply, you will see steel or fiberglass.

Steel rods: still the shop workhorse

Steel rods, typically 3/8 inch or 1/2 inch in diameter, remain the default in stone shops. They are stiff. They do not sag under load the way a more flexible bar can. You can use a relatively small diameter and still get real reinforcement. Installation is familiar: cut to length, set in a routed channel, encapsulate.

The risk is rust. If water finds the rod over years, steel can corrode and expand, and that expansion can damage the stone from the inside. Professional practice assumes some long-term moisture. The rod must be fully wrapped in epoxy, with no bare ends. Some fabricators add a small relief path so vapor does not pool against the metal. Incomplete glue lines are a reject, not a punch-list item.

That moisture risk is not theoretical in India. Slabs sit in humid yards through monsoon months. Containers sweat on long ocean legs. If a shop leaves steel ends exposed or glues into a dusty channel, corrosion can start before the top ever reaches a kitchen. jiyuansteel.com argues that steel holds tensile strength and shape under prolonged stress better than fiberglass in demanding uses. For dense Indian granite, that stiffness is usually what you want, provided the bar is sealed.

Fiberglass rods: better against moisture, softer under load

Fiberglass rods do not rust. That is the real advantage, and it matters in wet kitchens, coastal properties, and any job where the sink deck will see standing water. They are lighter and easier to cut in the shop. You do not need to chew through steel.

The tradeoff is rigidity. Fiberglass flexes a little under load, so shops often step up to 7/16 inch or 1/2 inch to get comparable strength. It costs more than steel and does not machine as cleanly. Many fabricators keep it for moisture-heavy or higher-spec work rather than every kitchen top. dynamicstonetools.com treats steel as the everyday choice and fiberglass as the alternative when corrosion is the bigger threat.

sterplas.com makes a similar industrial comparison: fiberglass composites win on corrosion and weight, steel wins on stiffness and long-term load without creep.

If your private label manufacturing spec calls for coastal villas or hotel kitchens with heavy wash-down, write fiberglass (or fully encapsulated steel) into the drawing. If you are shipping standard granite kitchens to drier inland markets, steel with full epoxy cover is usually enough.

Steel vs fiberglass at a glance

Neither rod type saves a bad cut, a weak rail, or a sink that was never supported in the cabinet.

How the cutout should be built

A competent Indian fabricator will not freehand a sink hole and hope. The sequence is boring on purpose:

1. Measure the actual sink, not a catalog drawing that may be off.
2. Build or print a template and mark the slab.
3. Cut clean, chip-free edges with the right tooling.
4. Route underside grooves for the rods, set them, and epoxy them in.
5. Polish and seal so water does not sit in the cut edge.

floform.com lists the same steps: precise measurement, template, strategic reinforcement, clean edges, then polish and seal. If a factory skips the template or glues rods into dusty, shallow channels, you will not see the failure in a photo of the polished face. You will see it after the top is in a kitchen thousands of miles away.

That is why supplier verification has to include the shop floor, not a brochure. You want to know they own a CNC or a disciplined template process, that they stock rod material, and that they have a written spec for epoxy type and channel depth. A dedicated buyer-side team in India can watch an in-process piece, not only a finished sample.

The sink and the cabinet still carry load

Rodding reinforces the stone. It does not magically float a heavy bowl. For undermount installs, especially with dense materials, the cabinet needs a cradle or internal frame that takes weight off the countertop and down to the floor. gardenspace.blog is blunt: without that support, shear on the adhesive can let the sink drop.

Sink material matters too. Stainless steel is a common undermount choice because it handles the hanging load without the mass of fireclay. higoldsink.com notes that the bowl has to live with weight, tension, and long-term stress from a suspended install. If you source stainless from India, futurasink.com recommends SS 304 and about 1 mm thickness, plus accurate cutting and professional install. Pair a thin, poorly gauge-controlled bowl with an un-rodded granite rail and you stack two failure modes.

When you write a custom product sourcing packet, specify rod type, rod diameter, channel location, epoxy, sink grade, and cabinet support as one system. Splitting those across three vendors with no one owner is how mid-range jobs go wrong.

What this means for your supply chain in India

India cuts a lot of granite, quartz, and marble for export. You can buy well. You can also buy from a workshop that subcontracts finishing, skips rods on a rushed batch, and quotes a lead time it cannot keep. Unverified supplier directories will not tell you which is which. Middleman price inflation often hides the fact that nobody on your side walked the line.

Netyex is a dedicated sourcing partner in India for importers, wholesalers, retailers, and brands. You are not handed a list of factories and left to negotiate over chat apps. You get buyer-side representation: factory checks, in-process quality control, and export logistics managed as one chain. That is the difference between a drawing that says "rod the sink" and a crate that actually contains rodded tops.

For stone and kitchen work, that oversight should include:

• Pre-production sample approval, including a photographed underside of the sink rail so you can see the rods and glue.
• In-process checks while channels are cut and rods are set, not only after polish.
• On-site or third-party pre-shipment inspection against your spec, including rail width, rod count, and encapsulation.
• Honest capacity and lead times from the real producing unit, not a trading desk.

The same discipline applies when your order is not stone. Interior designers and hospitality groups often ship a kitchen package with dining and lounge pieces from the same program. If you are building that kind of container, you can add verified furniture such as a round coffee table, a Sheesham indian rosewood wood round coffee table, or a natural wood side table wooden stool. Textile workshops in the same supply chain India buyers already use for interiors produce luxury hanging rugs and handwoven wall hanging rugs that finish adjacent rooms. The point is one accountable partner, not a pile of unvetted contacts.

Netyex sits in the mid-range: you pay for inspection and coordination, not for a prestige markup and not for a bargain that depends on skipping steps. Private label manufacturing, bulk orders, and mixed containers are normal work, as long as the spec is written and checked.

Spec language you can put on a PO

If you want fewer arguments later, put numbers on the purchase order:

• Rod material: steel (epoxy encapsulated) or fiberglass, named.
• Diameter: 3/8 inch steel minimum for standard granite rails, or 1/2 inch where rails are narrow or sinks are heavy. Fiberglass at 7/16 inch or 1/2 inch.
• Placement: one rod each long side, about 2 inches from the cutout. Third rod for farmhouse or double bowls.
• Channel: clean routed groove, full-length bedding, no voids, no exposed metal.
• Rail width: minimum remaining stone at front and back, measured after cut.
• Sink: material, grade (for stainless, SS 304), thickness, and whether the cabinet maker supplies a cradle.
• Evidence: underside photos of every sink cutout, or a defined AQL with random underside shots.

Ask the factory to confirm they will not substitute rod type without a written change. Quiet substitution is a classic cost cut on uninspected production runs.

FAQ

Do all undermount sink cutouts need rodding?

Almost all of them benefit, and harder stones such as granite are the usual case for it. If the remaining rails are narrow, the sink is large, or the stone has natural fissures, treat rodding as required, not optional.

Is steel or fiberglass better for Indian granite kitchens?

Steel is the default because it is stiff and proven. Use fiberglass when the install is wet, coastal, or you have a customer who will not accept any rust risk. Encapsulate steel completely if you stay with metal. Humidity in Indian yards and in export containers is a reason to treat encapsulation as non-negotiable either way.

Can a factory skip rods on 3 cm material?

Thicker stone helps, but the cutout still removes the load path. Skipping rods to shave cost is a warranty problem waiting for a heavy pot or a bump on the sink rail. Do not accept "we never rod 3 cm" without engineering that matches your sink and rail width.

What should an inspector look at?

The underside of the cutout, rod count and orientation, glue fill, remaining rail width, edge chips, and whether the sink template matches the bowl you are shipping. Also check that steel ends are not left bare. Face-only photos are not enough.

Does the sink material change the rodding spec?

Yes. A light stainless undermount stresses the stone less than a fireclay farmhouse trough. Heavier bowls need more rod capacity and a cabinet cradle. Do not copy one spec across every SKU.

How do I avoid bad stone suppliers in India?

Do not buy from an unverified list. Have someone on the ground confirm the real factory, watch a production run, and hold shipment until the underside matches the drawing. Misleading lead time promises often come from trading desks that do not control the saw. Netyex is built for that kind of supplier verification and export logistics, with one specialist on your account rather than a rotating middle layer.

Can I source the tops and the rest of the interior together?

Yes. Many US, UK, and UAE buyers combine stone or kitchen hardware with furniture and textiles on one program. Pieces such as a round coffee table wood end side table, a wooden foldable side table, or traditional wall hanging rugs can ride the same quality process, as long as each category has its own inspection checklist.
