Diamond Multi-Wire Saws vs Traditional Gangsaws: Cutting Kerf Loss on Brecciated Marble

## Diamond Multi-Wire Saws vs Traditional Gangsaws: Cutting Kerf Loss on Brecciated Marble

When you buy brecciated marble from India, the saw that opened the block decides how much stone you paid for never reaches a crate. Kerf is the groove the tool removes. On a decorative breccia, that groove is not a rounding error. It is missing slabs, extra slurry, and a higher chance of fragment pull-out along the recemented joints.

Traditional gangsaws and diamond multi-wire saws both turn quarry blocks into slabs. They do not do it the same way, and they do not waste the same amount of stone. If you run India sourcing for the US, UK, UAE, or other bulk markets, the cut method belongs on the purchase order next to colour, origin, and thickness. Get that line wrong and your container lands with material your fabricators cannot use without waste, or you overpay for a format you never needed.

This is a buyer-side briefing, not a machine brochure. You will see where thin diamond wire actually cuts kerf loss, where a gang saw still earns its keep, and how to lock the cut into quality control before anyone loads an A-frame.

What kerf loss actually costs you

Kerf width is the thickness of stone turned into dust and slurry with every pass. A gang saw blade typically leaves a kerf around 3.5 mm. A thin diamond multi-wire, with a wire of about 0.35 mm to 0.50 mm, can cut a kerf near 0.5 mm. That gap is why published yield figures sit near 47 m² per cubic metre for a gang saw and near 55 m² per cubic metre for a thin multi-wire, on a 20 mm slab. Those numbers come from side-by-side machinery comparisons, not from a sales deck. See the parameter tables on wiresawcutter.com.

On brecciated marble the waste is worse than a clean-stone table suggests. Breccia already loses area to cracks, clay seams, and unstable fragments. Every extra millimetre of kerf removes stone you might have sold. It also removes the matrix that holds angular clasts in place. You feel that as broken corners, open joints on the face, and more resin work before polish.

If you are quoting hospitality or retail programs, the yield gap shows up as extra blocks per container, or as a higher landed cost per square metre. Mid-range programs feel this first. You are not buying a handful of prestige blocks for a single villa. You are filling wholesale supply with consistent slabs, then repeating the order.

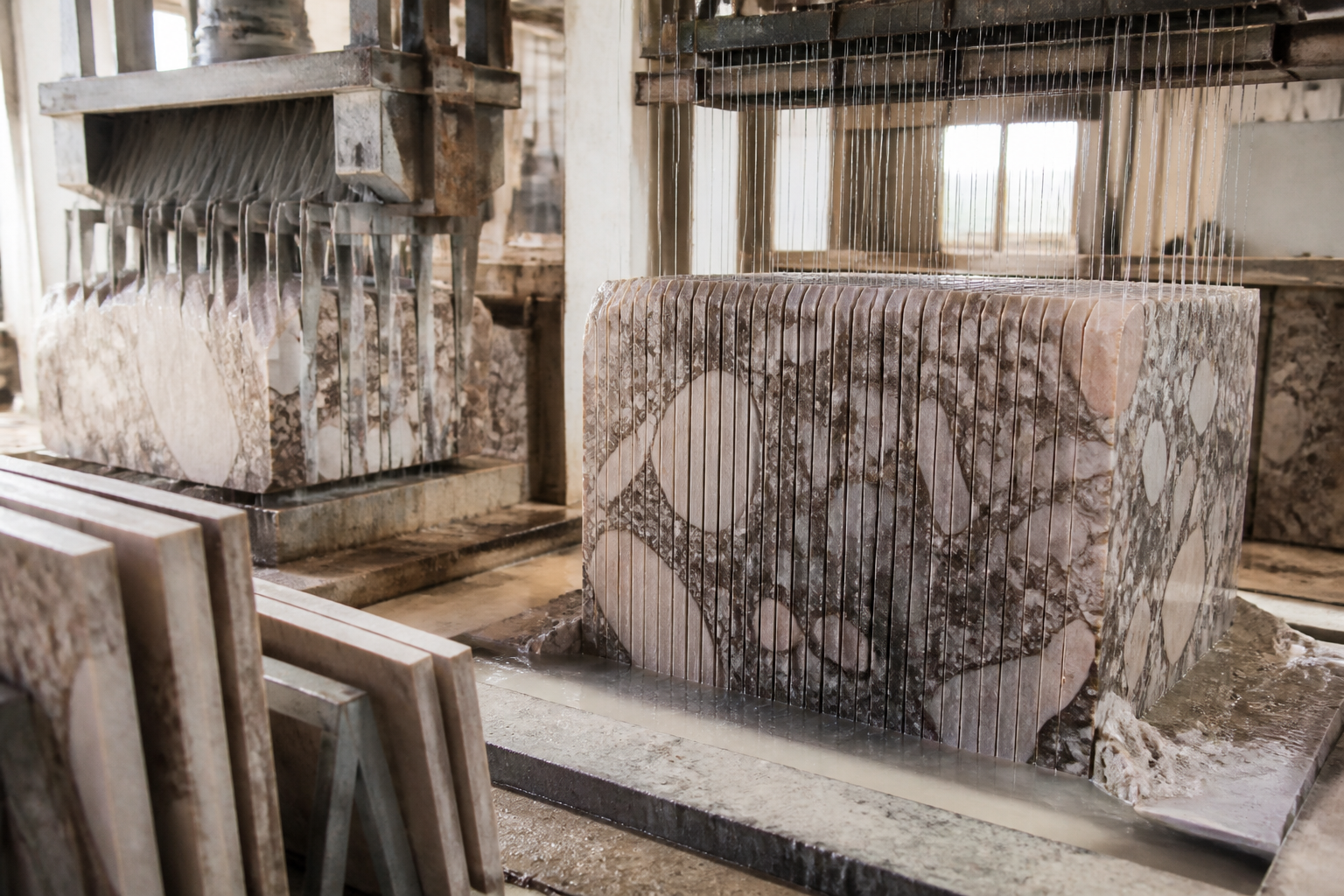

Two machines, two cutting actions

A traditional gang saw uses a frame of steel blades with diamond segments. The frame moves in a reciprocating stroke and the block is fed into the blades. It is slow, heavy, and familiar in Indian marble plants. Typical cutting time for a block is often quoted in the 8 to 12 hour range. Rated power is commonly around 300 kW. Accuracy is coarser, often in the ±2 mm to ±3 mm band. Minimum practical slab thickness is about 15 mm, according to the same comparison on wiresawcutter.com.

A multi-wire saw runs a bank of diamond-coated wires under controlled tension. Modern marble systems can run many wires at once. Some machines take as many as 120 wires. Each thin wire is only about 0.35 mm in diameter, and the kerf can be about 0.5 mm, which is why plants talk about a 0.5 mm waste band rather than a 3 mm to 4 mm slot. That layout is described in plant-level write-ups such as dinosawmachine.com. Cutting time per block can fall to 1 to 3 hours. Rated power is often nearer 150 kW. Cutting accuracy can reach ±0.3 mm, and plants can cut down to 5 mm to 10 mm slabs when the stone allows it.

A study of multi-blade and diamond-wire gang saws on five natural stones found the diamond-wire machine cut about three times faster, used about 36% less energy, and used about 50% less water. Wear on beads or sockets, and the surface quality of the slabs, also differed. A multi-criteria ranking using ENTROPY-based TOPSIS favoured the diamond-wire option on energy, quality, time, and wear. The paper is summarised on avesis.sdu.edu.tr.

Treat that study as evidence that diamond wire, as a cutting medium, tends to be faster and leaner than a multi-blade gang. Do not treat it as a blank cheque for every wire diameter on the market. The researchers compared gang-frame machines. Thin multi-wire slabbers in a modern Indian plant sit in a related family, not in the identical machine class.

Both methods can produce attractive marble slabs. Multi-wire systems keep tension under control during the cut, which is the main reason they hold a narrow, stable groove. A practical overview of gangsaw-cut versus wire-sawn marble, including how tension is held, sits on stoneexpert.in.

The thin-versus-thick wire trap

Not every multi-wire saw is a yield upgrade. Traditional multi-wire machines use thicker wires, around 5.3 mm to 7.3 mm, and produce a kerf of 5.5 mm to 7.5 mm. That is worse than a diamond gang saw on material waste. Yield can drop to about 36 m² per cubic metre on 20 mm slabs, with a 60% to 70% yield rate, against 75% to 80% for a gang saw and 90% to 97% for a thin multi-wire. wiresawcutter.com is blunt on this point: the thin-versus-traditional distinction matters more than the broad category label.

If a factory tells you they cut on wire, ask for wire diameter, kerf, and a sample of sequential slabs. The label is not the technology. A thick-wire line can waste more stone than the gang saw you were trying to replace.

Ultra-thin profiles make the gap even clearer. Gang saws struggle to cut slabs in the 0.3 mm to 10 mm band directly. The usual workaround is to saw thicker, then bond and re-saw, which adds handling and more chance of breakage. Thin multi-wire is built to take that cut in one step when the block can stand it, as noted on dinosawmachine.com.

Why brecciated marble punishes a wide kerf

Brecciated marble is a recemented rubble of angular fragments. Hardness jumps from clast to matrix. Some Indian lots also carry iron staining and clay-filled joints. The face that sold the sample can hide a weak plane 20 mm behind it.

A wide kerf does four unhelpful things on this stone:

• It removes more of the weaker matrix between clasts.
• It raises the chance that a fragment breaks free during the cut.
• It leaves a rougher face that needs more grinding, which can open pits and clay seams.
• It wastes a material that already has a lower net yield after defect mapping.

A thin wire reduces that removed band. It does not make a weak breccia strong. You still need block selection, resin treatment where the plant uses it, and honest grading. If the quarry block is already fractured, neither saw will invent a clean slab.

Gang saws still have a place. They are common, they handle large commercial volumes, and many factories keep them for bulk orders while using multi-wire for urgent or high-value exotic stone. That hybrid pattern is already showing up in plant practice, as stonemoods.com notes. For brecciated lots with tight bookmatch, thin slabs, or a high cost per cubic metre, the thin wire is usually the better cut.

Do not confuse plant slabbing with quarry extraction. Diamond wire at the quarry face often runs at 10 mm to 12 mm diameter and is there to free large blocks, not to saw 20 mm slabs. Field data from marble quarries using diamond wire saws report kerf-loss cuts of up to 62% versus older extraction methods, with block recovery above 94% in the cases studied. That is a different stage of the supply chain India story, summarised in usajournals.org. Your slab PO still has to name the plant saw.

Speed, energy, water, and the factory you can actually schedule

Time is the obvious difference. A thin multi-wire block in 1 to 3 hours versus a gang saw block in 8 to 12 hours changes how a plant absorbs a rush order. Energy follows. Roughly 150 kW versus 300 kW on typical ratings, plus the 36% energy drop in the diamond-wire gang-saw study, is not a trivia fact in Rajasthan or Gujarat. Power cuts and tariff bands affect whether the factory keeps the date you were given.

Water is the quieter cost. The same academic comparison found diamond-wire gang saws using about 50% less water than multi-blade gangs. Thin multi-wire lines also run quieter. Noise reductions of 40 dB or more against a gang-saw baseline of 70 to 110 dB(A) are cited in machinery comparisons on wiresawcutter.com. For you as a buyer, quieter and wetter-efficient plants are easier to keep on a documented schedule. They are also less likely to hide a second, slower line behind a showpiece machine.

Material cost is still the main lever. Guides aimed at plant owners now treat the shift to thin wire as a yield decision, not a fashion one, because block prices keep climbing. A clear example of that argument is on dinosawmachine.com. Your job is to capture that yield in the contract, not to assume the plant will pass it on.

Flatness, thickness, and the calibration pass you should never skip

Sawing is not the finished thickness. For export commercial marble, calibrated 18 mm or 20 mm is the usual target, held to ±1 mm. Tighter plants with automated calibrators hold around ±0.5 mm. That grinding step after sawing is not optional if you sell to high-rise or large commercial fabricators. A vein match that sits 2 mm proud of its pair is not a match. It is a lippage complaint waiting for the snag list.

Measure thickness at no fewer than five points per slab. Seven is better. Off-spec slabs should be regraded or rejected, not mixed into the lot you approved. Gang saw accuracy of ±2 mm to ±3 mm means the calibrator has to take more stock. On brecciated marble, extra grinding is how you expose clay pockets and pull out clasts that looked sound on the sawn face. Multi-wire accuracy around ±0.3 mm reduces that second cut. It does not replace calibration.

Slab flatness also differs with how the tool is guided. Gangsaw cut versus wire saw marble is a real commercial distinction, not a vanity label, because fabricators in the US and UK will notice dish and bow on large kitchen or lobby pieces. stoneexpert.in covers that split in plant language. Ask for a dry-lay of commercial faces before loading. A photo of one pretty slab is not a dry-lay.

What belongs on the purchase order

Name the stone properly. A quarry region plus a recognised commercial name is a usable line on a spec. A trade colour with no origin is not. For contracts into Europe and North America, buyers commonly require ASTM testing so performance is on paper before the stone ships. Typical marble references include ASTM C503, C170, C97, and C241, plus an absorption target. Ask for tests on the supplied lot, not a generic quarry brochure from three years ago.

Write the cut in plain words:

• Material and origin, quarry region named
• Cut: gangsaw or thin multi-wire, with wire diameter stated if it is wire
• Sequential blocks identified if you need bookmatch
• Nominal thickness: 18 mm or 20 mm, calibrated, not raw-cut
• Tolerance: ±1 mm maximum, ±0.5 mm if the facade system needs it
• Measurement: thickness recorded at five or more points per slab
• Off-spec rule: slabs outside tolerance are regraded or rejected, not mixed
• Finish: polish or honed spec, no open pinholes or cracks on the face
• Tests: ASTM on the supplied lot
• Selection: dry-lay of commercial faces before loading
• Sizes: stock slab or cut-to-size per drawings, with length and width tolerance stated
• Packing: ISPM-15 crates, A-frames, fumigation certificate
• Inspection: pre-shipment check of thickness, finish, defects, and packing, with the right to reject
• Documents: IEC, invoice trail, packing list tied to slab IDs

That list is how you replace guesswork with a process. Custom product sourcing for cut-to-size treads, vanities, and hotel modules belongs in the same chain. So does private label manufacturing when hospitality or retail needs a unique crate mark, edge profile, or branded packing.

Stone does not forgive weak crates. Packaging for waterway transit should use fumigated ISPM-15 wooden crates and A-frames. The goal is to stop hairline fractures during handling and sea movement. A pre-shipment inspection that never opens a crate is incomplete.

How this sits inside a real India program

Marble is only one SKU in many of the projects you run. The same hotel or retail roll-out that needs calibrated brecciated slabs often needs furniture and textiles from the same supply chain India setup. That is why we treat stone as part of a managed export logistics file, not as a one-off WhatsApp order. A lobby package might pair the marble with a round coffee table, a sheesham indian rosewood wood round coffee table, or a compact wooden foldable side table. Wall programs sit next to that stone, from luxury hanging rugs to traditional wall hanging rugs. One buyer-side office can hold the spec for all of it.

Avoid unverified supplier directories. Avoid middleman price inflation. Avoid uninspected production runs. Avoid lead times that were never real. A factory phone number is not a supply chain. Directory listings and forwarded quotes are how mixed-thickness lots and the wrong cut leave India with your name on the bill of lading.

Supplier verification has to happen before you send a deposit. Sample approval has to sit against a written spec, including the saw type. In-process checks have to record thickness and compare it with the PO. Off-spec material gets regraded or rejected. Loading supervision and document control close the file. That is buyer-side representation in India, not a broker passing a price.

We stay with the lot from the factory audit to the vessel. Global procurement should not be a second job for your project team. You get a dedicated person on the ground, transparent process, and no quiet markup between the plant and your invoice. Wholesale supply and private label runs use the same checks. If the plant switched a brecciated block from thin wire to a gang saw to clear a bottleneck, you want that fact on paper before the crate closes, not after a fabricator in Dallas or Dubai finds the bow.

FAQ

Does a multi-wire saw always mean less kerf loss on brecciated marble?

No. Only thin or ultra-thin wire, generally under 0.50 mm, reaches the 0.5 mm kerf that beats a gang saw. Traditional thick multi-wire can waste more stone than a gang saw. Ask for wire diameter, kerf, and sequential slab photos. Then confirm it on the floor, not on a brochure.

Can a gang saw still make export-grade brecciated slabs?

Yes, if the block is sound, the plant calibrates to ±1 mm, and you accept a lower yield and a longer cycle. Gang saws remain the workhorse for bulk commercial thickness. They are a poor choice when you need 10 mm slabs, tight bookmatch, or maximum square metres from an expensive breccia.

What thickness should I specify for US, UK, and UAE programs?

Calibrated 18 mm or 20 mm is the usual export commercial target. State the tolerance. ±1 mm is a working maximum for most fabricators. ±0.5 mm is worth paying for if the job is facade, large-format floors, or any system that punishes lippage. Raw-cut thickness is not a spec.

How do I prove the plant used thin diamond wire on my blocks?

Name the machine class and wire diameter on the PO. During production, check kerf on the block, count wires on the machine, and match slab sequence to the block ID. Workshop video of the saw, the calibrator, and the measuring points is a reasonable request. If you cannot see the cut, you do not control the yield.

Should I ask for ASTM tests on brecciated marble from India?

If the stone is going into Europe or North America, yes. Ask for tests on the supplied lot. ASTM C503, C170, C97, and C241, plus absorption, give fabricators and specifiers something they can file. A quarry leaflet from a previous season does not replace that.
