## Auditing Vettermann Drum Test Results: Predicting Long-Term Pile Appearance Retention in Commercial Nylon Carpets

If you buy commercial nylon carpet for hotels, offices, or retail floors, appearance retention is not a slogan on a swatch card. It is the difference between a corridor that still looks installed after a year of luggage wheels and a floor that looks crushed, shaded, and cheap. When you run India sourcing for those goods, mill photos will not save you. You need a lab method you can audit, and you need people in the supply chain India who will stop a lot that fails it.

The Vettermann drum is that method. Used well, it ranks how pile surface structure and color hold up under mechanical action. Used poorly, it becomes a PDF nobody reads. This article covers how the test works, what the numbers mean for nylon cut and loop constructions, how lab wear compares with controlled traffic, and how to write the check into private label manufacturing and wholesale supply contracts.

What the drum measures, and what it does not

ASTM D5417, Standard Practice for Operation of the Vettermann Drum Tester, describes the equipment and the operation of the tester for pile yarn floor covering. The practice is built to produce changes in appearance and color that come from changes in surface structure under mechanical action.

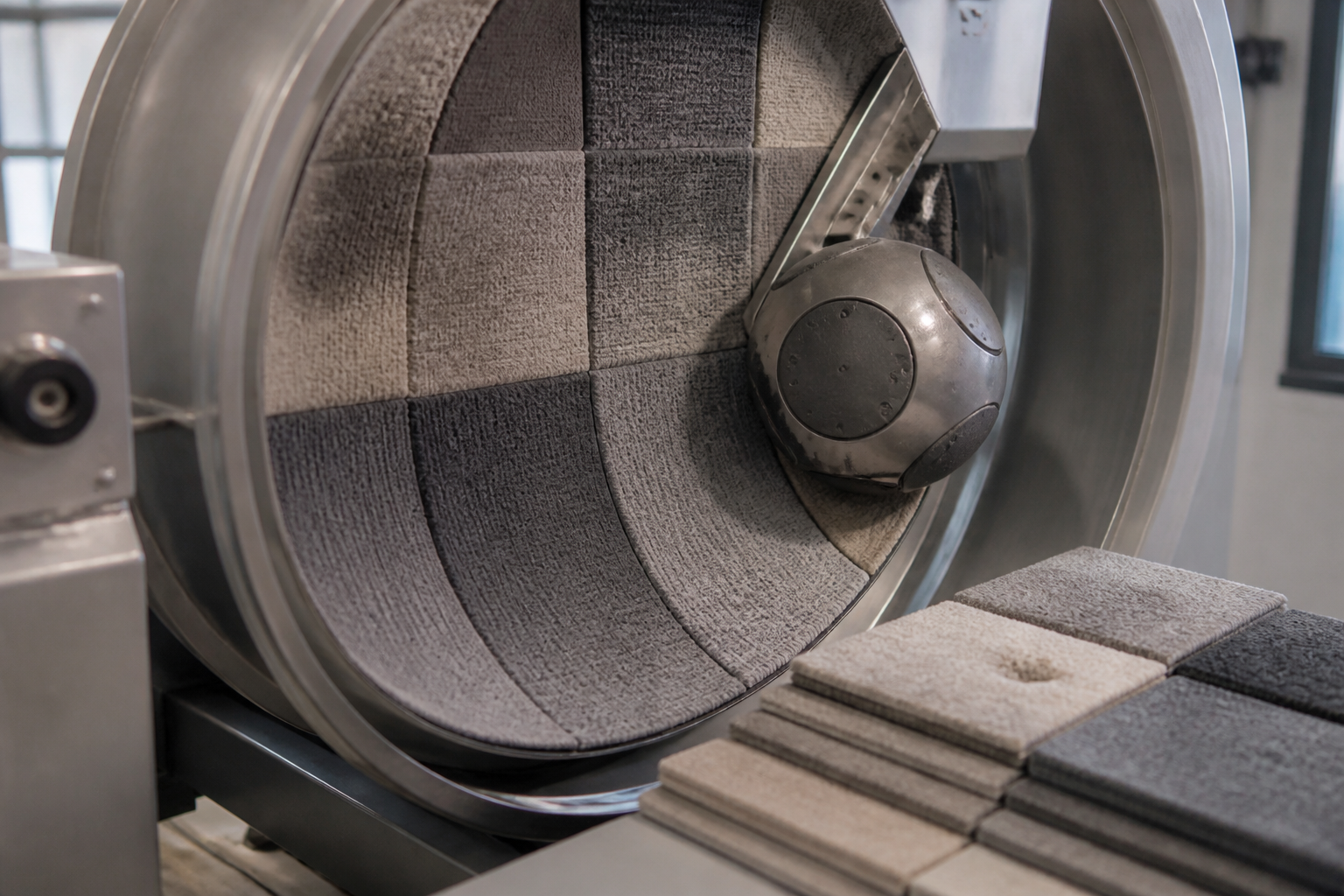

In the lab, carpet specimens line the inside of a rotating metal drum. A weighted steel ball fitted with rubber feet rolls and impacts the pile as the drum turns. That mix of roll and hit is meant to copy some parts of foot traffic, not every part. Independent summaries of ASTM D5417 note that results are typically scored against CRI Appearance Retention Reference Scales and are intended for comparative product evaluation, not a forecast of a named building.

Hold that line. You use the drum to compare constructions, fibers, yarn systems, and pile geometry. You do not use one grade to promise a hotel owner a calendar date when the carpet will look worn.

ISO work sits beside ASTM. ISO 10361 describes procedures that use a Vettermann drum or a hexapod tumbler to produce appearance change (surface structure and color) on textile floor coverings. It does not include pilling or color change from other actions. In Method A, a steel ball with studs rolls randomly inside a rotating drum lined with specimens. After fatiguing, change is assessed to the applicable assessment standard.

ISO 23106:2025 narrows the scope to the Vettermann drum alone. It specifies procedures for producing changes in appearance (surface, structure, and colour) on all types of textile floor coverings, again excluding pilling and colour change from other actions. Assessment still follows the applicable appearance standards.

If a mill hands you a "drum test" with no standard number, you do not have a result. You have a story.

Apparatus values that must appear in the report

ISO 23106:2025 is specific. When you audit a report, look for these figures, not a logo.

A metal Vettermann drum with defined internal dimensions and rotation control. Drum speed (16 ± 1) t/min, with direction reversed every 5 min. A steel ball with 14 replaceable rubber plots. Ball diameter (120 ± 0.2) mm. Mass with plots about 7,600 g. Plots are rubber discs about 40 mm in diameter, with specified thickness and height, and hardness Shore A (48 ± 3) measured to ISO 48-4. Two opposite plots are replaced after each 20,000 tours.

Conditioning and testing atmosphere: (20 ± 2) °C and (65 ± 4) % RH, in line with ISO 139. Specimens selected per ISO 1957. Minimum specimen size 450 mm length by 265 mm width. Specimens cleaned with a vacuum of airflow at least 25 l/s and rested 24 h before evaluation. Edge tape if the sample frays.

Procedure details change outcomes. Tests begin for 300 s ± 30 s in the direction opposite to the pile when that applies. Vacuum extraction removes detached fibers. The nozzle does not contact the wear surface. Intermediate evaluations are allowed if specimens are cleaned and examined properly.

Reporting is not optional. A complete report should include material identification to ISO 2424, number of drum revolutions, any underlay (thibaude) used, vacuum type, median appearance-change value and major observations per ISO 9405, and any deviation from the method.

If those fields are blank, treat the PDF as incomplete. Quality control that cannot show ball mass, plot hardness, and revolution count is not quality control.

Use this as a specification insert:

What nylon commercial pile tends to do in the drum

Commercial nylon is common on contract floors because the fiber recovers from bending better than many alternatives. That does not mean every nylon carpet will look the same after the same number of revolutions. Pile form, pile height, stitch rate, and yarn system change the result.

A study in the Journal of Textile Engineering ran eight commercial tufted floor coverings through the Vettermann drum. Five of those also went through a practical use test to ISO 11377. Seven experts scored appearance. Thickness loss was measured with a WRONZ non-destructive thickness gauge.

Several findings help when you audit nylon results.

First, visual grade and thickness loss were closely related in the drum test. Using a logarithmic formula, the coefficient of agreement was r2 = 0.899. The authors concluded that the Weber-Fechner law could describe the link between what experts see and how much pile thickness is lost. Your eyes do not track thickness on a straight line. Early crushing is more visible than later, smaller losses.

Second, most of the visual drop happened early. Appearance grades fell sharply up to 5,000 revolutions. From 10,000 to 22,000 revolutions, grade change was small. If a mill only shows you a 22,000-revolution photo and hides the 5,000-revolution score, you are looking at the flatter part of the curve.

Third, construction ranked in a way that matches contract practice. Appearance change was larger for wool, then nylon cut pile, then nylon loop pile. Thickness loss followed a similar order: wool cut pile, wool loop pile, nylon cut pile, nylon loop pile. Nylon's elastic recovery and flex fatigue resistance help. Loop pile is generally more durable than cut pile. That is why nylon loop shows up so often in contract corridors.

Fourth, pile geometry can override the fiber name. One nylon cut pile sample lost thickness on par with wool cut pile. It had a high pile thickness on the backing (5.97 mm) and a stitch rate of 49.2 per dm. Tall, relatively open cut pile can crush even when the polymer is nylon. When you compare private label manufacturing quotes, do not stop at "nylon." Ask for pile height, stitch rate, gauge, and whether the face is cut or loop.

Can 5,000 revolutions stand in for long-term traffic?

This is the question buyers actually care about. ASTM practice is comparative. Real buildings add soiling, UV, wheeled traffic, and cleaning chemicals the drum does not fully copy.

The same study still found a tight link between drum wear and a controlled practical use test. Thickness loss and visually assessed grade after 100,000 people in the practical use test correlated strongly with the same measures after 5,000 revolutions in the Vettermann drum. The mean correlation coefficient was rMEAN = 0.950.

That is not a license to print a 10-year warranty from a 5,000-revolution grade. It is evidence that, for the tufted constructions they tested, 5,000 drum revolutions ranked products in a way that matched a 100,000-person walk test. Practical use also produced milder appearance change than the drum, especially on nylon loop.

For you as a specifier, a working rule is:

• Use 5,000 revolutions as a primary appearance screen when you compare commercial nylon candidates.
• Record 10,000 and, if the end use is severe, a higher count, but do not let a late-stage photo hide early crushing.
• Treat drum grades as ranking tools. Confirm cleaning, soiling, and colorfastness with other methods.
• Match the underlay in the test to the underlay you will actually install. ISO 23106 requires you to report any thibaude used. A sample tested on a firm drum wall and then installed over a thick cushion is not the same product.

How to audit a mill's Vettermann pack

When custom product sourcing brings you three nylon options from Indian mills, ask for the raw pack, not a marketing slide. Work through it in this order.

1. Standard cited. ASTM D5417, ISO 10361 Method A, or ISO 23106:2025. Mixed citations without a procedure are a warning.
2. Specimen identity. Lot number, pile yarn, backing, dye lot. ISO 2424 identification. The tested piece must come from the production you are buying, not a showroom leftover.
3. Conditioning. Temperature and humidity in range. A drum run in an unconditioned shed in a North Indian summer is not the same test as ISO 139.
4. Ball and plots. Diameter, mass, plot count, Shore A hardness, plot age. Plots wear. The standard requires replacement of two opposite plots after 20,000 tours for a reason.
5. Revolution count and reversals. Speed (16 ± 1) t/min, reverse every 5 min. Start opposite the pile for 300 s ± 30 s when pile direction applies.
6. Cleaning protocol. Vacuum airflow and no contact with the wear face. Loose fiber sitting on the surface will fool a camera.
7. Assessment method. Who graded it, how many observers, which reference scale (CRI or ISO 9405), median value. A single mill employee with a phone photo is not an assessment standard.
8. Deviations. Any underlay, any pause, any specimen that frayed and was taped. Deviations belong in the report. Hidden deviations belong in your rejection note.

Take thickness as a second channel when you can. Non-destructive pile thickness before and after, reported as percentage loss, [(t0 – t) / t0] x 100, gives you something the eye can miss on patterned or dark goods. The Japanese work showed visual grade and log thickness loss track each other well. If a mill claims a high appearance grade but will not measure thickness, ask why.

Writing the test into India orders without inflating cost

You are buying mid-range commercial carpet, not a museum textile. The goal is a clear pass/fail that protects a hospitality or office floor, not a stack of certificates that add weeks and markups.

Indian mills can produce tufted commercial nylon for export to the US, UK, UAE, and other markets. The usual failure is not that the fiber is missing. The usual failure is that appearance retention is promised in a quote and never measured on the rolls that leave the port. Put the protocol in the purchase order so that gap cannot hide.

• Construction: nylon type, cut or loop, pile height, gauge, stitch rate, total mass.
• Test: ISO 23106 or ASTM D5417, stated revolution counts (for example 5,000 and 10,000), assessment to ISO 9405 or CRI appearance retention scales.
• Sampling: specimens cut per ISO 1957 from production, not from a hand sample.
• Underlay: none, or the same underlay the project will use.
• Acceptance: median appearance grade not worse than X at 5,000 revolutions, thickness loss not above Y %. Set X and Y from a control sample you already approved.
• Timing: test on bulk, not only on the approval sample. Uninspected production runs are how a perfect strike-off becomes a tired corridor.
• Lead time: lab slots and rest times (24 h conditioning) belong in the calendar. Do not accept a ship date that cannot fit conditioning, drum time, and grading.

This is also where supplier verification earns its keep. A mill that "has a drum" is not the same as a mill that can show plot hardness logs and an accredited assessment. If the mill uses an outside lab, you want the lab named, the chain of custody, and the right to witness or to repeat.

Netyex is built for that gap. We are a dedicated sourcing partner in India for international importers, wholesalers, retailers, and brands. We represent you on the ground. We do not hand you a list of factories and wish you luck. Factory audits, in-process checks, and pre-shipment inspection sit in the same workflow as export logistics. That is how you keep middleman price inflation and unverified contacts out of a nylon program that has to pass a drum test.

Where Netyex sits in your carpet program

You get dedicated buyer-side representation. That means we read the Vettermann report against your PO before anyone books a container. If plots were overdue for replacement, if the specimen size is short, if the grade is a single informal photo, the lot does not move.

You get strict quality control at the mill, not after the carpet is on the water. Private label manufacturing, custom colorways, and wholesale supply all go through the same rule: the bulk matches the tested construction.

You get managed export logistics so the tested product is the shipped product. Packing, moisture, roll identity, and documents are coordinated. You are not left matching a lab code to a packing list after the vessel has sailed.

That combination replaces risky, unverified supplier directories. Complete oversight from audit to shipping is the service. The drum test is one tool inside that oversight. It is a sharp tool if someone who works for you knows how to read it.

You are not paying for prestige paper. You are paying to stop a 2,000 square meter hospitality order from looking tired in six months. Transparent process, on-the-ground checks, and no extra markup between you and the mill are how a mid-range program stays honest.

A prediction method you can actually run

You will not get a perfect life-in-years number from a drum. You can still rank long-term pile appearance with more honesty than a brochure.

Step 1. Freeze the construction. Fiber (nylon type), yarn, twist, heat set, pile form, pile height, stitch rate, backing, and any underlay.

Step 2. Run or require Vettermann appearance and thickness at 5,000 revolutions as your ranking point. Add 10,000 if the space is a lobby or airport-style circulation.

Step 3. Convert thickness loss with the percentage formula and compare it with the visual median. If they disagree wildly, the assessment or the thickness method is wrong. Recheck.

Step 4. Use the research pattern as a prior, not as a law. Nylon loop should generally hold appearance better than nylon cut. Tall cut pile can behave worse than the fiber name suggests. Early revolutions explain most of what people will see.

Step 5. Keep soiling, cleaning, and colorfastness on separate tracks. The drum, by design, does not cover pilling or color change from other actions.

Step 6. Repeat on bulk. Prediction fails when the tested piece is not the shipped piece.

Do this inside a documented India sourcing file and you can brief an interior designer or a hotel procurement team without overclaiming.

FAQ

What is the difference between ASTM D5417 and ISO 23106?ASTM D5417 is a standard practice for operating the Vettermann drum on unused pile floor coverings, focused on appearance, texture, and color change from mechanical action. ISO 23106:2025 specifies procedures for producing appearance change with the same family of tester on textile floor coverings, with detailed apparatus, climate, sampling, and reporting rules. You can accept either if the report is complete. You should not mix pieces of both and call it a method.

How many revolutions should I specify for commercial nylon?For ranking appearance retention, 5,000 revolutions is a strong primary point. Research on tufted carpets found that visual change is steepest by then, and that 5,000 revolutions correlated closely with a 100,000-person practical use test. Add a higher count for severe contract areas. Always state the count in the PO.

Does a good drum grade mean the carpet will look new in a hotel after two years?No. The method is comparative. It does not copy soiling, wheeled luggage, UV, or cleaning chemistry. A good grade at 5,000 revolutions, on the correct construction, is evidence that the pile structure should rank well against other candidates. It is not a field life certificate.

Should I test cut pile and loop pile to the same grade?You can use the same method and the same revolution count. You should not expect the same grade. Loop nylon typically retains appearance better than cut nylon. Set acceptance grades by product type and by the control sample you approved, not by a single number for every nylon SKU.

Do I need to test with underlay?Test the way you will install. ISO 23106 requires the report to state any underlay used. If the project uses a specific cushion, name it. If the mill tests without cushion and you install with a thick pad, crushing in the field can diverge from the lab.

Can thickness loss replace expert visual grading?Not by itself. Thickness is a useful, less subjective companion. In the Journal of Textile Engineering work, log-related thickness loss agreed well with expert grades (r2 = 0.899). Use both. Visual grading still captures shading, tuft definition, and color change from surface structure that a single thickness number will miss.

How does Netyex use this in supplier verification?We treat the drum protocol as part of factory and lot acceptance, not as a brochure extra. During supplier verification we confirm that the mill or its lab can run the stated method. During production we check that specimens come from your bulk. Before shipping we match reports to rolls. That sits inside end-to-end India sourcing: quality control, private label manufacturing support, wholesale supply coordination, and export logistics.

What should I refuse on sight?A result with no standard number. A sample with no lot link. A grade based on one informal photo. A ship date that skips the 24 h rest. A construction change after the approval sample. Those are the usual ways an uninspected production run reaches your warehouse.
