Auditing High-Low Pile Shearing: Preventing Uneven Wear in Multi-Level Loop Commercial Broadloom

## Auditing High-Low Pile Shearing: Preventing Uneven Wear in Multi-Level Loop Commercial Broadloom

Multi-level loop broadloom looks forgiving until the first busy month. The high loops take the foot traffic. The low loops sit in the shade of the design. If the shear line wandered by a few millimeters on a finishing line in India, those two heights start to merge in the wear path. The pattern you approved on a sample then looks flat and blotchy on a hotel corridor.

That failure is a shearing problem, not a mystery of use. You can catch it before the container is sealed if you treat pile height, shear evenness, and pattern alignment as measured checks, not as a glance under showroom lights.

This is the audit that belongs in an India sourcing program for commercial broadloom. Lock the height difference, measure it on the floor, and refuse a roll that only "looks close."

What high-low pile shearing is, and what it is not

Pile height is the length of the yarn from the backing to the tip of the fiber. It is not pile density, and it is not the grams of fiber in a square meter. A roll can hit your GSM target and still shear badly. A dense construction can still have a wandering high loop.

High-low, multi-level loop, and tip-sheared loop are related, but they are not the same product.

• Multi-level loop keeps two or more loop heights. Nothing is cut. The texture comes from the height difference alone.
• Tip shearing, sometimes called cut-loop or level-cut loop, runs a blade across the face so the taller loops open into a cut surface while the lower loops stay intact. Light hits cut fiber and loop fiber differently. That is why the pattern reads clearly in a lobby and disappears when the shear is soft.
• Sculptured or high-low sheared faces combine both ideas. The design lives in the contrast. Lose the contrast and you lose the product.

For machine-made goods, uneven pile height usually points to a shearing blade that is dull, set wrong, or fighting inconsistent loom tension. For hand-worked faces it tracks the finisher's hand. tradeaiders.com treats pile evenness as a technical metric of process precision, not a styling preference. That framing belongs in your tech pack.

Volume commercial broadloom is commonly tufted and then sheared. Axminster and other woven constructions still appear in heavy-traffic specs, so do not assume every mill quote is the same machine. For tufted multi-level loop, the blade, the bed plate, and the yarn tension are the variables that move pile height.

Low pile, often at or under 6 mm, is built for heavy commercial traffic. High pile, often above 12 mm, suits lighter use. fabcarpet.com maps that split to construction and traffic class. A multi-level commercial roll sits between those bands on purpose. The low loop should carry the wear. The high loop should carry the design. If shearing leaves the "low" loop almost as tall as the "high" loop in one lane of the roll, that lane will crush first, and the seam beside it will not.

Why uneven shear turns into uneven wear

Wear follows the tallest fiber. In a correct high-low face, abrasion hits the high loops first. The surface then settles toward the low loops, which were specified to survive that traffic. When shear height drifts inside a single roll, you get three problems at once.

Traffic lanes appear early. Guests or staff walk the same path. Where the high pile was left long, it flattens and mats. Where it was cut short, the face already looks worn. Side by side, the roll looks like two different products.

Pattern edges blur. Shearing that wanders around a geometric motif softens the line the designer drew. Buyers often notice this only after several pieces are unrolled together. Pile height variance across a piece, or across pieces in one order, is a defect that shows up at that moment, not in a single hero photo.

Light and color shift. Cut yarn reflects differently from loop yarn. A shear that is deep on the left selvage and shallow on the right makes one side look lighter. Hospitality buyers then reject the installation as a dye fault when the dye lot was fine.

Wool and wool-blend broadloom makes this more visible than many synthetics, because the fiber crushes and recovers in a way the eye reads as shading. Synthetic multi-level loop can hide a bad shear for a few weeks, then show it as matting. Either way, the cost lands on you after installation. A re-roll is no longer a factory argument. It is a rip-out.

Lock the spec before anyone tufts a meter

Do not confirm a high-low program from a render. Screen texture lies. You want a physical reference, often called a golden sample, and three numbers written on it: high-pile height, low-pile height, and the minimum contrast between them.

A practical tolerance used on wool rug inspections is to measure at five or more points and flag anything outside 2 to 3 mm of the agreed specification. A tighter practice, used against an approved golden sample, is plus or minus 1.5 mm. tradeaiders.com cites that band. For multi-level loop, apply the tighter band to the height difference, not only to each level on its own. A 1.5 mm drift on the high loop and a 1.5 mm drift the other way on the low loop can erase 3 mm of contrast. That is enough to kill a subtle geometric and to move wear into one lane.

Write the method into the spec, not just the number.

• Gauge type: a pile height gauge or depth gauge, not a tape held at an angle.
• Points: at least five per roll, including both selvages, the center, and points along the length. On a long broadloom roll, add readings every few meters so a blade that warmed up and dropped is not missed.
• Lighting: raking light across the face, not a straight-on flash. Straight-on photos hide shear steps.
• Both levels: record high and low separately. An average hides the defect you are trying to stop.
• Repeat: for patterned goods, note the pattern repeat and the maximum bow or skew you will accept before seaming becomes a site problem.

Before you confirm any pile-height spec, run three checks: a physical gauge reading against the approved sample, a GSM check on a cut swatch, and a shear-evenness inspection across the full surface, not just the edges. Skipping one of those is how a good sample becomes a bad bulk run. Height drift shows up more often once a factory moves from one sample to a few hundred units. Broadloom is that scale by default.

In a typical export flow, a physical sample often goes out in 5 to 10 days once size, colorway, GSM, and pile height are locked. Bulk production commonly runs 20 to 45 days, depending on pile complexity and volume. Treat those as planning windows from a written process, not as a promise made on a call. If a mill cannot tell you which week the shear line is booked, you do not have a lead time. You have a hope. Misleading lead time promises are how projects miss an opening date.

Private label manufacturing makes the control cleaner. Your label, your height difference, your tolerance. Custom product sourcing is the right lane when the pattern is yours and the construction has to match a hospitality spec, not a catalog leftover.

What to look at on the shearing floor

A factory visit that stops in the showroom will not tell you how the blade behaves at 3 p.m. Walk the finishing area as its own department. Washing, clipping or shearing, binding, stretching, and final inspection are separate operations, and each fails in its own way. easternmills.com makes that distinction. It applies to broadloom mills around Bhadohi, Panipat, and other finishing clusters, not only to hand-knotted sheds.

Ask for a live shear, not a stored roll. Watch the blade height setting, how often the blade is changed, and whether the operator measures after a blade change or simply restarts the line. A dull blade tears fiber instead of cutting it. Torn tips shed, mat, and look gray under lobby light.

Check loom tension records if the mill keeps them. Inconsistent tension feeds the shear a face that is already high on one side. The blade then cuts the high side harder and misses the low side. You cannot shear your way out of a badly tufted roll, but you can stop that roll before latex and secondary backing lock the defect in.

Ask what percentage of pieces fail final inspection and where they go. A mill that says nothing fails is not measuring. You want a reject pile, a rework log, and a written rule for whether a re-sheared roll can ship against your order. Re-shearing a multi-level face often lowers both levels and kills contrast. That roll should not be "made good" and packed under your purchase order.

Traceability is a filing habit. For a given order, can the mill produce the yarn lot, the dye recipe, the machine assignment, and the inspection sheet? If a corridor shades six months later, that file is what separates a real diagnosis from an argument. Supplier verification before the deposit should include this question, not only a capacity claim. The same buyer-side habit is spelled out in how Netyex checks authenticity in supplier products.

While you are there, match the fiber on the line to the fiber in the spec. If the mill spins, you can see raw fiber, carded sliver, and finished yarn on one walk. If it buys yarn, you should see lot labels that match your order, not a mixed store room. Certifications are worth checking by number, issuer, expiry, and scope. A common set in the Indian rug trade includes GoodWeave, Sedex, ISO 9001, RWS, GOTS, GRS, SA8000, and C-TPAT. Scope matters. A certificate on one unit does not cover the unit running your broadloom. easternmills.com is clear on that point.

Mills rarely do every step under one roof. Spinning, dyeing, tufting, and shearing can sit with different units. Read the India textile value chain before you write a spec that assumes a single gate and a single manager. Broadloom is one slice of a much larger export mix, which is why it also helps to know the top textile products exported from India.

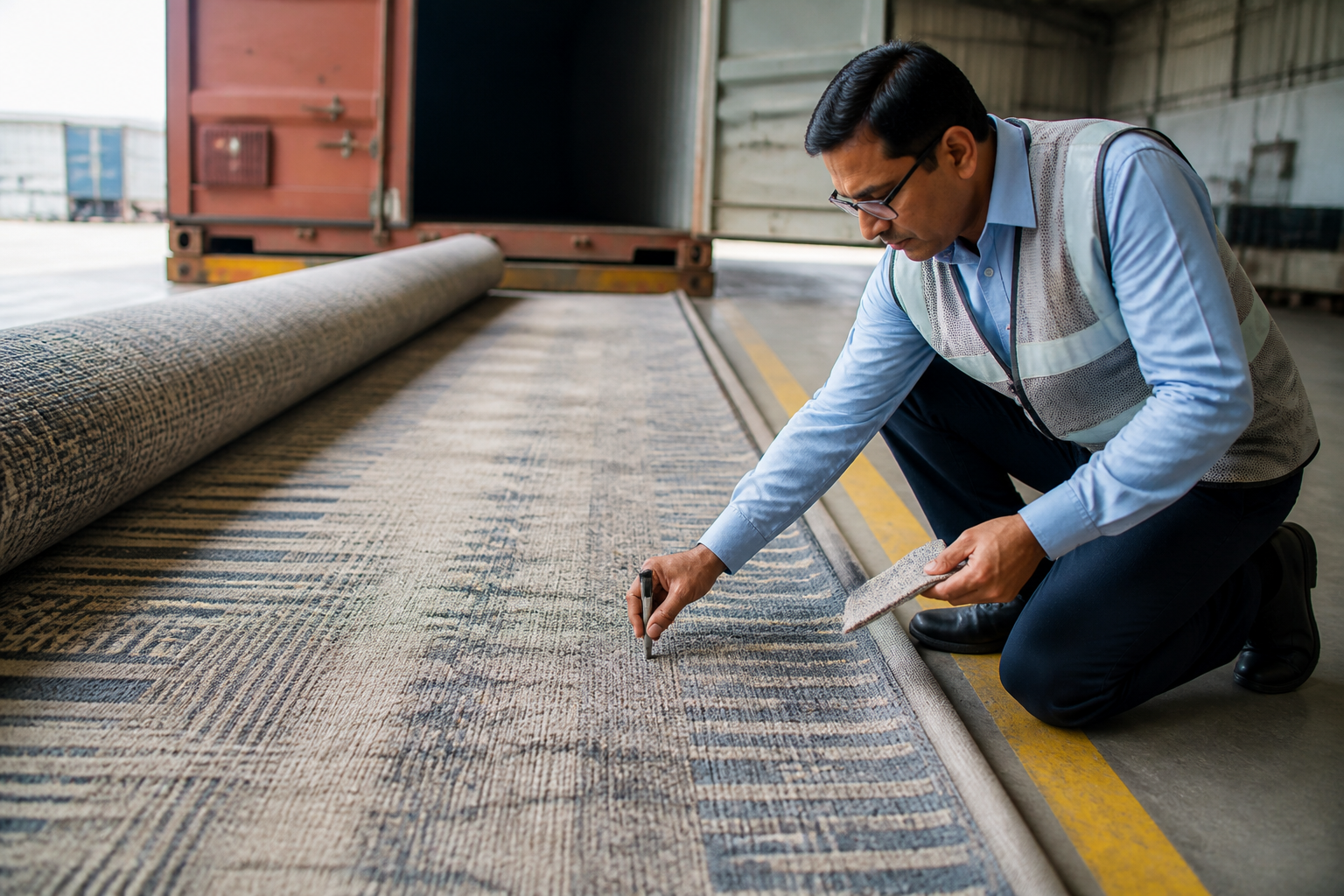

A measurement routine you can hand to an inspector

Give the inspector a sheet, not a vibe. This routine fits commercial broadloom and stays honest.

1. Condition the roll. Let it rest open long enough that packing compression is not what you are measuring. A crushed high loop in the core of a roll will spring back. Measure after that recovery window, and write the wait time on the report.
2. Mark five or more points. Include both edges. On patterned goods, put at least two points on a motif edge, where a soft shear shows first.
3. Measure high pile and low pile at each point with a depth gauge. Record millimeters. Do not average yet.
4. Compare each reading to the golden sample, not to the mill's internal standard. Flag anything outside the tolerance you locked. If you did not lock one, do not accept "industry normal" on the day of inspection.
5. Sweep the full face under raking light. Look for shear lines that run down the length, steps at motif edges, and a wavy cut that follows a tension band.
6. Check pattern alignment across the width and along the length. For geometric work, alignment matters as much as height. Uneven shearing around a design edge creates a blurred, low-quality look even when the tufting underneath is sound.
7. Weigh a cut swatch, or confirm roll weight against the quoted GSM. A lighter face often means less fiber in the high loop, which wears out faster even if the shear looks even today.
8. Tug and brush a cut-pile zone if the construction is tip-sheared. Loose fiber at this stage becomes a guest complaint later.

A short table keeps the fail rules visible on the inspection sheet.

Inspectors should pull rolls at random, photograph the gauge at the point of measurement, and report numbers against the approved sample. A checklist of ticks with no readings is not quality control. A useful during-production visit includes independence from the supplier, photo and video evidence, random sampling, measurable comparison, and findings that say what to correct and by when.

Density and twist, because height alone does not stop wear

A correct shear on a weak yarn still fails in a corridor. For plush and cut faces, buyer thresholds used to limit shedding include a minimum pile density of 280,000 tufts per square meter, or at least 380 GSM for some warp-knitted microfiber constructions, plus a yarn twist of at least 3.5 turns per centimeter, heat-set at 130 degrees Celsius or higher. Constructions under 200,000 tufts per square meter, or below 2.5 turns per centimeter, carry a much higher shedding risk. hileewoo.com sets those figures for plush rugs. Use them as a floor for the cut portion of a tip-sheared broadloom, and ask the mill for the equivalent stitch rate and twist on the loop portion.

Loop pile sheds less than cut pile, but a poorly anchored loop still pulls out at an elevator bank. Ask how the yarn is locked: latex weight, a unitary backing, or a woven secondary. Prod the backing at the edge and, if the spec allows it, in a window sample. Delamination is an uneven-wear problem too. When the secondary lets go, the high loops lean, crush in one direction, and never recover.

Do not let a mill swap a lower-twist yarn to hit a price after you have approved the sample. That swap is a classic path to a cheaper quote that shows up as your warranty claim. Mid-range commercial product wins on a stable spec, not on the cheapest yarn that still tufts. If you are building the landed number for a US, UK, or UAE installer, put inspection and a rework allowance in the quote before you publish it. How to price your products for international markets is the companion note for that math.

When to inspect: loom, mid-run, and pre-shipment

One look at a finished roll is late. Shearing defects are cheapest to stop while the roll is still open on the line.

A workable sequence for supply chain India orders looks like this.

• Before the order: supplier verification. Can this mill tuft the width, run the shear, and export the volume? Ask to see a bulk piece next to the sample it came from, ideally from an order that already shipped. Color drift, pile variance, and size tolerance show up in that comparison.
• Sample approval: the golden sample is the only reference later inspections may use. Approve pile height with a gauge in your hand or in your inspector's hand.
• During production, often around 20 to 30 percent complete: pull work in progress from the line, not from a curated corner. This is where a dull blade or a tension drift first appears. Longer runs justify a second mid-point check.
• Pre-shipment, when 80 to 100 percent of the goods are finished and ready to pack: full review of pile against the sample, shedding, unit weight, edges, and backing. hileewoo.com places pre-shipment inspection at that completion band. It is the last cheap moment to hold a roll.
• Container loading: correct rolls, correct quantities, condition still sound, seal recorded. A clean inspection report does not help if the wrong lot is loaded at a third-party yard.

Hospitality orders benefit from the same three-layer idea. Loom-stage checks cover density and color while correction is still possible. Mid-run sampling compares a finished piece from each new dye lot with the locked swatch under consistent light. An independent pre-shipment inspection then covers pile height, edge finishing, backing, and colorfastness before any roll is packed. Independence matters. The inspector should report to you, not be arranged and paid as a courtesy by the factory being judged.

Uninspected production runs are how uneven wear gets exported. If a contact tells you the mill "always passes" and offers no readings, add a checkpoint. Do not treat the sentence as reassurance.

Payment structure can support the same discipline. Milestone release after sample approval, after the mid-run check, and after pre-shipment keeps the mill interested in a clean shear the first time. Secured trading services are built for that buyer-side control, so you are not wiring the balance against a photo of one pretty corner.

Edges, seams, and the broadloom problems a single rug does not have

Rug inspections talk about binding and pattern alignment on one face. Broadloom adds seam reality. Your installer will join widths. If shear height differs between roll A and roll B, the seam will show as a stripe the day the furniture comes out. Measure across the order, not only inside one roll. The same 2 to 3 mm flag used when buyers unroll several rugs side by side applies here with more force, because the rolls will live next to each other for years.

Check these points before you accept a lot.

• Width stability after stretching. A wavy edge will not seam.
• Pattern bow and skew. A geometric that walks off by the far selvage cannot be hidden in a ballroom.
• Edge finish. On area rugs cut from the same program, binding should be even. On broadloom, the selvage should be straight, and the pile should not be crushed by handling hooks.
• Backing cure. Sticky or under-cured latex picks up dirt in transit and can smear on a light subfloor.
• Roll core and wrapping. High pile crushed against a small core for weeks may not recover evenly. Specify core diameter for taller constructions.

Color shading belongs in the same pass. Inspect under the same light you used for the golden sample. A shear difference and a dye difference can look identical in a warehouse. Separate them with the gauge. If heights match and the shade still shifts, you have a dye or pile-direction issue. If heights do not match, fix the shear conversation first.

Destination rules still apply. Projects in the US, UK, and UAE often ask for fiber content labeling, fire-performance paperwork, and, for wool, a fumigation or treatment certificate depending on the lane. Do not invent a certificate the market does not require, and do not ship without the ones it does. How to ensure compliance when buying Indian products covers the wider compliance habit if your spec also touches chemical or labeling rules beyond the mill floor.

Paper travels with the rolls, not instead of them

Export paperwork that should be ready before the container is sealed typically includes the commercial invoice, packing list, certificate of origin, and any required fumigation certificate for wool. Pair those documents with the physical checks. That order is right. Paper does not rescue a face you never measured.

If the packing list says 12 rolls and the yard has 12, you still need the gauge sheet for each roll number before export logistics takes over. A seal on the wrong lot is just a tidy way to ship the defect. Wholesale supply makes the match harder, not easier. A hotel corridor and a retail floor both join widths. The contrast you locked on the golden sample has to hold from the first roll to the last in the lot.

Close the order on the gauge, not on a photo

Uneven wear in multi-level loop broadloom is usually decided on the shearing line, weeks before a guest walks the corridor. You lock high pile, low pile, and the contrast between them. You measure both levels at several points, under raking light, against the golden sample. You hold density and twist so a correct shear is not sitting on a weak yarn. You inspect during the run and again before packing. You refuse a re-sheared roll that has lost its height difference.

That is the whole job. A showroom glance will not do it, and a directory of factory names will not do it either. Netyex stays on the floor as your buyer-side partner in India: supplier verification before the deposit, quality control while the blade is running, and export coordination so the inspected rolls are the ones that ship. You are not paying a middleman to inflate the quote and hand you an unverified contact. You are paying for readings, a reject rule, and a file you can open six months later.

Questions buyers ask before the shear line runs

Is high-low the same as tip shearing?

No. Multi-level loop keeps every loop intact and gets its texture from height alone. Tip shearing, or level-cut loop, opens the taller loops with a blade and leaves the lower loops looped. A soft or wandering blade hurts both, but it hurts a tip-sheared geometric faster, because cut fiber and loop fiber stop reading as two surfaces.

What tolerance should I write into the spec?

A common flag on wool inspections is anything outside 2 to 3 mm of the agreed height, measured at five or more points. Against a golden sample, plus or minus 1.5 mm is tighter and more useful. Apply that tighter band to the difference between high and low, not only to each level. Two small drifts in opposite directions can erase the contrast the design needs.

Can the roll pass GSM and still be a bad shear?

Yes. Grams per square meter tell you how much fiber is there. They do not tell you whether the blade held a straight line, or whether the high loop and the low loop stayed apart. You need the gauge readings and a full-face look under raking light.

When is it too late to reject a roll?

After installation, a bad shear is a rip-out. The last cheap hold is pre-shipment, when the goods are finished and still unpacked. Better still, catch a dull blade or a tension drift at 20 to 30 percent of the run, while the mill can still correct the line.

Should I trust a mill that says nothing ever fails inspection?

No. A mill that measures has a reject pile, a rework log, and a written rule for whether a re-sheared multi-level roll can ship. Re-shearing often drops both heights and kills contrast. That roll should not be packed against your order. Uninspected production runs are how this defect leaves India.

Who should the inspector report to?

To you. An inspector arranged as a courtesy by the factory being judged is not independent. Random rolls, photos of the gauge at the point of measurement, and numbers against the golden sample are the minimum. If the findings do not say what to correct and by when, you do not have quality control. You have a visit.

Put the audit on the next purchase order

If the next broadloom program is still a render and a verbal lead time, stop there. Send the construction, the golden-sample heights, and the fail rules before anyone tufts a meter. Contact Netyex and we will put on-the-ground quality checks, transparent sourcing, and managed export logistics around that spec, from factory audit to final shipping. Read how we work before you share drawings if you want the buyer-side setup in one place.

A measured shear is cheaper than a corridor that mats in the first busy month. Lock the contrast, inspect the line, and ship only the rolls that still match the sample.
