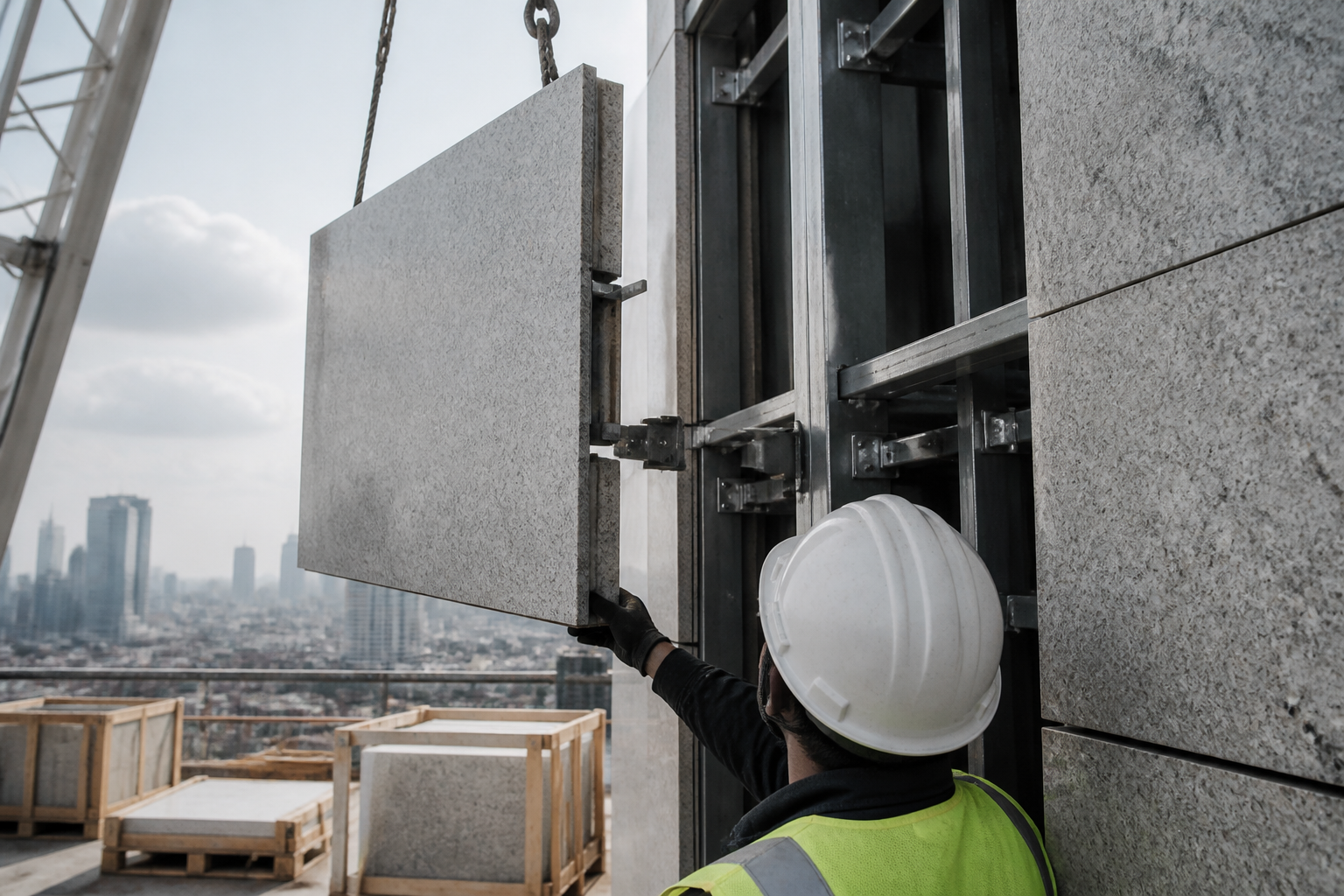

## Anchoring Granite Facade Panels: Engineering Kerf Cuts and Gravity Clips for High Winds

When a granite panel leaves an Indian factory for a tower in Dubai, London, or Houston, the face is what your client photographs. The kerf is what keeps that face on the wall. High wind does not care about colour match. It loads the slot, the clip, and the bolt into the frame. If those three points were not engineered and then checked, you own a cladding risk, not a facade.

India has the quarries and the CNC yards to cut commercial granite at mid-range cost. That only helps you if the groove geometry, the steel, and the crate all match the drawing. This guide covers how kerf cuts and gravity clips actually carry load, what to put in a specification, and how to run India sourcing so panels are inspected before they ship.

The loads that try to take the panel off the building

Natural stone cladding has to resist gravity, wind pressure (positive and negative), and seismic movement. usenaturalstone.org puts it plainly: anything that moves the building can load the stone. Thermal movement sits on top of that. Indian granite is relatively stable, but the metal anchors and the backup wall still expand at different rates, so the joint has to allow movement without loosening the clip.

Every anchor has three load transition points:

• The junction between the stone and the anchor (the kerf, pin, or undercut)
• The anchor body itself
• The connection from the anchor into the building frame

Fail any one of those and the panel is a hazard. The most reliable anchors are usually the simplest. Fewer parts means fewer washers to forget and fewer metal interfaces that can corrode years after handover. Galvanic corrosion is a slow failure mode. It does not show up in a one-day site inspection, which is why steel grade and isolation pads belong on the shop drawing, not in a verbal aside.

A load-bearing clip or shelf angle, where gravity is the main force, is not the same detail as a panel that must also take suction on a tall elevation. Your engineer should size the path from the stone edge all the way back to the structure. The stone yard cannot guess that from a photo of a finished wall.

How a kerf cut works (and why the saw work is structural)

A kerf is a precision slot cut into the edge of the panel, usually along the top and bottom, with a diamond blade on a bridge saw or a CNC. The slot takes either a continuous stainless steel bar or individual clip anchors at set centres. Those bars or clips land on stainless brackets or aluminum rails that carry gravity load into the building. dynamicstonetools.com describes kerf anchors as the most widely used mechanical connection for thin stone cladding in the 20 to 30 mm range, and as standard practice for granite, marble, limestone, and quartzite.

The slot has to match the hardware thickness and sit at a controlled distance from the face. Too narrow and you risk cracking the edge. Too wide and the clip rattles, then dumps load onto a tiny contact line. The cut must be clean, with no crushed stone or micro-fracture at the base of the slot. That base is where stress peaks under wind and self-weight.

Fabricators typically machine one of these prep cuts:

• A hole
• A plunge-cut kerf
• A kerf of a set length
• A continuous kerf along the edge

Which one you use depends on the load path and the panel size, not on what the saw operator did on the last job. For granite wall cladding, many mechanical-fixing briefs call for a minimum 30 mm panel thickness, back-kerf slotting held to plus or minus 0.5 mm, and wind testing against ASTM C1201. smarterstone.com also cites exterior design pressures above 2.5 kPa, and undercut sockets in 30 mm granite expected to hold more than 3.5 kN ultimate tensile load per point. Treat those figures as a starting brief for your engineer, not as a copy-paste capacity for your elevation.

The fixing is mechanical. There is no adhesive holding the panel, and no hardware drilled through the face, so the surface stays clean. That is the point of a concealed kerf system, and it is why architects keep specifying it on commercial work.

Gravity clips and shelf angles

Clip or shelf-angle anchors take dead load on a short, thick L-shaped metal section. The vertical leg is anchored into the building frame. The horizontal leg supports the stone. Shelf angles are often mild steel with a corrosion-resistant coating. Their first job is gravity. For wind in both directions, you add a small clip that enters the kerf. That clip is usually stainless steel, with separators so you do not create a galvanic couple against carbon steel. Heavier stone often gets an extra rebate or a slot in the bottom edge so the joint can still move. usenaturalstone.org covers that family of details well.

You are designing a rainscreen, not a glued tile. Mechanical fixing should transfer dead load and wind load to the substructure without relying on chemical adhesive. Adhesive can be a secondary seal. It is not your structure. If a salesperson offers a thinner panel “because the glue is strong,” you should walk away from that quote.

On new construction, cast-in anchor channels often beat post-installed anchors on load capacity, edge-distance control, and panel alignment speed. On re-cladding and retrofit work, stone undercut anchors are the practical alternative, as okingmetal.com notes. Pick the system from the building condition, not from a catalogue image.

Kerf versus undercut when wind, height, or soffits raise the stakes

A kerf cut system works by cutting a thin, precise groove into the edge during fabrication. A stainless support bracket slots into that groove and locks the panel to the structure. The groove-and-bracket joint handles wind pressure and thermal movement without stressing the face. For standard stone cladding on mid-rise buildings, a well-specified kerf system is usually enough. For heavier panels, high elevations where wind load climbs, or overhead and soffit applications where gravity works against the fixing, undercut systems give a larger safety margin. fixandfinegulf.com lays out that split clearly.

Dense granite performs well with both systems. The edge is strong enough to hold a clean groove without chipping, and the body is dense enough to take a drilled undercut without fracturing around the cavity. Quality control for kerf work is decided at fabrication. Groove depth, width, and position must be consistent across every panel. Variation changes how the bracket seats and how load is shared.

The kerf approach also exists so the facade can stay visually quiet while still meeting static and dynamic rules. vmgroupsrl.com frames that dual requirement: formal purity and structural safety at the same time. Your drawings should show both the architecture and the clip.

What the lab tests actually change in a purchase order

Do not buy facade granite on a colour photo and a generic strength claim. Stone type and kerf geometry change connection capacity.

One published series tested 72 stone panels for kerf failure mode and connection strength. White granite reached about twice the connection strength of golden granite under the same conditions. Increasing the insertion depth of the connector increased strength. Moving the kerf farther from the panel edge, from 70 mm to 90 mm, also increased strength. A 20 mm kerf depth came out stronger than a 30 mm depth under the same setup. The authors still found a gap between the test results and current standard calculations. The paper is available via iopscience.iop.org.

That last point is why you do not copy a typical detail from another job and call it done. Geometry that worked on one granite can be unconservative on another.

Before you sign, demand a technical data sheet for the production lot, not a brochure for the stone name. Two numbers your facade engineer will look for are flexural strength per ASTM C880 and anchor pull-out per ASTM C1354. stonetrades.com treats those as the foundation of engineer sign-off. Finish matters on the wall as well. Honed, flamed, or sandblasted faces hide urban dirt and cut sun glare better than a polish on an exterior elevation.

Natural granite’s linear thermal expansion is around 7.0 x 10^-6 per °C, which keeps joint stress modest across swings from about -30°C to +60°C. That stability is one reason granite remains a long-life, mid-range cladding rather than a short fashion cycle.

Backup wall stiffness is a hidden risk. Governing deflection limits for walls supporting stone veneer are often L/600 or 1/4 inch maximum, whichever is less. If a steel stud wall flexes more than the stone can follow, the kerf sees cyclic load the panel calculation never showed. modernbuildingenvelope.com flags that miss. Coordinate the stone engineer with the backup designer early, or you will argue about cracked edges after the scaffold comes down.

Fabrication quality: the millimetre that decides whether the clip works

Kerf quality is made in the factory, not on the scaffold. A slot that is slightly off face dimension, or a hairline crack at the base, is a structural defect even if the polish looks perfect.

Use a table like this in your inspection plan:

Those dimensional and packing figures align with export-grade granite practice described by smarterstone.com. Dry-lay and vein matching for feature walls should be photographed in the factory before packing. Colour sorting is not cosmetic on a facade. A shade jump reads as a defect from the street.

Prohibit casual site cutting of kerfs. Make-up pieces happen, but they need the same slot geometry and the same inspection, or you have introduced the weakest panel on the elevation.

Indian production belts in Rajasthan, Karnataka, Andhra Pradesh, and Tamil Nadu can hold these tolerances when the yard is set up for cut-to-size facade work. Many yards are set up for slabs and kitchen jobs. Those are not the same skill. Your supplier verification has to separate the two.

Sourcing facade granite from India without gambling on the crate

India can supply colour range, volume, and CNC capacity at a mid-range price. What importers often lack is a person on the floor who works for you, not for the factory. Unverified supplier lists, middleman price inflation, uninspected production runs, and optimistic lead times are how a clean drawing turns into a dispute at the port.

Netyex is a dedicated sourcing partner in India. You get buyer-side representation: factory audits, supplier verification, in-process quality control, and managed export logistics. We stay on the ground through cutting, kerf work, dry-lay, and crating. You are not buying a crate full of surprises, and you are not paying a chain of unnamed workshops to mark their own homework.

If you need private label manufacturing, we run custom product sourcing against your drawings, stone codes, finishes, and anchor details. If you need wholesale supply, we coordinate bulk lots with the same inspection standard. The supply chain India side is ours to manage, from the audit to final shipping, so global procurement stays predictable for you.

That same oversight is useful when a hospitality or retail project mixes facade granite with interior stone and fittings. Start with granite and marble, then keep colour standards consistent across home decor and wall decor packages. For related stone pieces and installer accessories, we can fold in marble handicrafts and tools and hardware under the same verification rules. Keep the facade spec as the driver. Everything else follows.

Mid-range here means you pay for inspected granite and a clean load path, not for a luxury stamp and not for the cheapest uncut crate in the yard.

Spec notes you can drop into a tender

• Mechanical fixing only for exterior granite. Adhesive is not the structure.
• State kerf type, width, depth, edge distance, and clip centres on the shop drawings.
• Call stainless steel at the stone interface. Isolate carbon steel shelf angles.
• Require ASTM C880 and ASTM C1354 data for the production lot, plus wind testing per ASTM C1201 where the engineer asks for it.
• Match panel thickness to the fixing system. Do not assume 20 mm is interchangeable with 30 mm.
• Require a dimensional report per crate, not a single sample slab.
• Number panels to the elevation drawings before packing.
• Pack to export standard with foam, proper crates, and ISPM 15 timber.

If your installer needs a reminder on slot risk, dynamicstonetools.com is blunt: a kerf that is too narrow risks cracking the panel edge, and a kerf that is too wide lets the hardware move. That is a factory control item. Write it into the PO.

FAQ

How thick should granite facade panels be for kerf anchors?

Many commercial mechanical-fixing standards start at 30 mm for granite. Some thin-stone kerf systems are used in the 20 to 30 mm range. Thickness is a structural decision. Do not go thinner because a sample looked fine on a table.

Can kerf clips handle high-rise wind?

They can if your engineer sizes them for wind climate, panel size, edge distance, and backup stiffness. High elevations, heavy panels, and soffits often move to undercut anchors or a mixed system. Kerf remains common on mid-rise work and on granite with a strong, uncracked edge.

What documents should you collect before you pay a deposit?

Lot-specific technical data, flexural strength (ASTM C880), anchor pull-out (ASTM C1354), kerf drawings, steel grades, a factory audit, and a written inspection plan. Skip generic catalogues and skip any supplier who will not let you check production.

Why does galvanic corrosion matter on a stone job?

A stainless clip tight against uncoated carbon steel in a wet cavity will corrode. Years later the stone is still sound and the metal is not. Specify isolators and coatings, then confirm them during quality control, not after installation.

How do you keep Indian production on drawing?

You put a buyer-side team in the yard. Supplier verification, in-process checks on kerf geometry, dry-lay photos, and crate inspection have to happen before the container is sealed. That is the difference between a managed export and a hopeful one.

Can you private-label granite panels to our brand and details?

Yes. Private label manufacturing and custom product sourcing are part of how we work, including cut-to-size, finish, kerf geometry, packing marks, and wholesale supply into the US, UK, UAE, and other markets.
